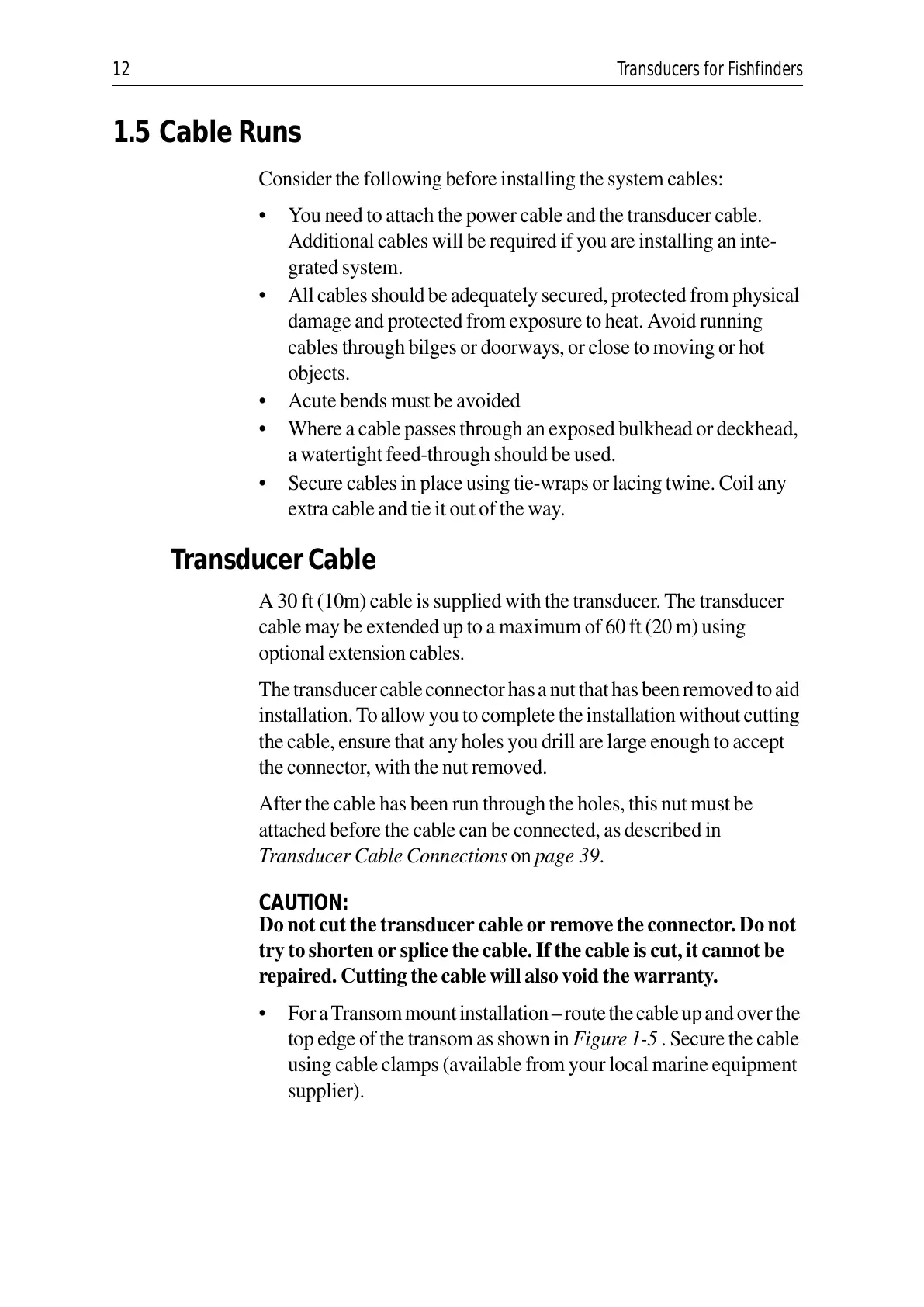

12 Transducers for Fishfinders
1.5 Cable Runs
Consider the following before installing the system cables:
• You need to attach the power cable and the transducer cable.
Additional cables will be required if you are installing an inte-
grated system.
• Allcables shouldbe adequately secured,protected from physical
damage and protected from exposure to heat. Avoid running
cables through bilges or doorways, or close to moving or hot
objects.
• Acute bends must be avoided
• Where a cable passes through anexposed bulkhead or deckhead,
a watertightfeed-through should be used.
• Secure cables in place using tie-wraps or lacing twine. Coil any
extra cable and tie it out of the way.
Transducer Cable
A 30 ft (10m) cable is supplied with the transducer. The transducer
cablemaybeextendeduptoamaximumof60ft(20m)using
optionalextension cables.
Thetransducercableconnectorhasanutthathasbeenremovedtoaid
installation. To allow you to complete theinstallation without cutting
the cable, ensure that any holes youdrill are large enough to accept
the connector, withthe nut removed.
Afterthe cable has been run through the holes, thisnut mustbe
attached before the cable can be connected, as described in
Transducer Cable Connections on page 39.
CAUTION:
Do not cut thetransducer cable or removethe connector. Do not
try to shorten or splice the cable. If the cable is cut, itcannot be
repaired.Cutting the cable willalso void the warranty.
• ForaTransommountinstallation–routethecableupandoverthe
top edge of the transom as shown in Figure 1-5 . Secure the cable
using cable clamps (available from your local marine equipment
supplier).
