Chapter 2: Installation 39
2.4 Transducer Cable Connections
The transducer cable connector (and Y-connector, if supplied) has a
nut that has been removed to aid installation. To allow you to
complete the installation withoutcutting the cable, ensure that any
holes you drillare large enough to accept the connector, with the nut
removed (approximately 13/16" or 21mm).
Before attaching the transducer cable, you will need to attach the
connectornut and splitring. These items, plus a wedgetool,are
included in the transducer packaging.

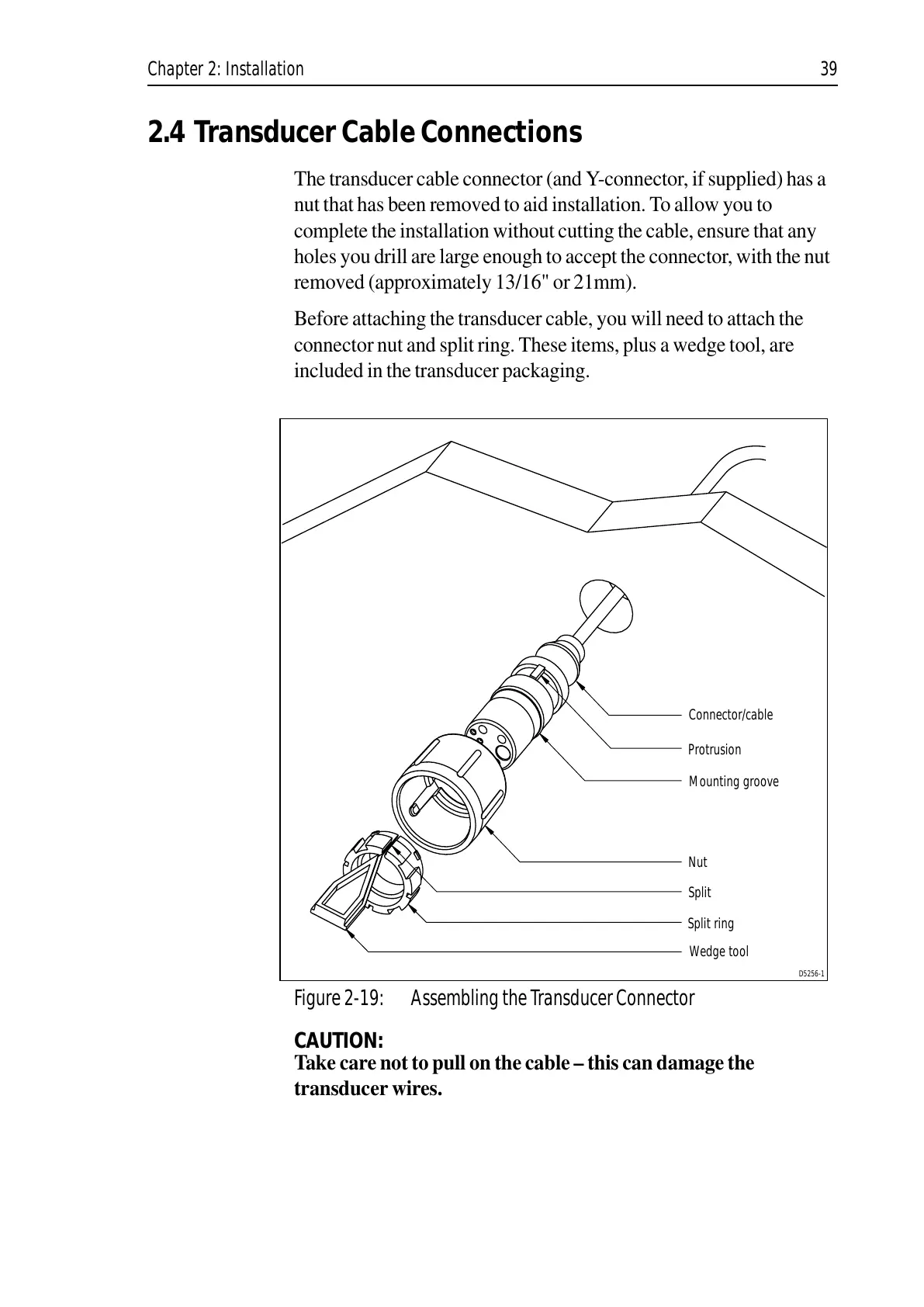

Figure 2-19: Assembling the Transducer Connector
CAUTION:
Takecare nottopull on the cable– this can damagethe
transducer wires.
Connector/cable
Split
Nut
Split ring
Wedge tool
Protrusion
Mounting groove
D5256-1
