Chapter 2: Installation 23

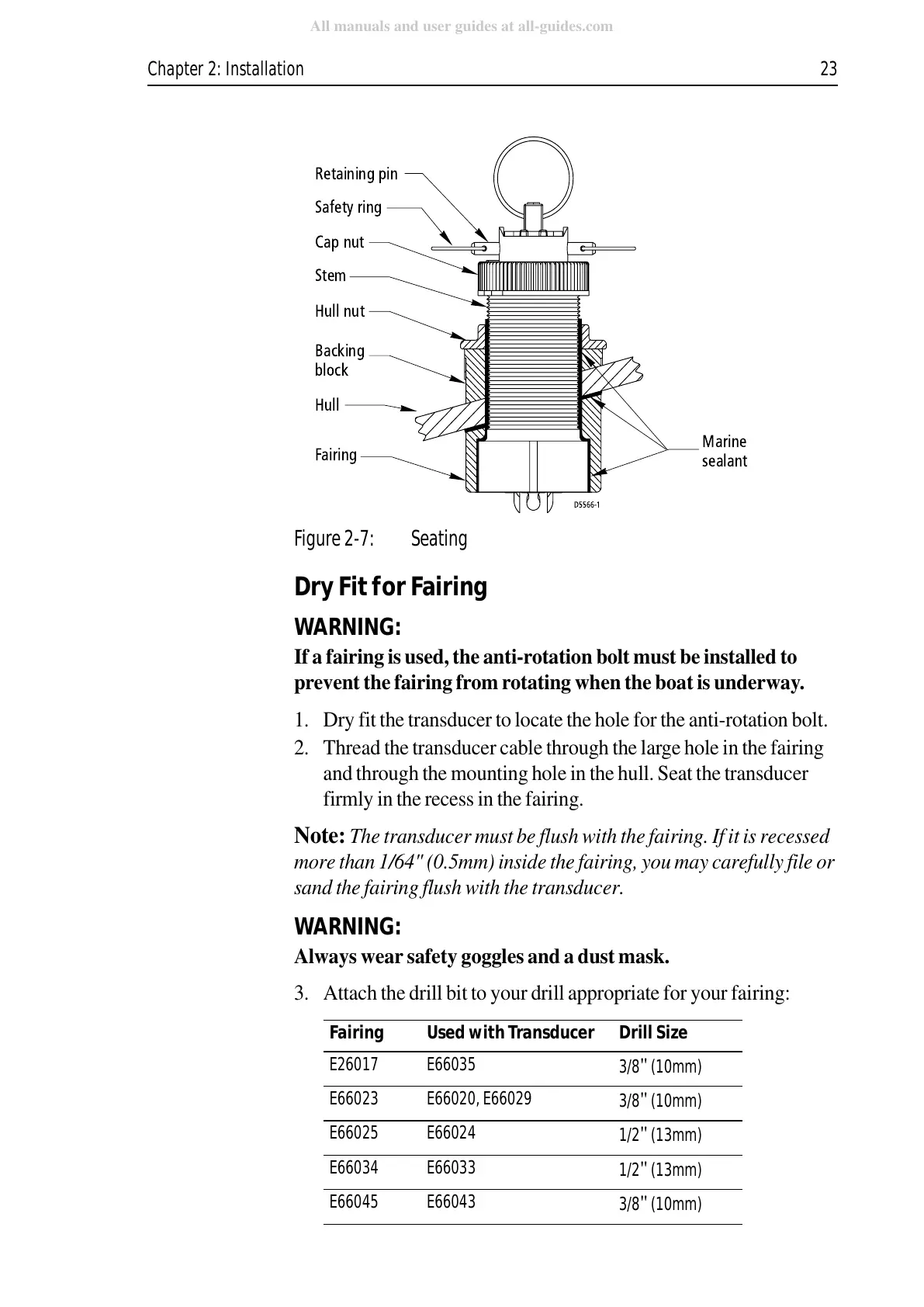

Figure 2-7: Seating
Dry Fit for Fairing
WARNING:
Ifa fairing is used, the anti-rotation bolt must be installedto
prevent the fairingfromrotating whenthe boat is underway.
1. Dry fit the transducer to locate the hole for the anti-rotation bolt.
2. Thread the transducer cable through thelarge hole in the fairing
and through the mounting hole in the hull. Seat the transducer
firmly in the recess in the fairing.
Note: The transducer must be flush with the fairing. If it is recessed
more than 1/64" (0.5mm) inside the fairing, you may carefully file or
sand the fairing flush with the transducer.
WARNING:
Always wearsafety gogglesanda dust mask.
3. Attach the drill bit to your drillappropriate for your fairing:
Fairing Used with Transducer Drill Size
E26017 E66035
3/8" (10mm)
E66023 E66020, E66029
3/8" (10mm)
E66025 E66024
1/2" (13mm)
E66034 E66033
1/2" (13mm)
E66045 E66043
3/8" (10mm)
Marine
sealant
Retaining pin
Safety ring
Cap nut
Stem
Hull nut
Backing
block
Hull
Fairing
D5566-1
