Raypak 240692 User Manual

WATER TEMPERATURE SENSOR INSTALLATION
HYDRONIC INSTALLATIONS

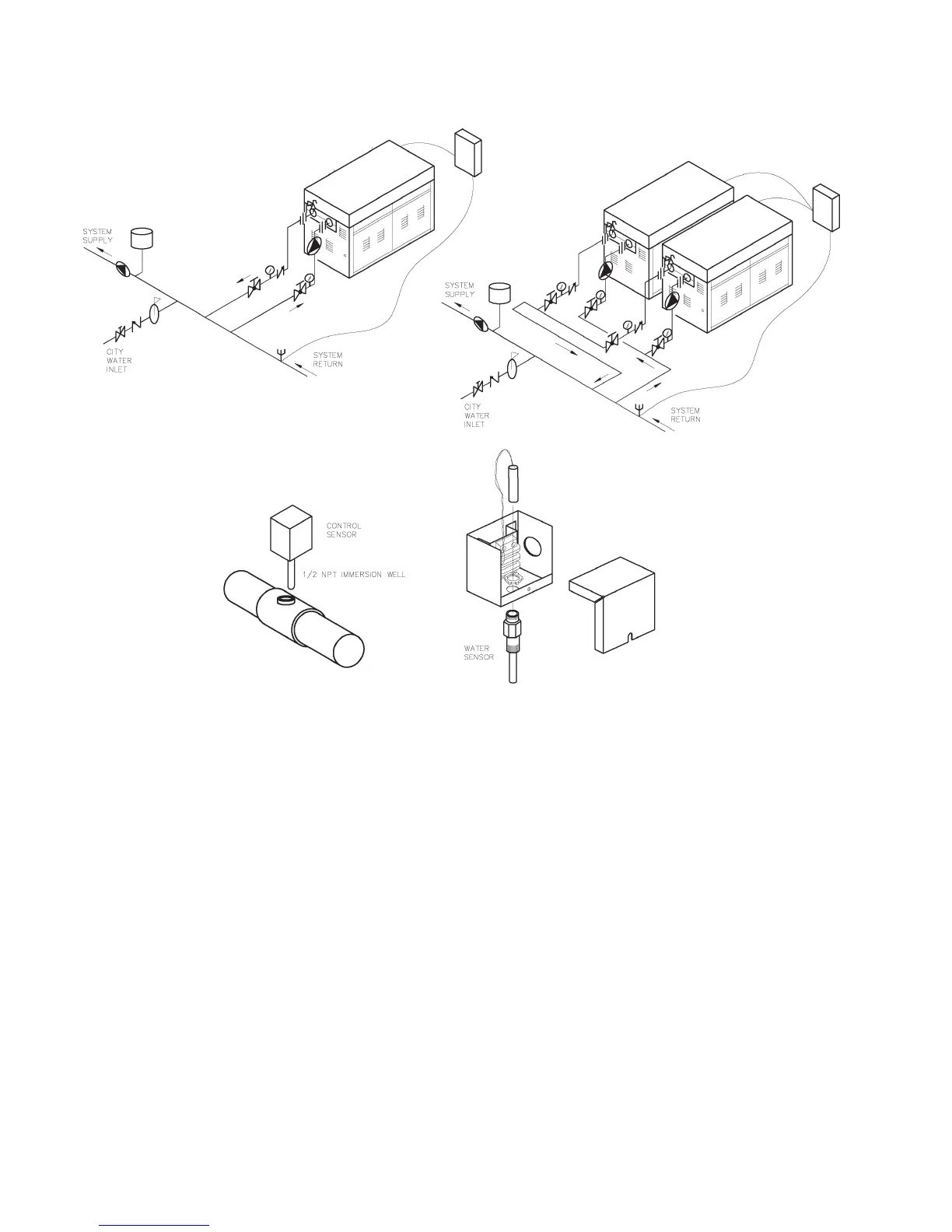

Fig. #9496
TYPICAL WATER SENSOR
• The water sensor should be installed in the system supply.
• Locate the water temperature sensor in the system piping just prior to the first boiler connections, on the
upstream side of the System Supply Loop.
• Cable length must not exceed 300 feet.
• Install in shielded conduit with no other wiring.
• Observe wire colors.
10
