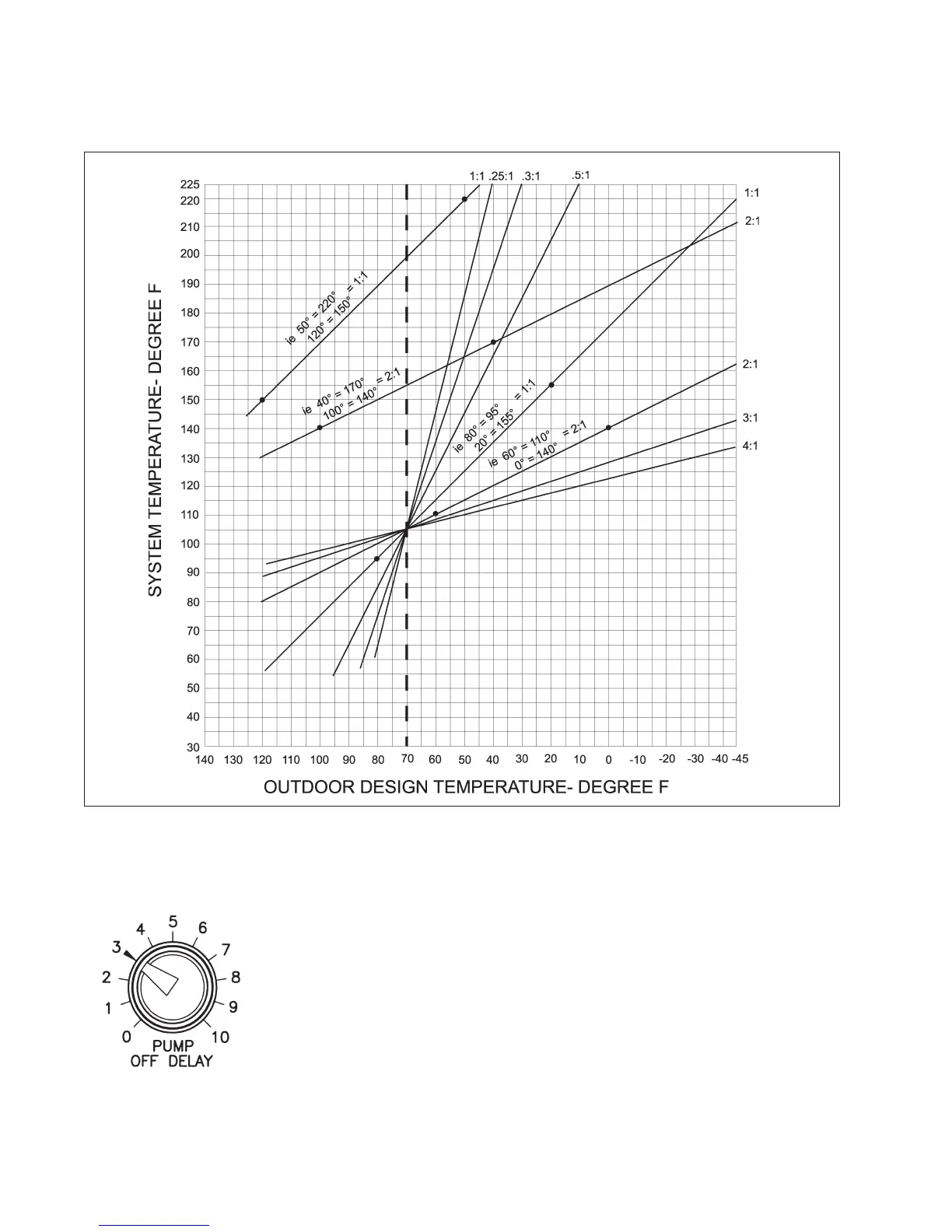

RESET RA
TIO CHAR
T
20
PUMP
TURN-OFF
DELA
Y
The Pump T
urnoff Delay works in conjunction with the Outdoor Cutoff
T
emperature.
The Pump T
urnoff Delay sets the delay between the time when the Outdoor Cutof
f
T
emperature is reached and the time when the pump is turned off.
The Pump T
urnoff Delay is adjustable from 0 to 10 min.
Recommended Initial Setting for Pump Off Delay is 3 min
19
21
Table of Contents
Default Chapter
3
Table of Contents
3
Contents
4
Basics
4
Important Safety Instructions
4
Introduction
5
Concept of Operation
5
Optional Configurations
5
Control Features
6
Installation and Mounting
7
Mechanical Installation
7
Electrical Installation
7
Wiring: Power to Controller
8
Air Temperature Sensor
9
Water Temperature Sensor Installation
10
Hydronic Installations
10
Domestic Hot Water Installations
11
Pool Heating Installations
12
Field Wiring
13
Power Test
14
Control Familiarization
15
Sequence of Operation
16
Manual Override
16
Indicator Lights
18
Control Functions
19
Reset Ratio Chart
19
Reset Ratio Chart
20
Circuit Board
23
Interior Jumper & Switches
24
Optional Controls
26
Replacement Parts List
27
System Start-Up Settings
28
Troubleshooting Guide
29
Warranty
30
