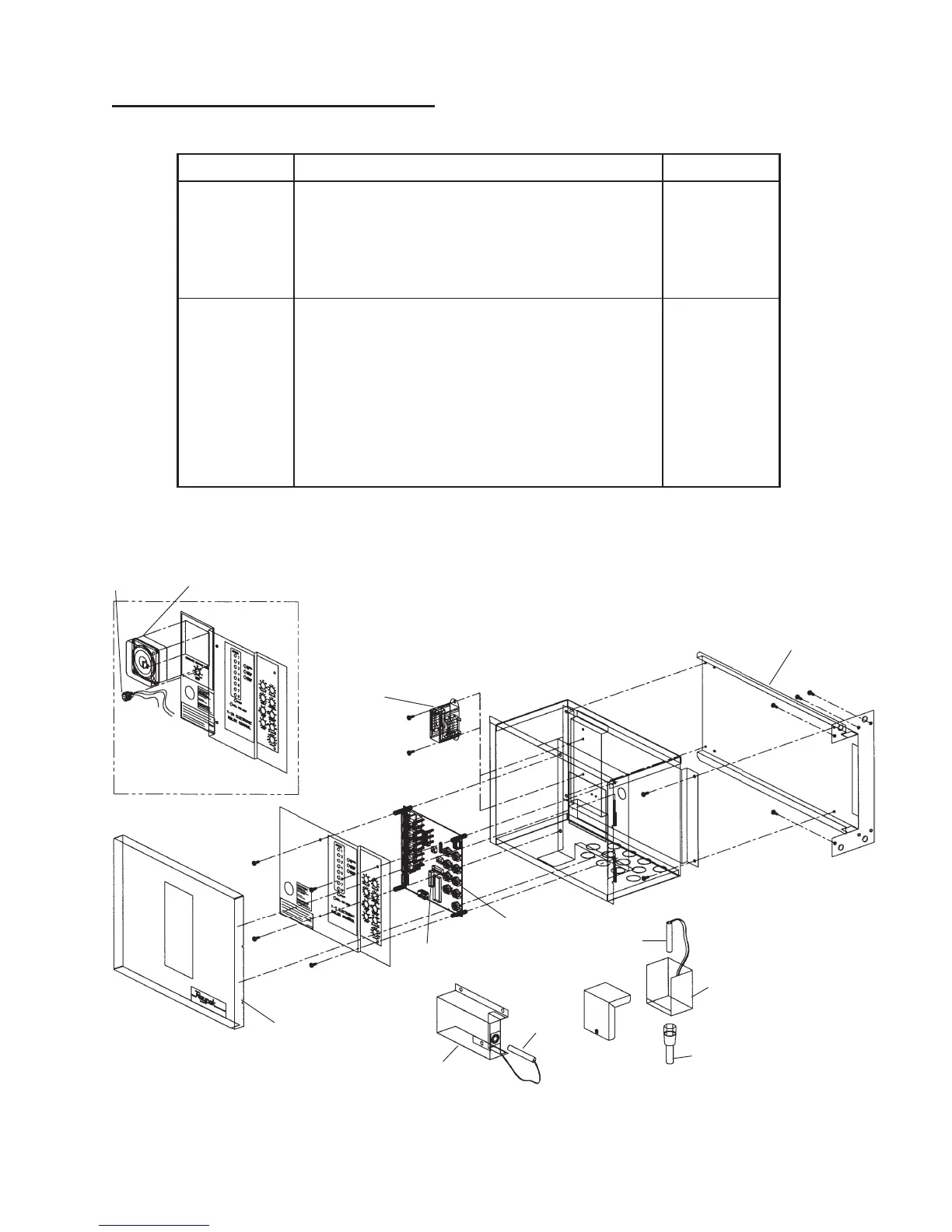

3-C
1-C
2-C
1-S
5-S
4-S
6-S
3-S
5-S
2-S
2-N
1-N
27
CALL OUT
1-C
2-C
3-C
1-S
2-S
3-S
4-S
5-S
6-S
1-N
2-N
DESCRIPTION
PC Board Standard
PC Board w/ Night Set Back
Programmed Eprom
Programmed Eprom W/ Night Set Back
T
ransformer
Door w/Window
Side Mount Bracket
Air T
emperature Sensor Complete
W
ater T
emperature Sensor Complete
Air/W
ater T
emperature Sensor
Well Assembly
T
imer
Alternate Setpoint
Adjustment
P
ART NO
006039F
006034F
005764F
006031F
005657F
N/A
005654F
005700F
005701F
005299B
004821F
006033F
006032F
REPLACEMENT
P
AR
TS LIST
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
Contents
4
Basics
4
Important Safety Instructions
4
Introduction
5
Concept of Operation
5
Optional Configurations
5
Control Features
6
Installation and Mounting
7
Mechanical Installation
7
Electrical Installation
7
Wiring: Power to Controller
8
Air Temperature Sensor
9
Water Temperature Sensor Installation
10
Hydronic Installations
10
Domestic Hot Water Installations
11
Pool Heating Installations
12
Field Wiring
13
Power Test
14
Control Familiarization
15
Sequence of Operation
16
Manual Override
16
Indicator Lights
18
Control Functions
19
Reset Ratio Chart
19
Reset Ratio Chart
20
Circuit Board
23
Interior Jumper & Switches
24
Optional Controls
26
Replacement Parts List
27
System Start-Up Settings
28
Troubleshooting Guide
29
Warranty
30
