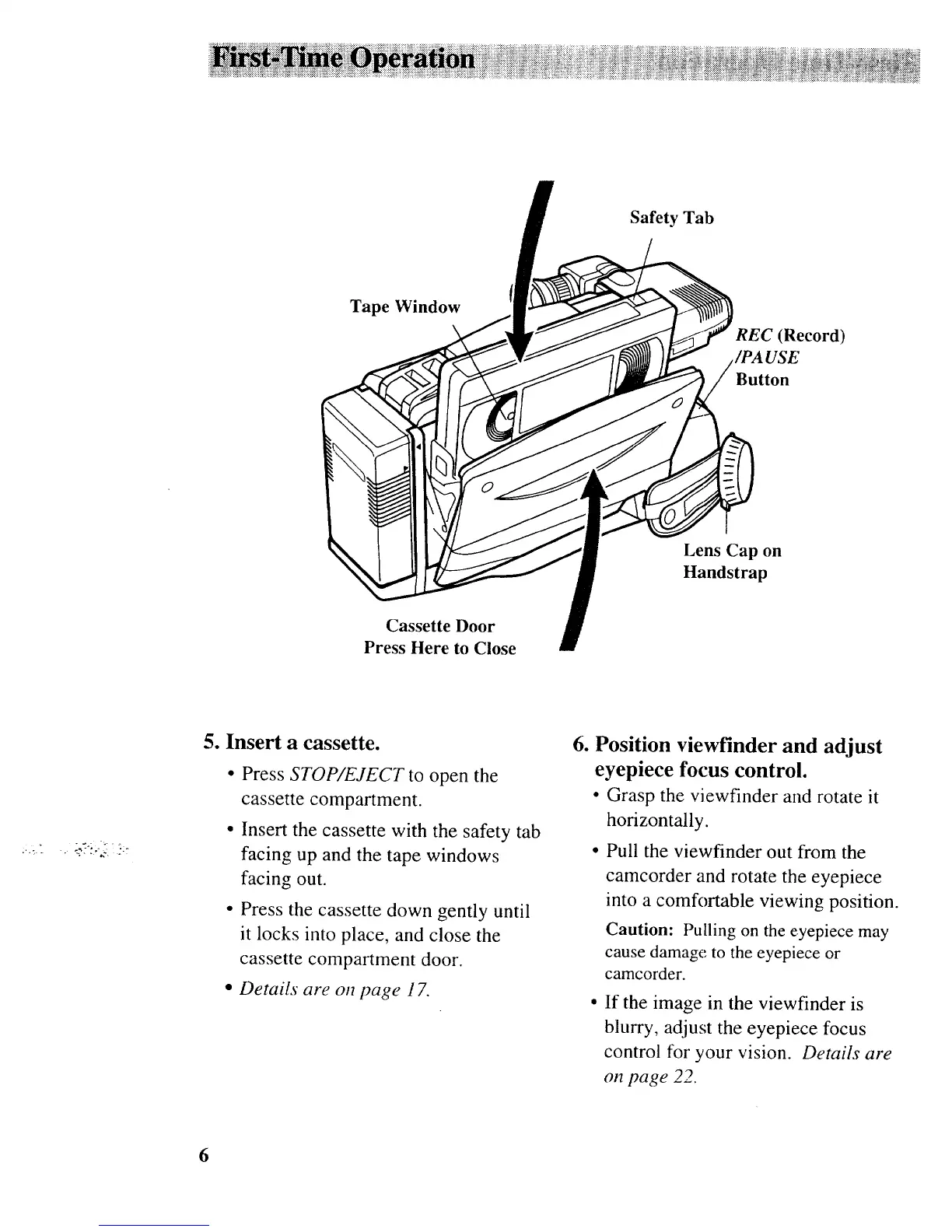

Safety Tab
Tape Window
REC (Record)
/PAUSE
Button
Lens Cap on
Handstrap
Cassette Door
Press Here to Close
5. Insert a cassette.
• Press STOP/EJECT to open the
cassette compartment.
• Insert the cassette with the safety tab
facing up and the tape windows
facing out.
• Press the cassette down gently until
it locks into place, and close the
cassette compartment door.
• Details are on page 1Z
6. Position viewfinder and adjust
eyepiece focus control.
• Grasp the viewfinder and rotate it
horizontally.
Pull the viewfinder out from the
camcorder and rotate the eyepiece
into a comfortable viewing position.
Caution: Pulling on the eyepiece may
cause damage, to the eyepiece or
camcorder.
If the image in the viewfinder is
blurry, adjust the eyepiece focus
control for your vision. Details are
on page 22.
6
