24
Home Antenna Connections

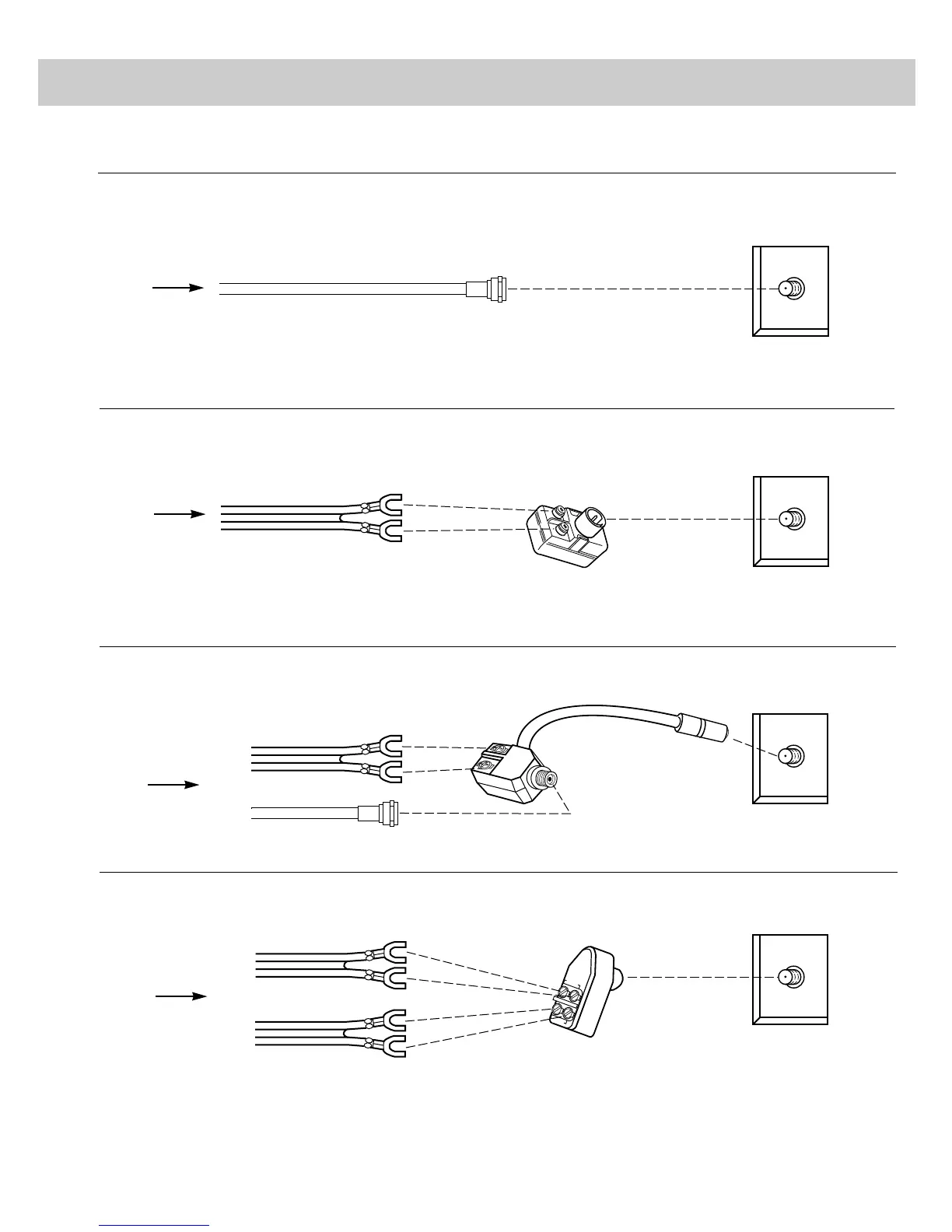

If the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Follow one of the steps below to connect an indoor or outdoor antenna to your TV (only if you do not have a
cable-TV system).
A
Incoming
Cable
From
Home
Antenna
VHF or UHF Only
or
VHF/UHF Combination
BACK
OF TV
If the antenna cable coming from your home antenna is a 300-ohm flat twin lead that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
B
Antenna Adapter*
(such as RCA # 193983)
BACK
OF TV
Incoming
Cable
From
Home
Antenna
VHF or UHF Only
or
VHF/UHF Combination
Push on
Push on
If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
If the antenna wires coming from your home antenna(s) are two 300-ohm flat twin-lead cables as shown here, connect them
to your set like this:
C
D
–OR–
–OR–
–OR–
UHF
and
VHF
Antenna Mixer*
(such as RCA #197551)
BACK
OF TV
BACK
OF TV
Incoming
Cables
From
Home
Antenna(s)
Incoming
Cables
From
Home
Antenna(s)
Push on
Antenna Mixer*
(such as RCA #193984)
Note: Be sure to connect the UHF antenna cable to the UHF screws on the Antenna
Mixer and the VHF antenna cable to the screws marked VHF.
* Optional accessories are available from most dealers or electronics supply stores.
UHF
and
VHF
To Next Page
