RCA RS2657 User Manual

Unpacking the system
You should have the following:
• one main unit (with 2 main speakers and a
subwoofer);
• one remote control;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet;
• Owner registration Card.

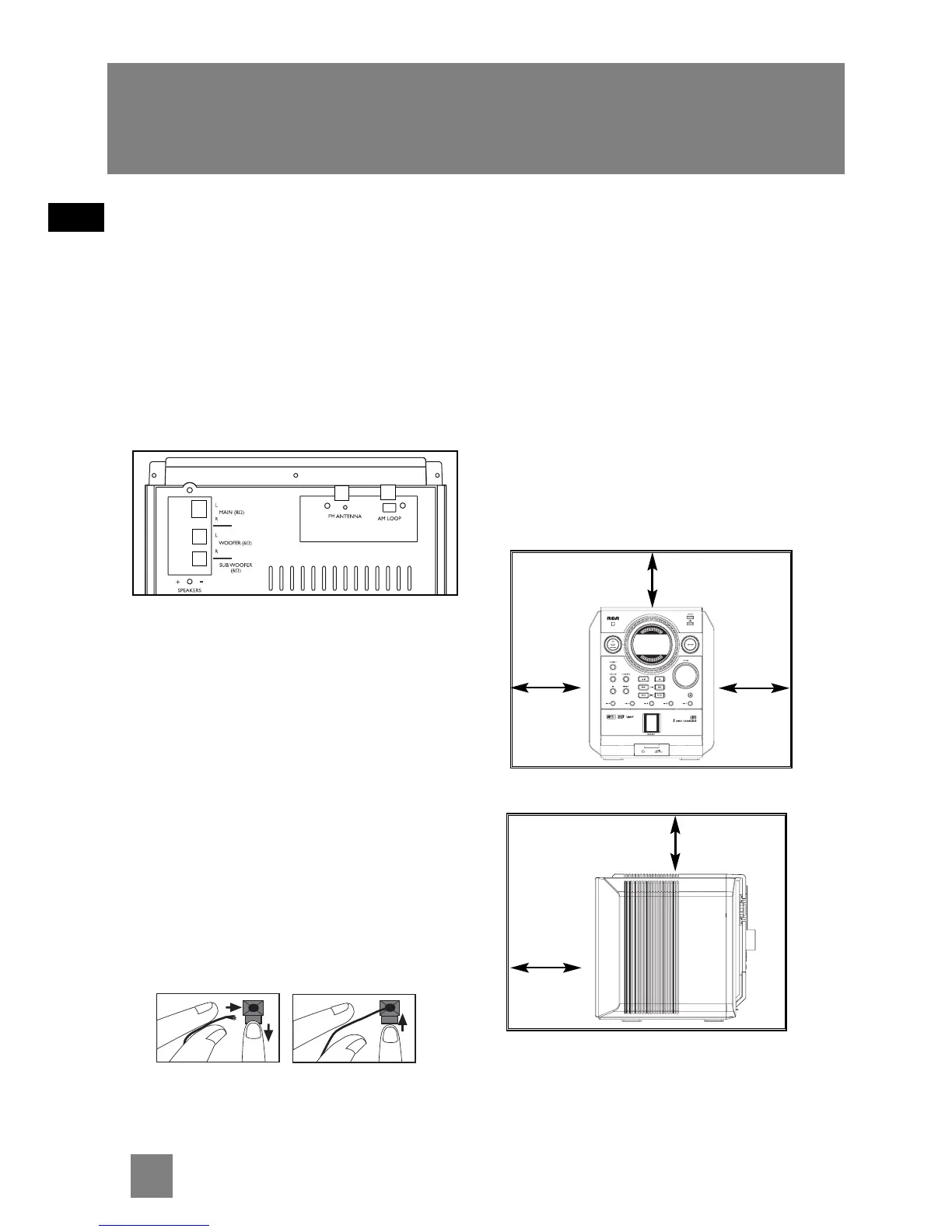

Back View
1. Main speaker jacks (high pass)
2. Woofer jacks (low pass)
3. Subwoofer jacks
4. FM pigtail antenna
5. AM loop antenna jack
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Uncoil the FM antenna at
the back of the unit, making sure it is fully
extended (you may even want to tape it to the
wall behind the unit if possible, the higher the
better.) You’ll also need to connect the AM
antenna loop to the back of the unit if you listen
to AM stations. Rotate the AM loop antenna for
better reception.
Connecting the Main Speakers
Each speaker has a black/red wire and a
black/purple wire. When connecting the speakers,
match the red/purple wires to the red/purple
jacks and the black wires to the black jacks on the
main unit.
Subwoofer Connection
Connect the green wire on your subwoofer to the
green terminal and the black wire to the black
terminal of the Subwoofer jack.
Installation
To ensure sufficient ventilation, keep the
minimum spacings shown below free from other
surfaces:
2
EN
Getting Started
M
U
L
T
I
F
U
N
C
T
I
O
N
D
I
S
P
L
A
Y
4 inches
4 inches
4 inches
Front View
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the
speaker wires at all connection
points.
Speaker
Wire Connection
Push speaker terminal tab
down to insert wire.
Side View
2 inches
4 inches
1
2
4
5
3

RCA RS2657 Specifications

General

Brand	RCA
Model	RS2657
Category	Stereo System
Language	English
