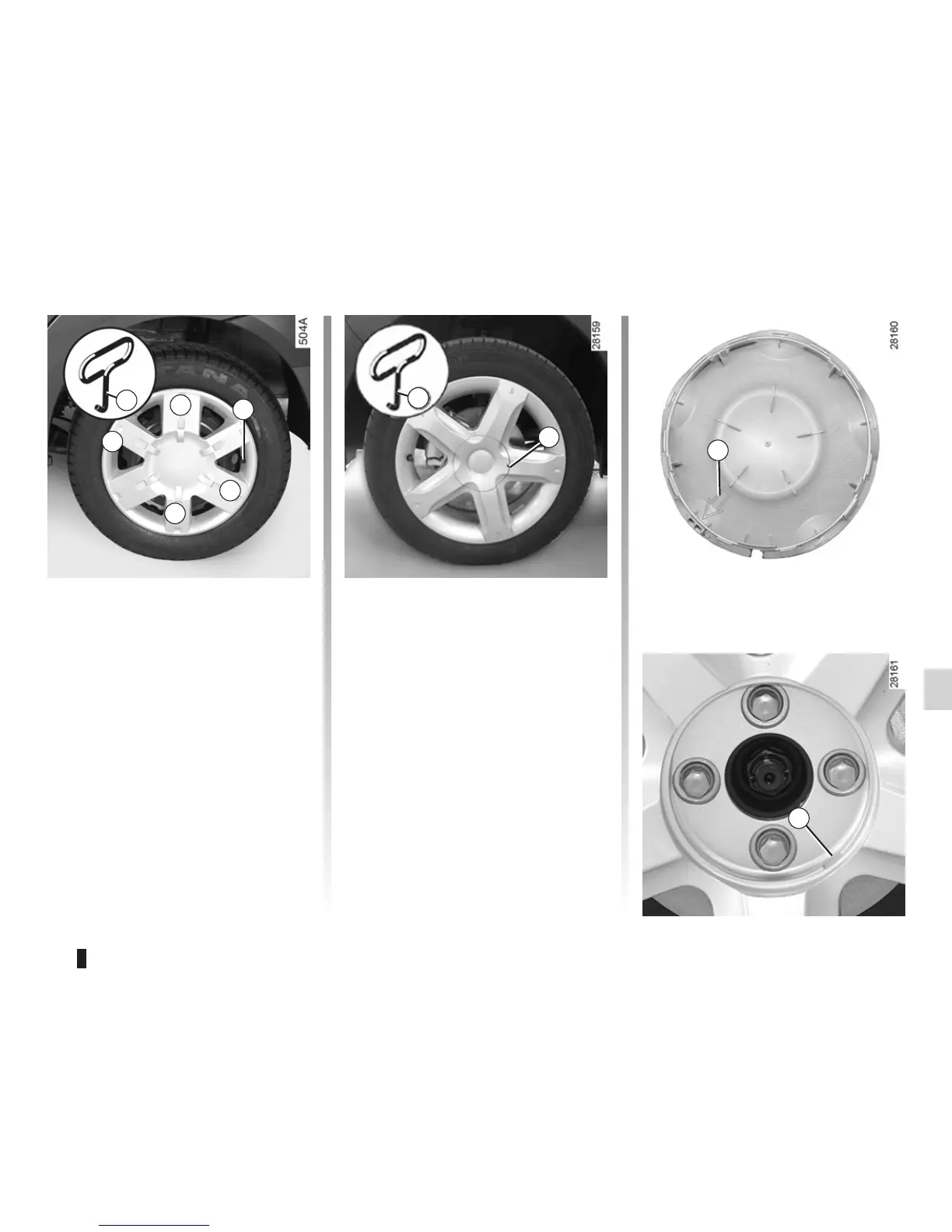

WHEEL TRIM/WHEELS (1/2)
Wheel trim with concealed
wheel bolts
Remove the wheel trim using the
hubcap tool 1, by inserting the tool into
valve recess 2.
To refit it, align it with valve 2. Push the
retaining hooks in fully, starting with
side A near the valve, followed by B
and C, finishing at D opposite the valve.
B
D
C
A
1
2
1
3
Central clipped wheel trim
with concealed wheel bolts
Remove the wheel trim using hubcap
tool 1, inserting the tool into valve
recess 3 and pulling.
To refit the trim, turn it so that arrow 4 is
aligned with recess 5 in the wheel rim,
and clip the trim in, checking it is com-
pletely secure.
5
4
