Renesas E2 Lite User Manual

E2 Lite Setup
R20UT3240EJ0300 Rev.3.00 Page 20 of 36
May.15.20
2.3 Connecting the E2 Lite to the User System
Use the procedure below to connect the E2 Lite to the user system with the user-system interface cable, or
to disconnect them when moving the E2 Lite or the user system.
(1) Connect the user-system interface cable to the user-side connector of the E2 Lite.
When connecting the user-system interface cable to the E2 Lite, check the position of the erroneous
insertion prevention key to ensure that the cable is plugged in correctly.
E2 Lite

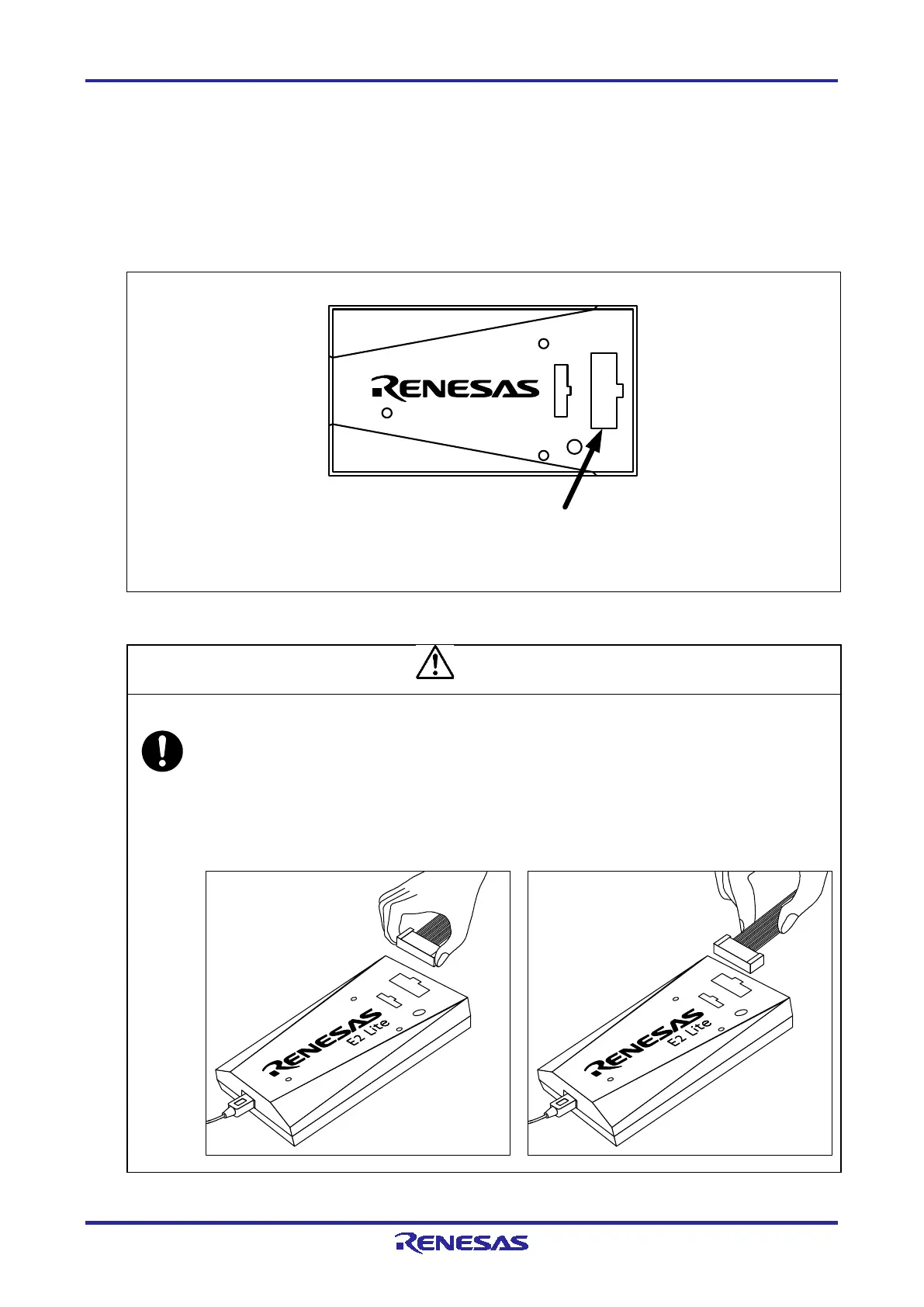

Figure 2.2 User-Side Connector on the E2 Lite
CAUTION
Notes on connector insertion and removal:
When connecting or disconnecting the user-system interface cable and the emulator, grasp the
connector at the end of the cable. Pulling the cable itself will damage the wiring.
Also, be aware that the user-system interface cable has the direction in which it must be inserted. If
the cable is connected in the wrong direction, it may be damaged.
Correct example
Incorrect example
VCC
RESET
ACT
E2 Lite
USER I/F
User-side connector
GND
USB
