E2 Lite Appendix A
R20UT3240EJ0300 Rev.3.00 Page 29 of 36
May.15.20
A.3 Executing the SCP
(1) Execute the E2 Lite SCP (E2Lite_SCP.exe).
When CS+ has been installed, open the start menu and select [Programs] -> [Renesas Electronics CS+]
-> [E2 Lite Self Check Program].
If you are using any other debugger product, install the SCP by using the installer of the SCP that has
been downloaded from the E2 Lite downloading site, then open the start menu and select [Programs] ->
[Renesas Electronics Utilities] -> [E2 Lite Self Check Program].

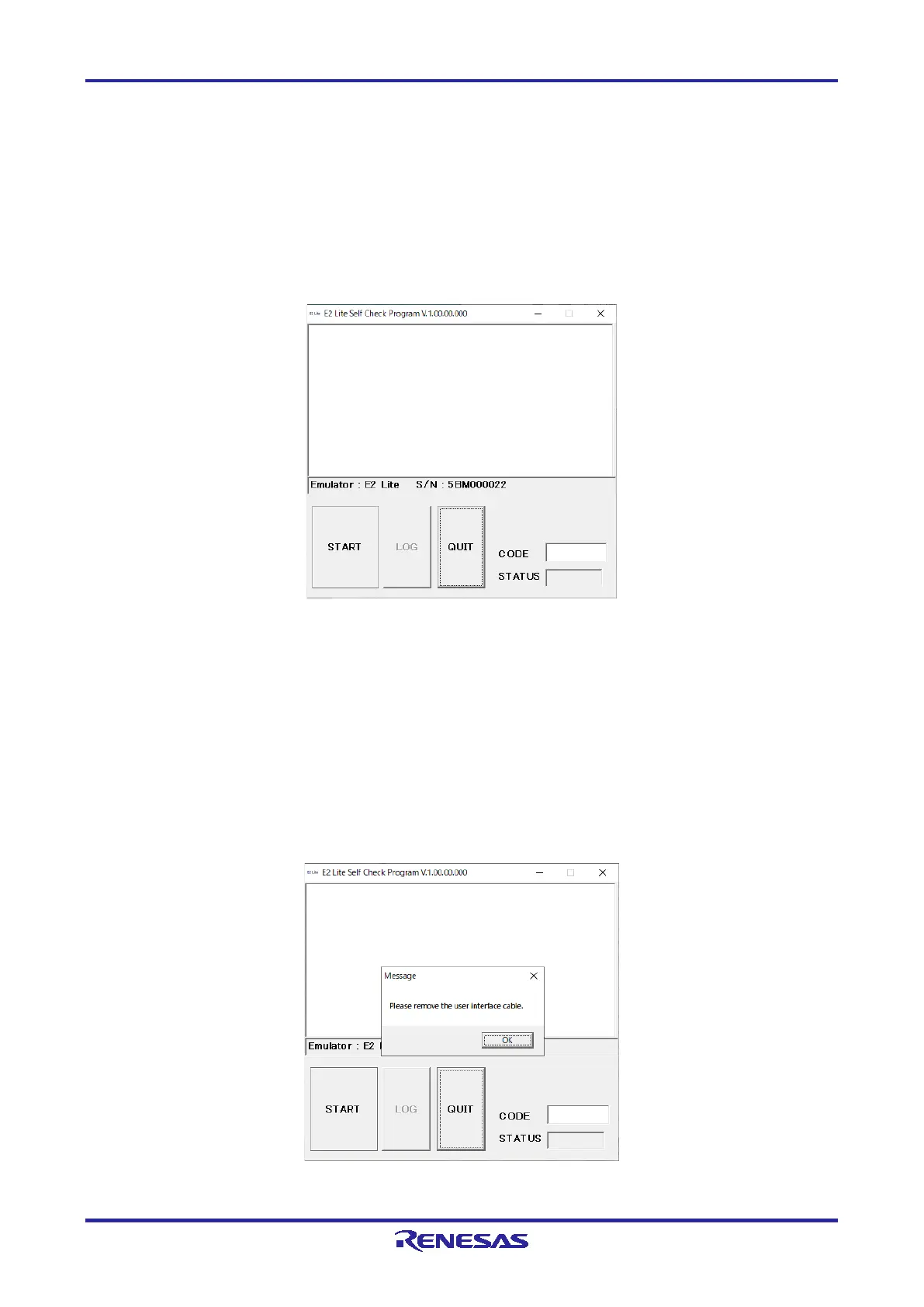

Figure A.1 Starting the E2 Lite SCP
(2) Click on the [START] button to start the SCP.
Do not enter any value in the [CODE] textbox since it is not used at this stage.
If the user-system interface cable is connected to the user system and you click on the [START] button,
the following message is displayed:
“Please remove the user interface cable.”
If this message is displayed, disconnect the user-system interface cable from the user system and click
on the [OK] button. The SCP then starts.
Figure A.2 Checking the Connection of the User-System Interface Cable
