5.8.8 Main Processing

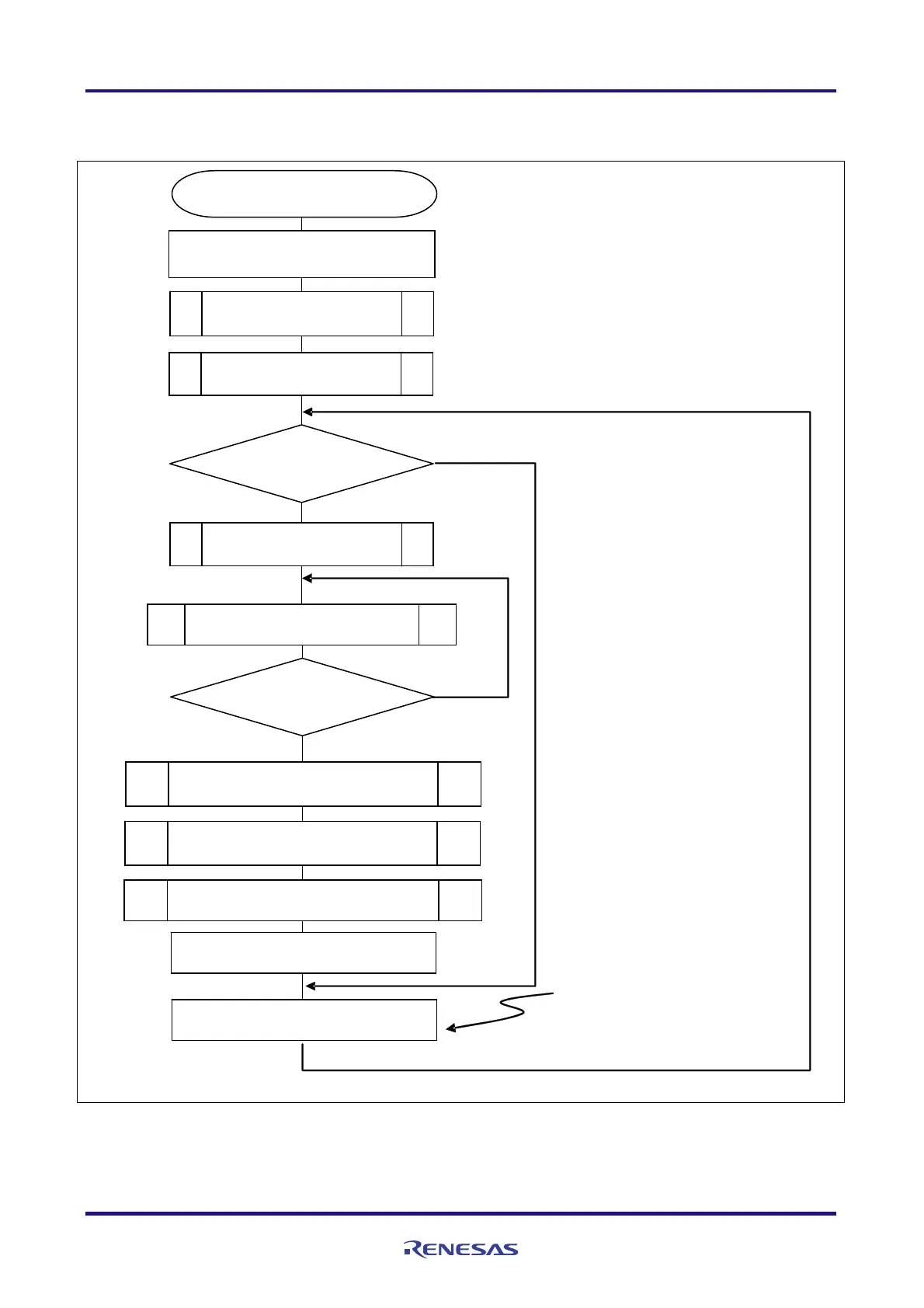

Figure 5.9 shows the flowchart for the main processing.
Figure 5.9 Main Processing
NO
main
YES
NO
The switch status is set on
an INTP0 external interrupt
(P_INTC0_Interrupt).
R_INTC0_Start()
Start INTP0 operation
R_TAU0_Channel0_Start()
Start operation of channel 0 of TAU0
YES
Switch pressed status?
R_CGC_ChangeClock()
Change operation clock
R_CGC_GetClockStatus()
Get clock status
Operating on new clock?
Switch status Not pressed
Transition to HALT mode
Returned from HALT mode on
an interval timer interrupt of
channel 0 of TAU0 channel 0
(R_TAU0_Channel0_Interrupt)
or INTP0 external interrupt input
(R_INTC0_Interrupt).
Enable interrupts
1
IE
R_TAU0_Channel0_Restart()
Restart channel 0 of TAU0
R_TAU0_Channel0_GetParameter()
Get parameters of channel 0 of TAU0
R_CGC_StopClock()
Stop old clock
To Next Page
