Unit Specications

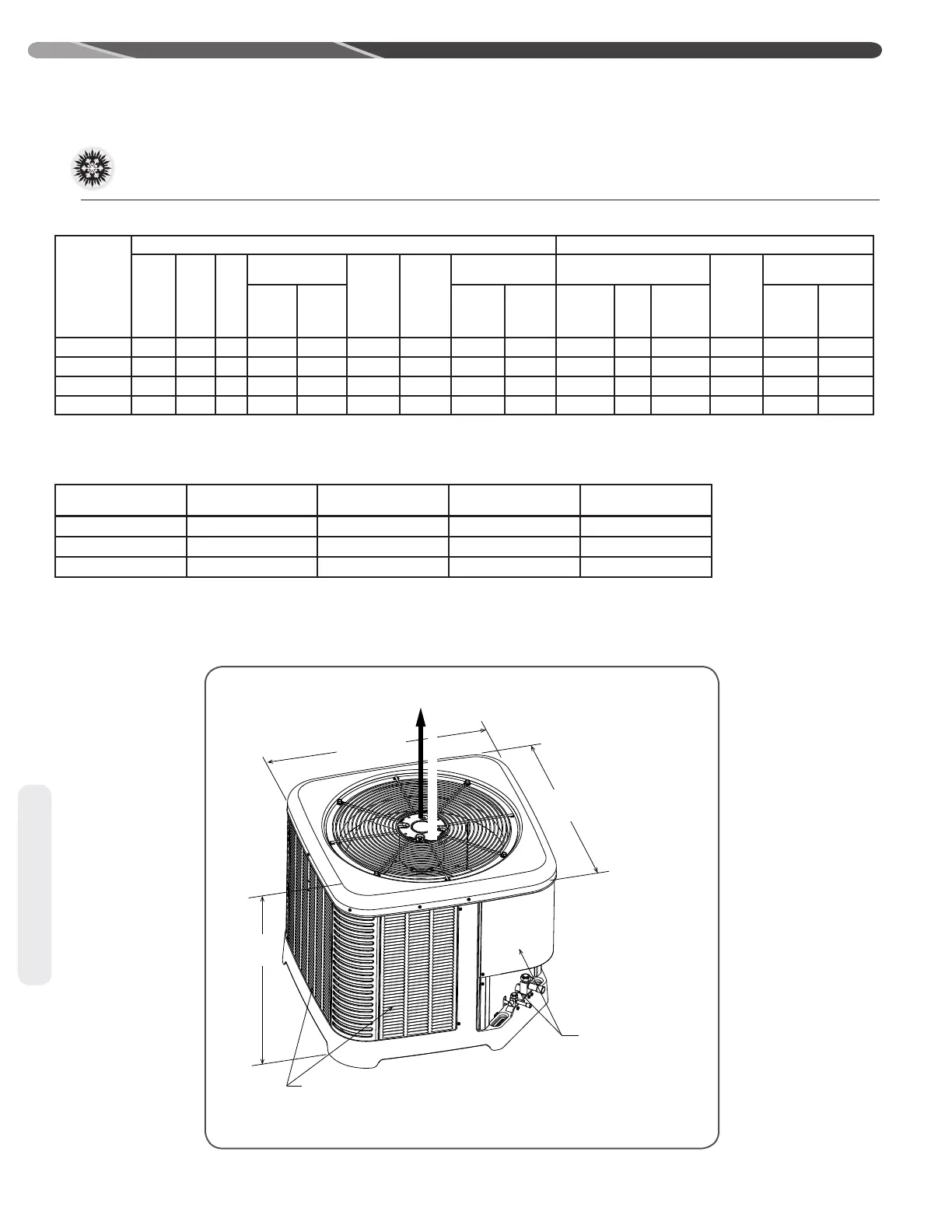

3.0 UNIT SPECIFICATIONS
3.2 Electrical and Physical Data
ST-A1226-02-00
ALLOW 60” [1524mm]
OF CLEARANCE
A
I
R
D
I
S
C
H
A
R
G
E
SERVICE PANELS/
INLET CONNECTIONS /
HIGH & LOW VOLTAGE
ACCESS ALLOW
24” [ 610 mm] OF CLEAR-
ANCE
AIR INLET LOUVERS ALLOW
6” [152mm] Min. OF CLEARANCE ALL SIDES
12” [305mm] RECOMMENDED
Model
Number
ELECTRICAL PHYSICAL
Voltage Phase Freq
Compressor
Fan
Motor
Full Load
Amperes
(FLA)
Minimum
Circuit
Ampacity
Amperes
Fuse or HACR
Circuit Breaker
Outdoor Coil
Refrig.
Per
Circuit
(oz.)
[g]
Weight
Rated
Load
Amperes
(RLA)
Locked
Rotor
Amperes
(LRA)
Maximum
Amperes
Minimum
Amperes
Face Area
Sq. Ft.
[m
2
]
No.
Rows
CFM
[L/s]
Net
Lbs.
[kg]
Shipping
Lbs [kg]
(-)A1724AJ2CB 208-230 1 60 11.7/11.7 58.3 1.40 16/16 25/25 20/20 19.76 [1.84] 1 5133 [2423] 128 [3629] 160 [72.6] 167 [75.7]
(-)A1736AJ2CB 208-230 1 60 15.3/15.3 83.0 1.20 21/21 35/35 25/25 22.23 [2.07] 1 3540 [1671] 144 [4082] 180 [81.6] 187 [84.8]
(-)A1748AJ2CB 208-230 1 60 21.2/21.2 104.0 5.30 32/32 50/50 40/40 32.30 [3.00] 1 4251 [2006] 204 [5783] 231 [104.8] 238 [108.0]
(-)A1760AJ2CB 208-230 1 60 28.8/28.8 152.9 5.30 42/42 60/60 50/50 32.30 [3.00] 1 5133 [2423] 223 [6322] 241 [109.3] 248 [112.5]
(-)A17
DIMENSIONS
(-)A17 24 36 48 60
Height “H” inches [mm] 35 [889] 39 [991] 51 [1295] 51 [1295]
Length “L” inches [mm] 33.75 [857] 33.75 [857] 33.75 [857] 33.75 [857]
Width “W” inches [mm 33.75 [857] 33.75 [857] 33.75 [857] 33.75 [857]
“W”
“H”
“L”

Rheem A17 Series Specifications

General

Brand	Rheem
Model	A17 Series
Category	Heat Pump
Language	English
