3. Lift the air handler above the wall mounting bracket and attached the unit to the
installed bracket. Reference figure 5.
4.2 FRAME MOUNT
The air handler comes with 8 clearance holes 4 on each side. These holes are used to
mount the air handler inside of a frame structure (see figure 6). When mounting in this
fashion, make sure that the wood screws are mounted from within the air handler and
not outside of the unit. Installing the screws from the outside could cause damage to the
coil.
11

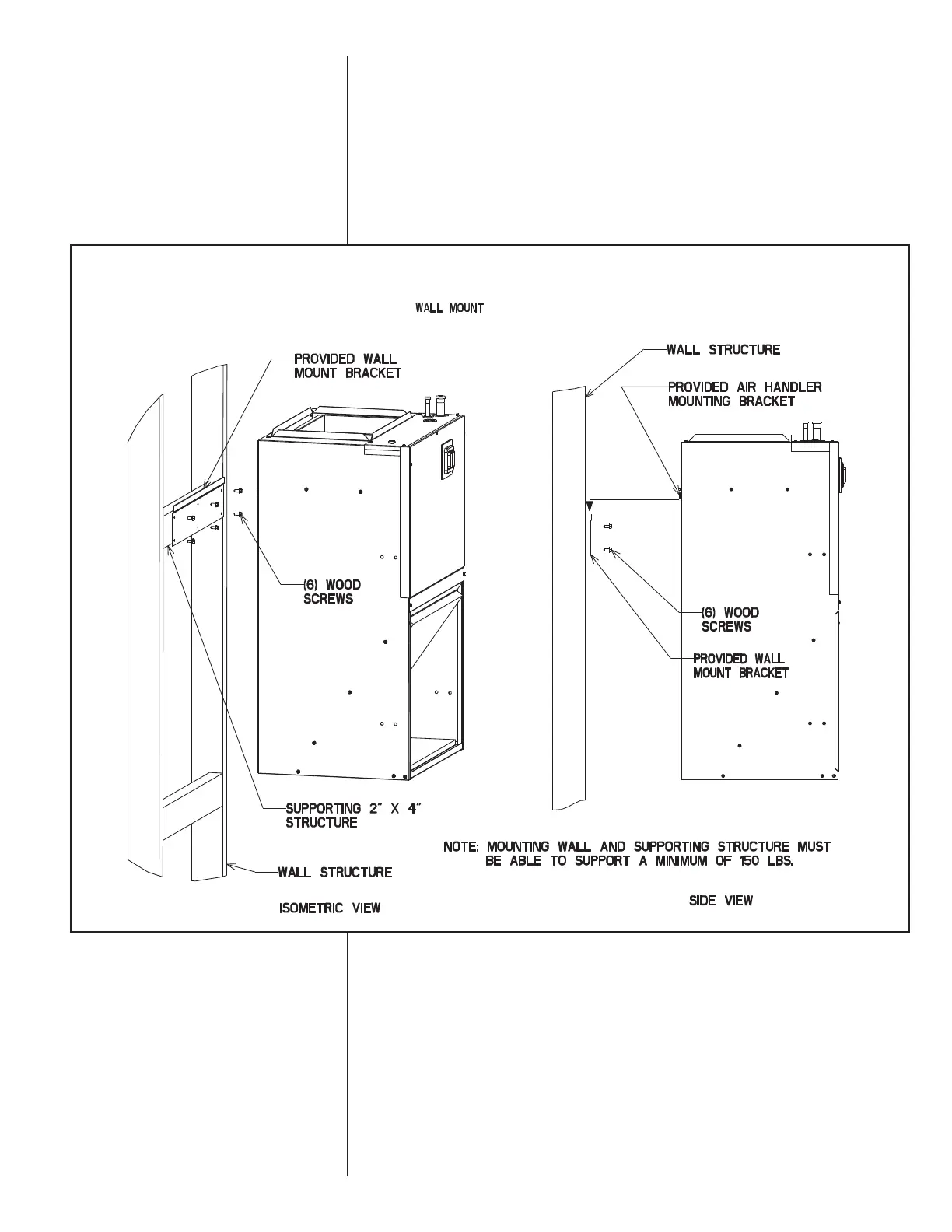

FIGURE 5
WALL MOUNT
