14.6 BLOWER MOTOR REMOVAL PROCEDURE (RHAL-FR30,RHAL-FR36,
14.6 AND RHBL-FR36)
1. Disconnect all power to the air handler.
2. Disconnect all blower motor leads from the control board, capacitor, and speed tap.
Reference wiring diagram for more detail.
3. If equipped with a heater kit, remove the 3 screws which attach the breaker/terminal
block assembly to the blower shelf. This will help gain access to the screws in step
8. (1/4” Socket)
4. Remove capacitor to help prevent damage to the coil. (1/4” Socket)
5. Install a 21” x 24” piece of cardboard over the coil as illustrated below to help protect
the coil from damage.
6. Remove/loosen set screw from the hub located on the left side of the blower.

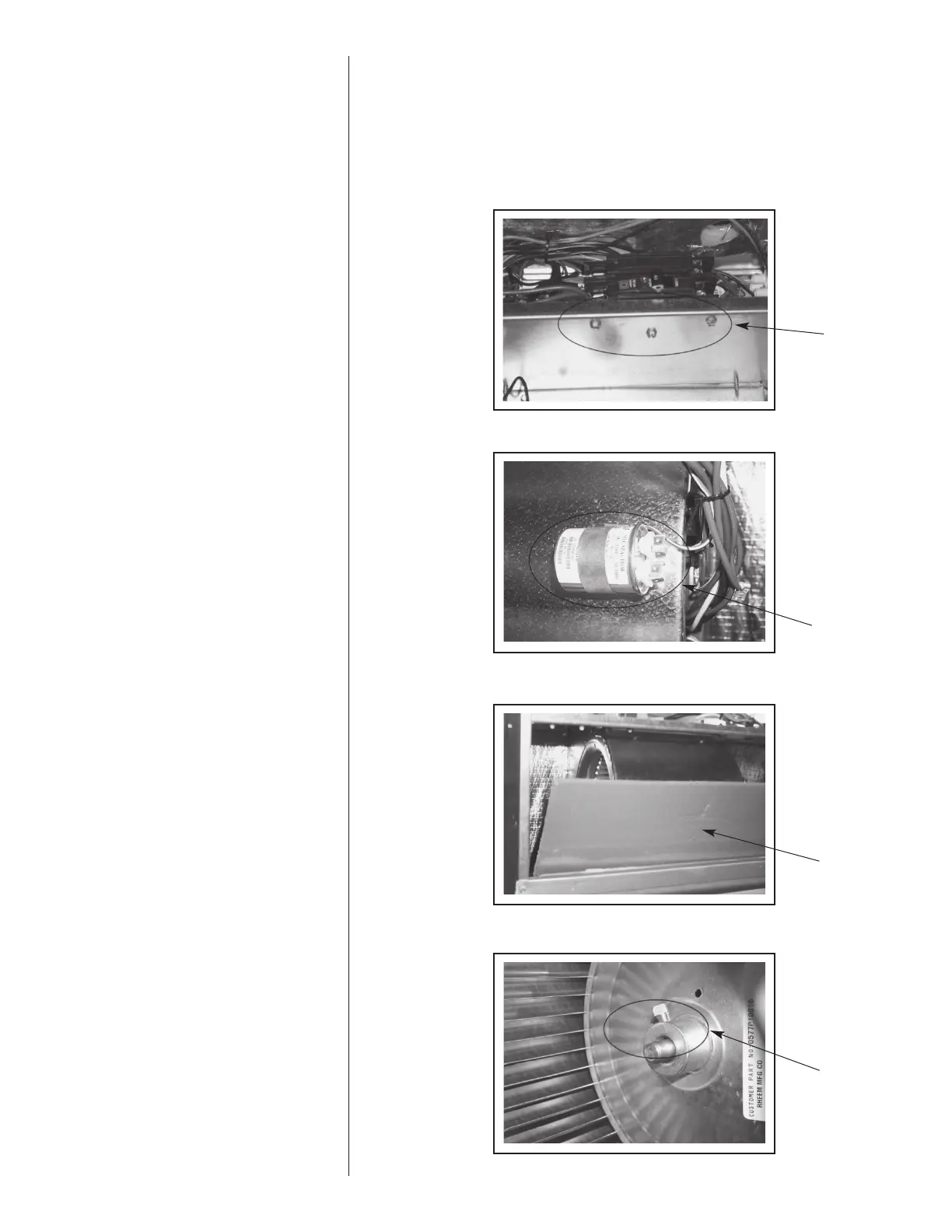

Remove Screws
Remove Capacitor
Install Cardboard
Remove/Loosen
Set Screw
To Next Page
