RG071002 Technical Bulletin PAGE: 1/1
Model: Model U-P1 Date: 20-Jan-03 No.: RG071002
Subject: Service Manual Prepared by: Y.Urushihara
From: Technical Services Sec. Service Planning Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Other ( )
Please apply the following correction to your Model U-P1 Service Manuals.

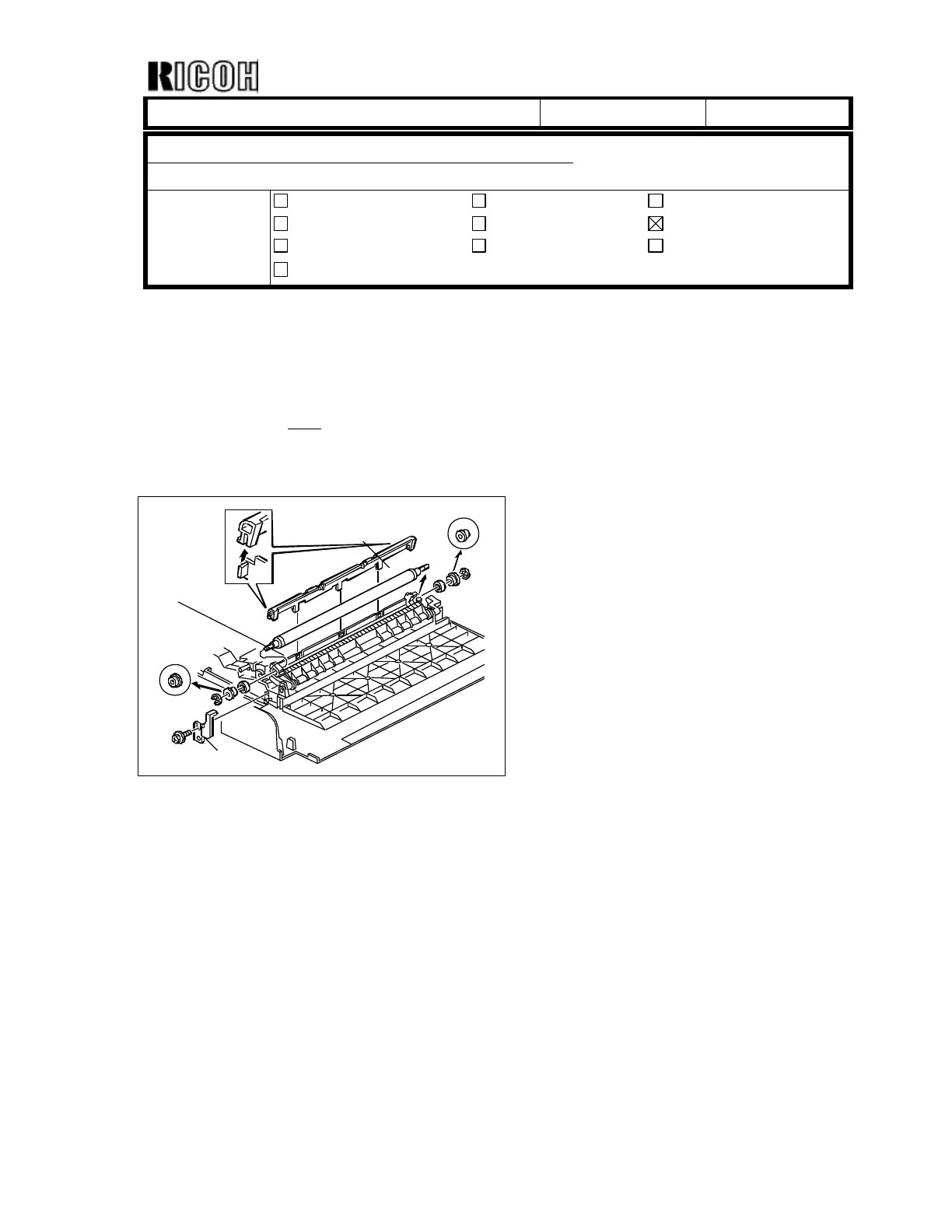

Page 3.23
The orientation of both bearings in the illustration below should be reversed.
Note: This is an illustration correction only. The procedure itself is unchanged.
3.8.2 TRANSFER ROLLER
1. Brace [A] (Screwx1)
2. Guide [B]
Note: To remove the screws, turn the
roller unit on its pivot.
3. Transfer roller [C]
(E-ringx2, Bushing x2, Bearingx2)
[B]
[C]
[A]
