Adjustment after Replacement
SM 4-69 D245/D246/D247
Replacement
and Adjustment
4.15 ADJUSTMENT AFTER REPLACEMENT
4.15.1 PRINTING
 Make sure the paper is installed correctly in each paper tray before you start these
adjustments.
 Print the registration page (page 5-46 "Test Pattern Printing") to use for these
adjustments.

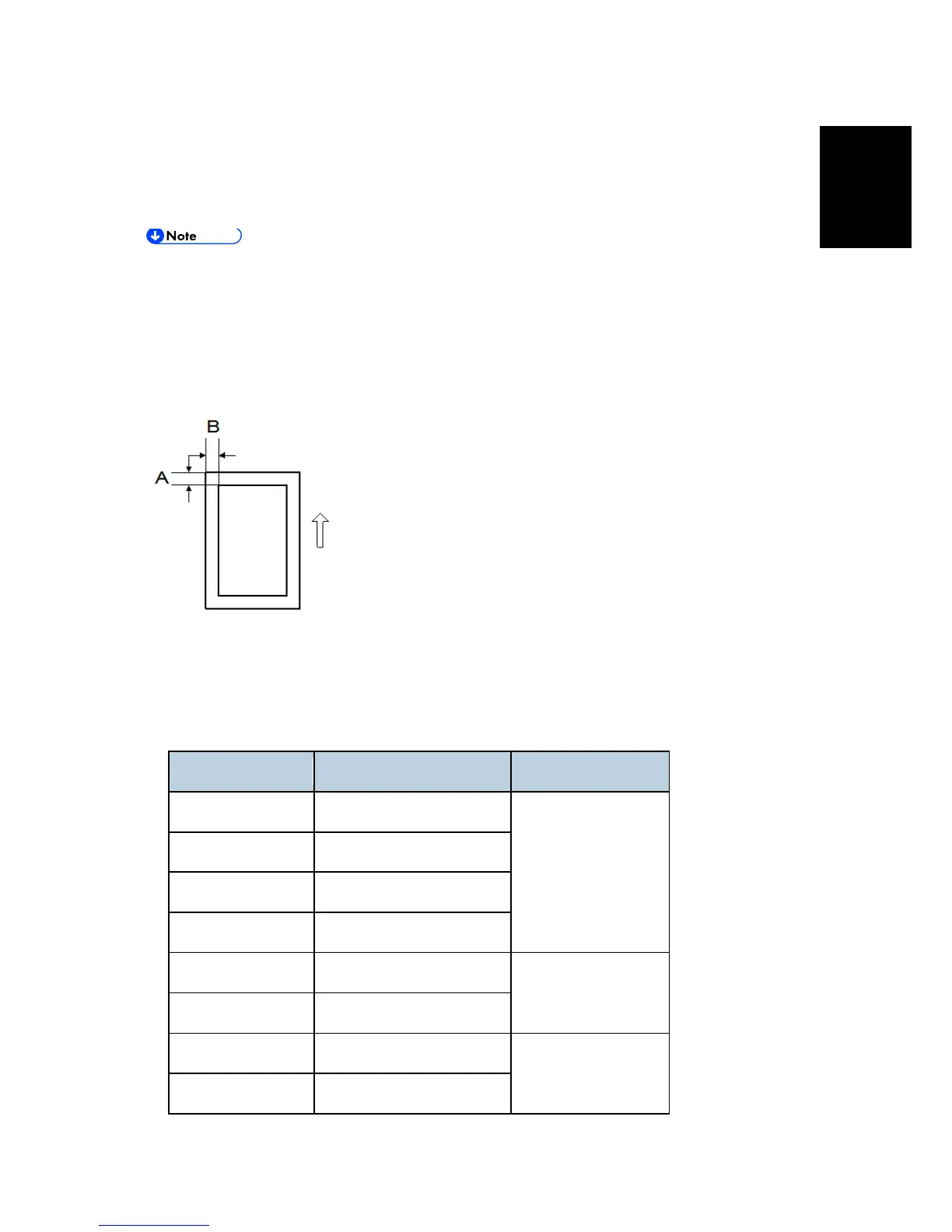

Registration - Leading Edge/Side-to-Side
A: Leading edge registration (3 ± 2 mm)
B: Side-to-side registration (2 ± 1.5 mm)
1. Check the leading edge registration [A] for each paper feed station, and adjust them
using SP1-001.
Tray SP No. Threshold
Tray: Plain SP1-001-002 4.2 ± 1.5 mm
Tray: Mid Thick SP1-001-003
Tray: Thick SP1-001-004
Bypass: Plain SP1-001-007
Bypass: Mid Thick SP1-001-008 4.2 ± 1.5 mm
Bypass: Thick SP1-001-009
Duplex: Plain SP1-001-013 4.2 ± 1.5 mm
Duplex: Mid Thick SP1-001-014
