Ricoh MP 2014D User Manual

Paper Feed Unit PB2020
SM 2-16 D245/D246/D247
 Reinstall the bracket wrench after tightening the screws.
12. Reassemble all trays and covers.
13. Load paper into the paper feed unit.
14. Turn on the main power switch of the machine.
15. Adjust the registration for the paper feed unit (tray 2) (page 4-69).
 Use SP1-002-004.
16. Check the paper feed unit operation and copy quality.

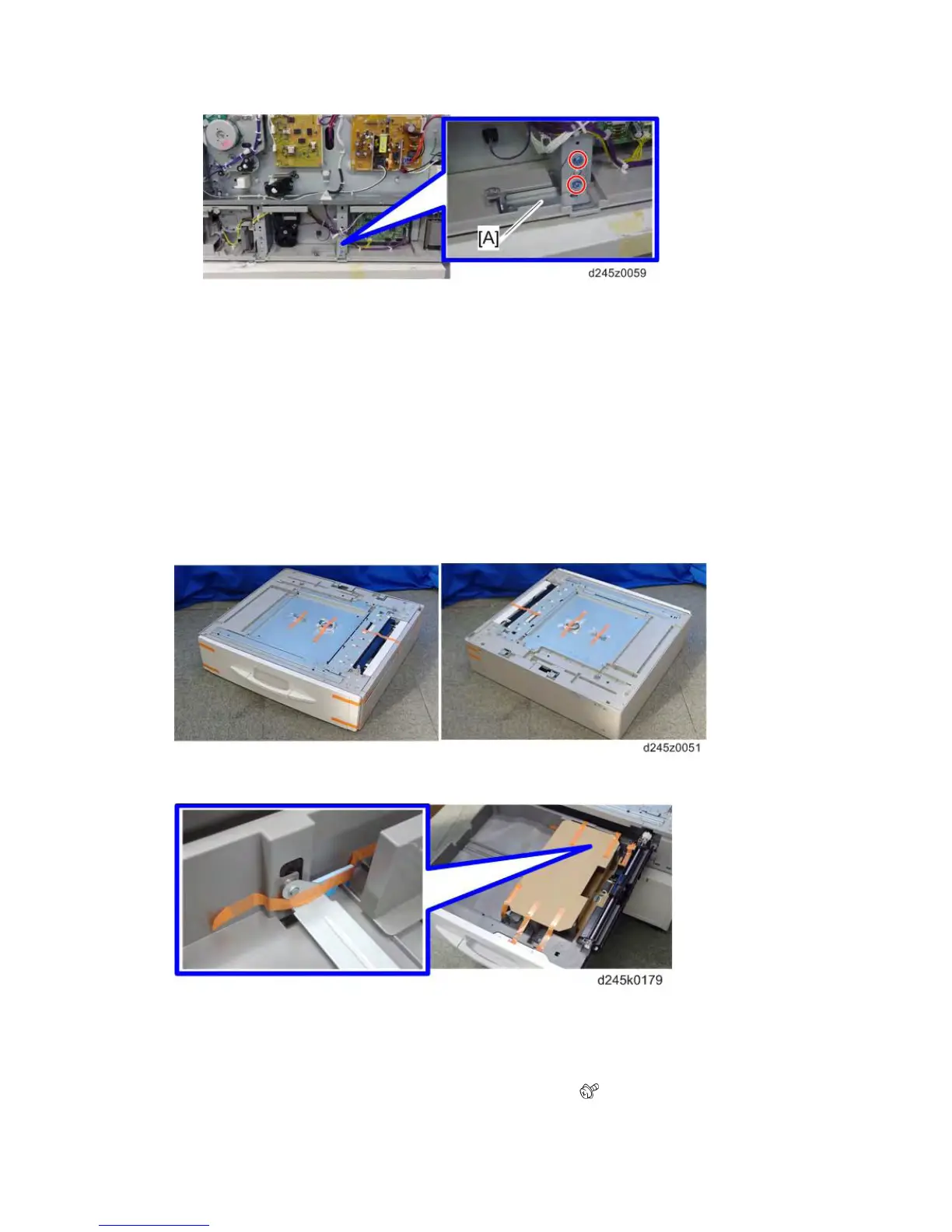

For Installing Double Paper Feed Units
1. Remove all tapes and accessories on the paper feed units.
2. Pull the tray, and then remove the filament tapes and other padding.
3. Lift the paper feed unit, and then install it on another paper feed unit.
4. Lift the copier, and then install it on the top of the paper feed units.
5. Repeat steps from 4 to 11 in the “For Installing Single Paper Feed unit”.
6. Remove the rear cover [A] of the lower paper feed unit (
x 4).
