INSTALLATION
2.13 Fitting the casing panels
RTC 3000-RTC 4000-RTC 5000-RTC 6000

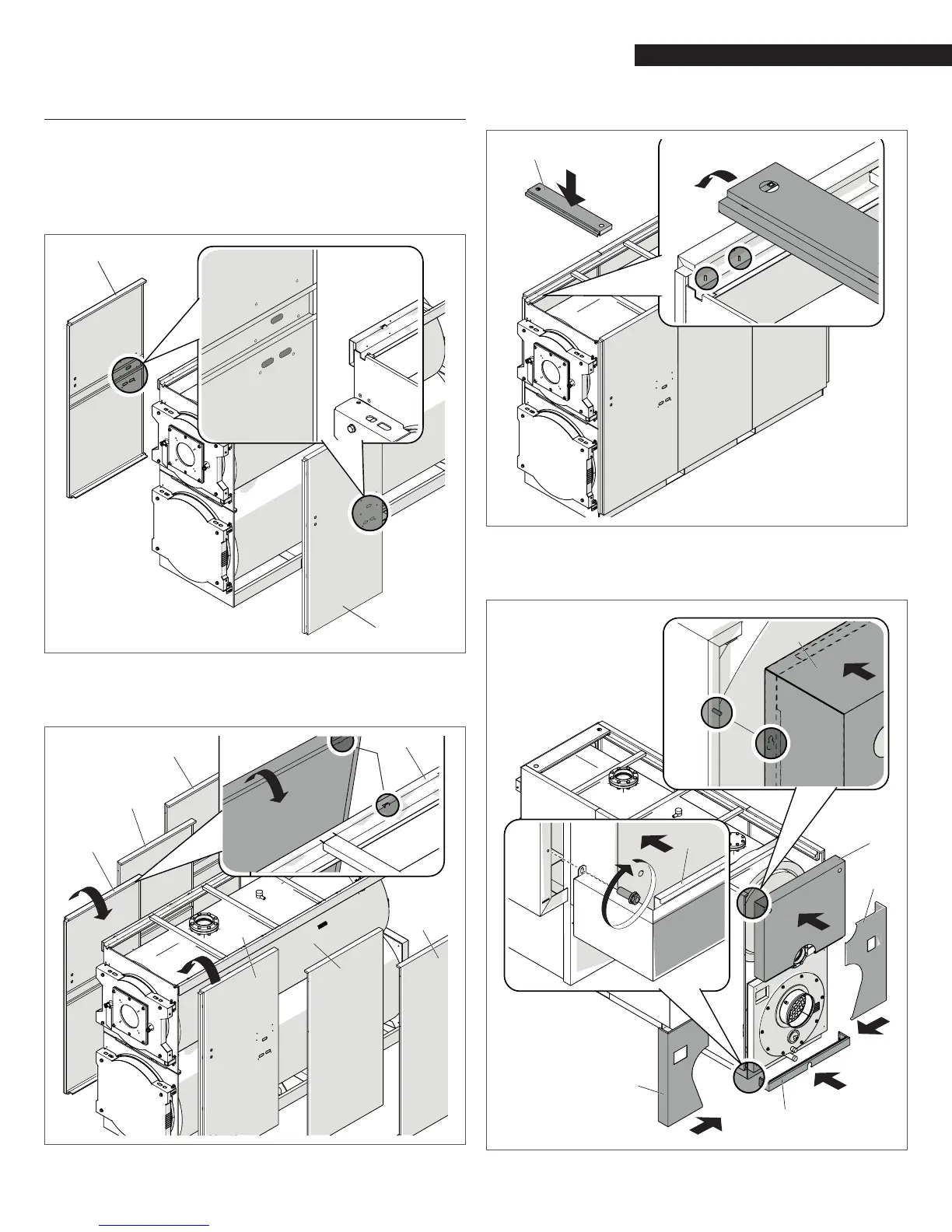

Proceed as follows to t the boiler casing panels:
− Push out the pre-formed cutouts in the boiler’s side panel
(2) or (3) depending on what side you want to install the
control panel) corresponding to the oval cable grommets in
the control panel. The control panel is not supplied.
3
2
− Fit the side panels (2, 3, 4, 5, 6 and 7) over the boiler's top
proles (1), taking care to align the pins with the holes in
the panels.
1
2
5
3
7
4
6
− Fit the front top panel (8) over the pins provided.
8
− Fit the top rear panel (9) and x the bottom rear prole (10)
in place with two screws. Then t the bottom rear panels
(11) and (12).
9
11
10
10
12
10
