Rigol DS7000 Series User Manual

RIGOL Chapter 6 Operations and Measurements
6-48 MSO7000/DS7000 User Guide

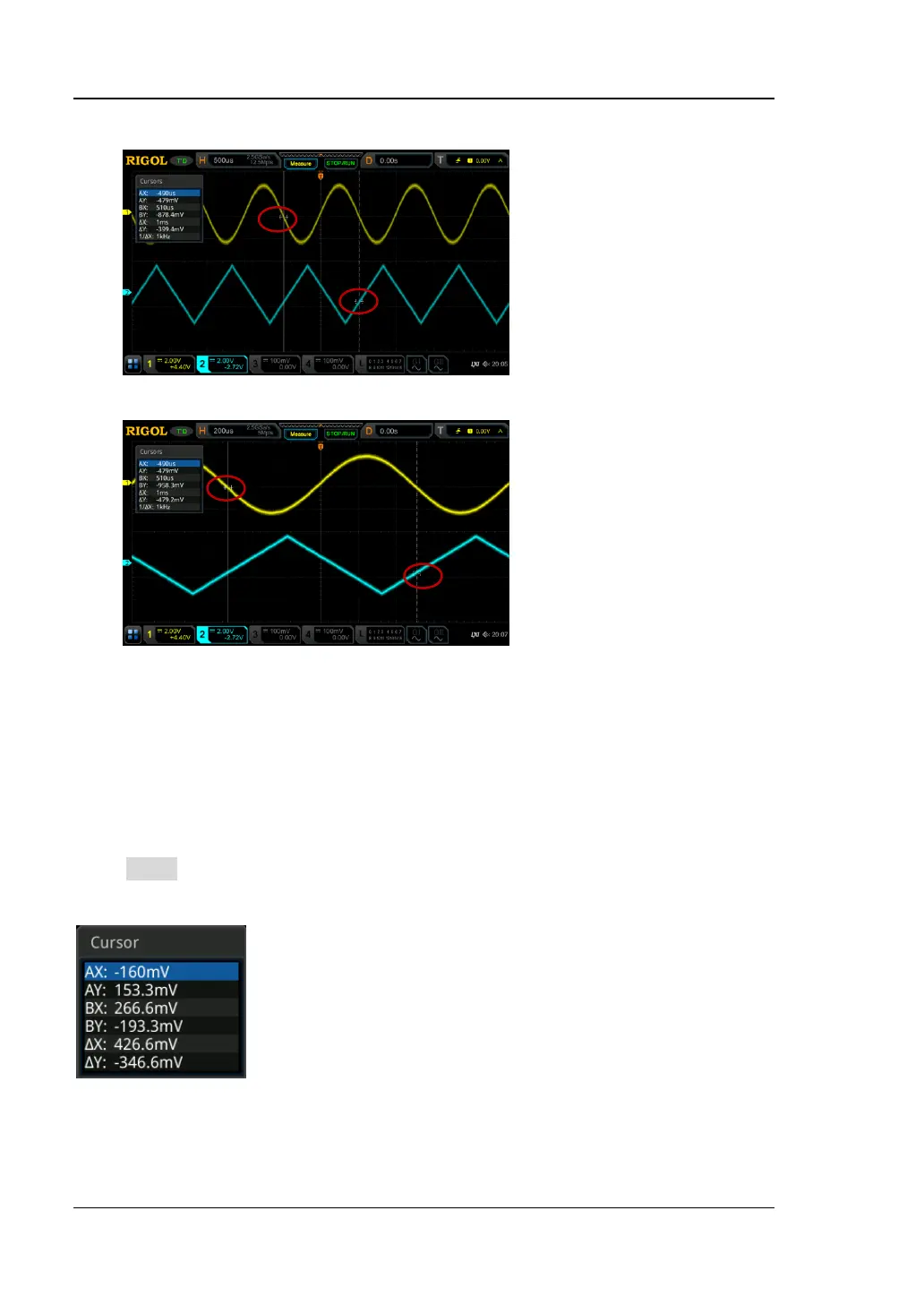

Track Measurement (before Horizontal Expansion):
Track Measurement (after Horizontal Expansion):
XY Mode
XY mode is only available when the horizontal time base mode is "XY" (refer to
"Timebase Mode"). In this mode, two pairs of cursors will appear. You can adjust
the cursor positions to measure the X and Y values at the crossing points of the two
pairs of cursors.
Press Mode to select "XY" to enable the XY cursor measurement function. The
measurement results are displayed at the upper-left corner of the screen, as shown
in the following figure.
 AX: indicates the X value at Cursor A.
 AY: indicates the Y value at Cursor A.
 BX: indicates the X value at Cursor B.
