Chapter 1 Disassembly and Assembly RIGOL
DS8000-R Service Guide 7
Disassemble the Metal Front Panel

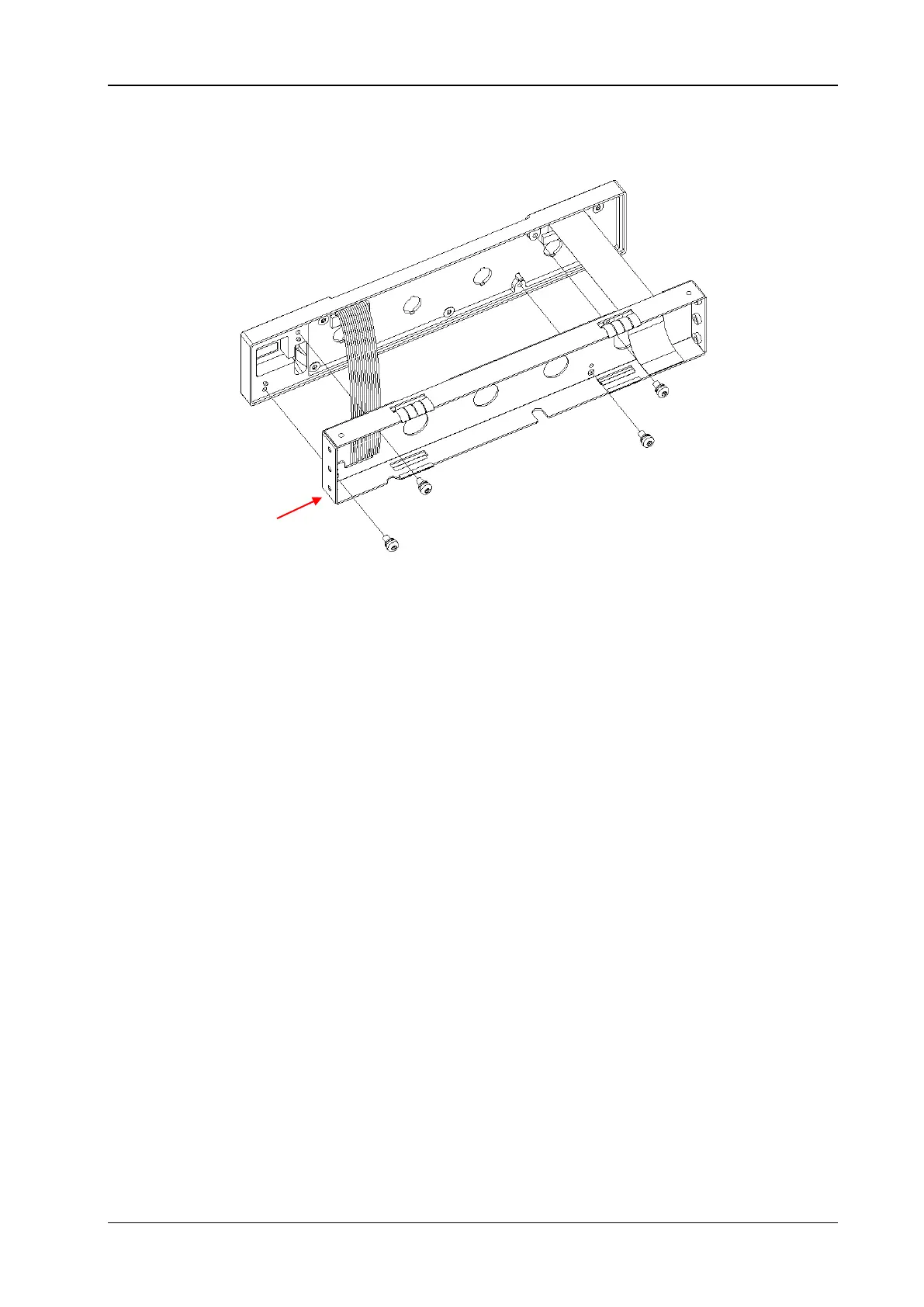

Figure 1-5 Disassemble the Metal Front Panel
Part Description:
① 4 screws (M3x6 torx pan head combination screw, used for fastening the metal front panel)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the metal front panel.
2. Take off the metal front panel gently.
① ①
① ①
① ①
① ①
Metal Front Panel
