Disassemble the Power Supply Board

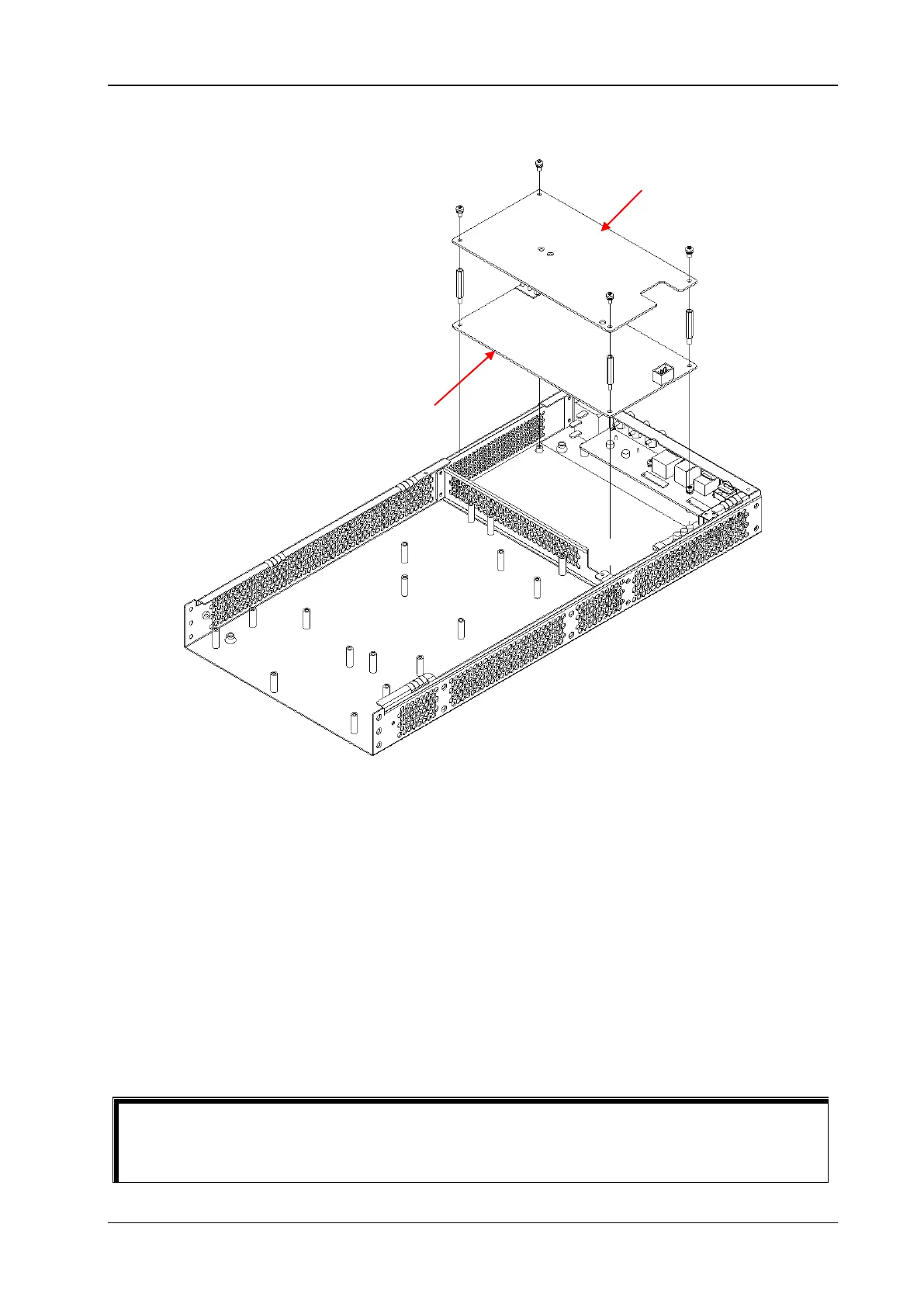

Figure 19 Disassemble the Power Supply Board
Part Description:
① 4 screws (M3x6 torx pan head combination screw, used for fastening the isolation board)
② 4 screws (M3x26 multiple-station screw, used for fastening the power supply board); not all
screws are indicated in the above figure.
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the isolation board.
2. Take off the isolation board gently.
3. Use the 5 mm hexagon wrench socket to remove the multiple-station screws (②) that secure the
power supply board.
4. Take off the power supply board gently.
Tip
Before disconnecting the cables from the power supply board, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling
the cables.
To Next Page
