RIGOL Chapter 1 Disassembly and Assembly
10 DS8000-R Service Guide
Disassemble the Main Board

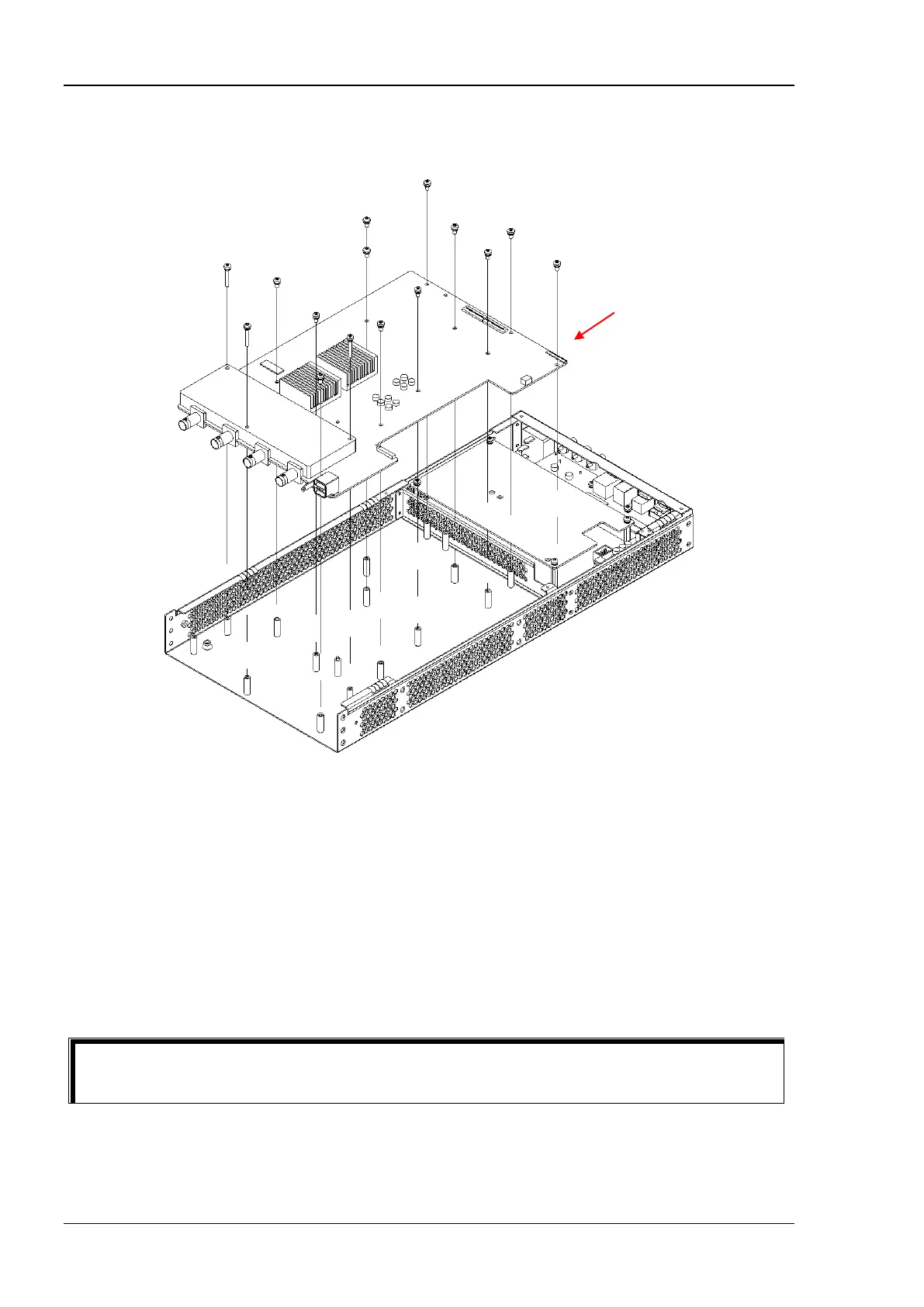

Figure 1-8 Disassemble the Main Board
Part Description:
① 3 screws (M3x20 torx pan head combination screw, used for fastening the main board)
② 12 screws (M3x6 torx pan head combination screw, used for fastening the main board)
Disassembly Steps:
1. Use the T10 screwdriver to remove 3 screws (①) that secure the main board.
2. Use the T10 screwdriver to remove 12 screws (②) that secure the main board.
3. Take off the main board gently.
Tip
Before disconnecting the cables from the main board, pay attention to the connecting positions of
the cables to avoid incorrect connection or incomplete connection when assembling the cables.
To Next Page
