Chapter 1 Disassembly and Assembly RIGOL
DS8000-R Service Guide 9
Disassemble the Fan Components

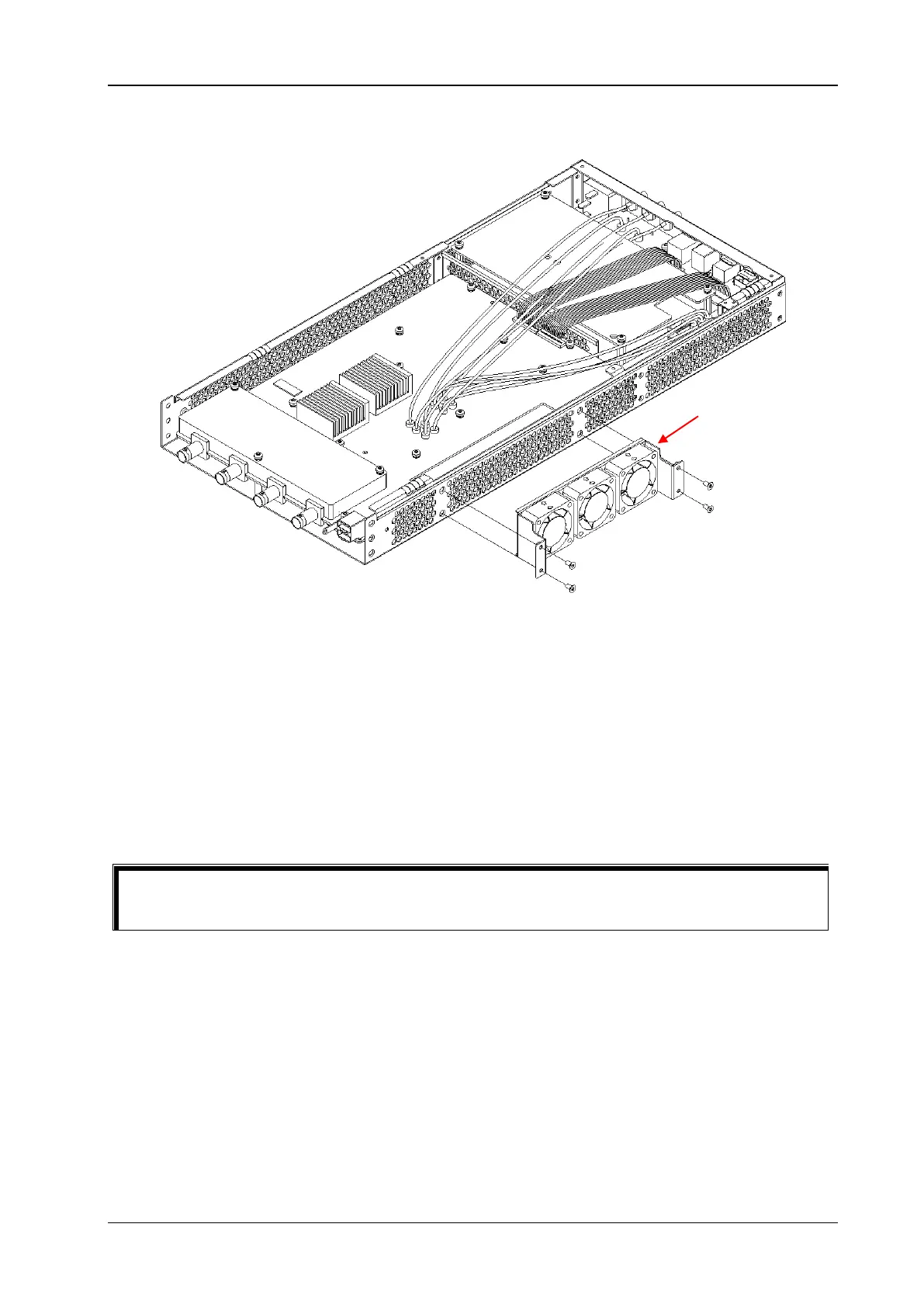

Figure 17 Disassemble the Fan Components
Part Description:
① 4 screws (M3x6 torx flat head countersunk screw, used for fastening the fan components)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the fan component.
2. Take off the fan components gently.
Tip
When disassembling the fan, pay attention to the installation position of the fan and the direction
of the fan cable outlet to avoid any improper assembly operation.
① ①
① ①
① ①
① ①
Fan Components
