Disassemble the Interface Board

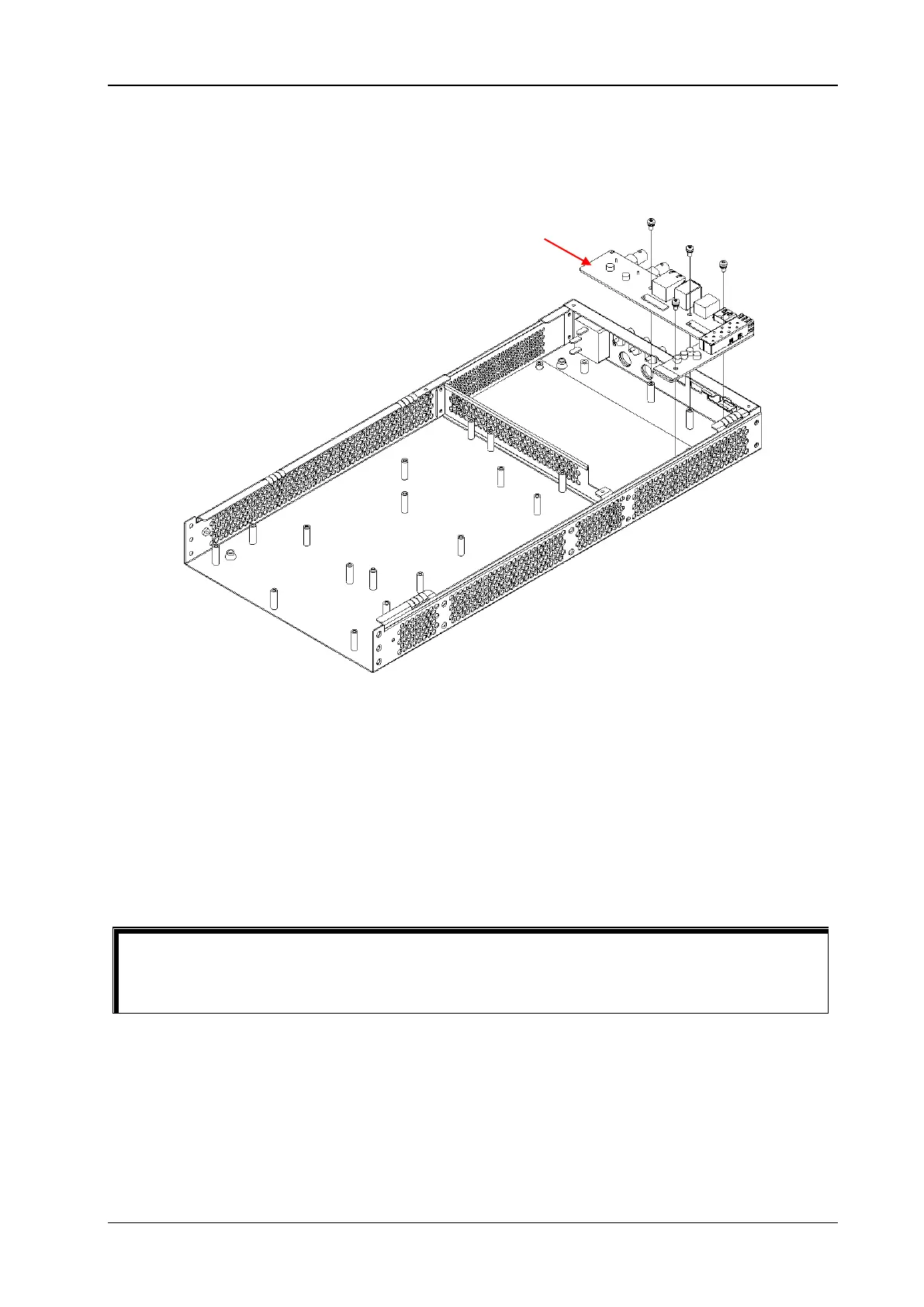

Figure 1-11 Disassemble the Interface Board
Part Description:
① 4 screws (M3x6 torx pan head combination screw, used for fastening the interface board)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the interface board.
2. Take off the interface board gently.
Tip
Before disconnecting the cables from the interface board, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling
the cables.
①
①
①
①
Interface Board
