RIGOL Chapter 1 Disassembly and Assembly
12 DS8000-R Service Guide
Disassemble the SMA Cable

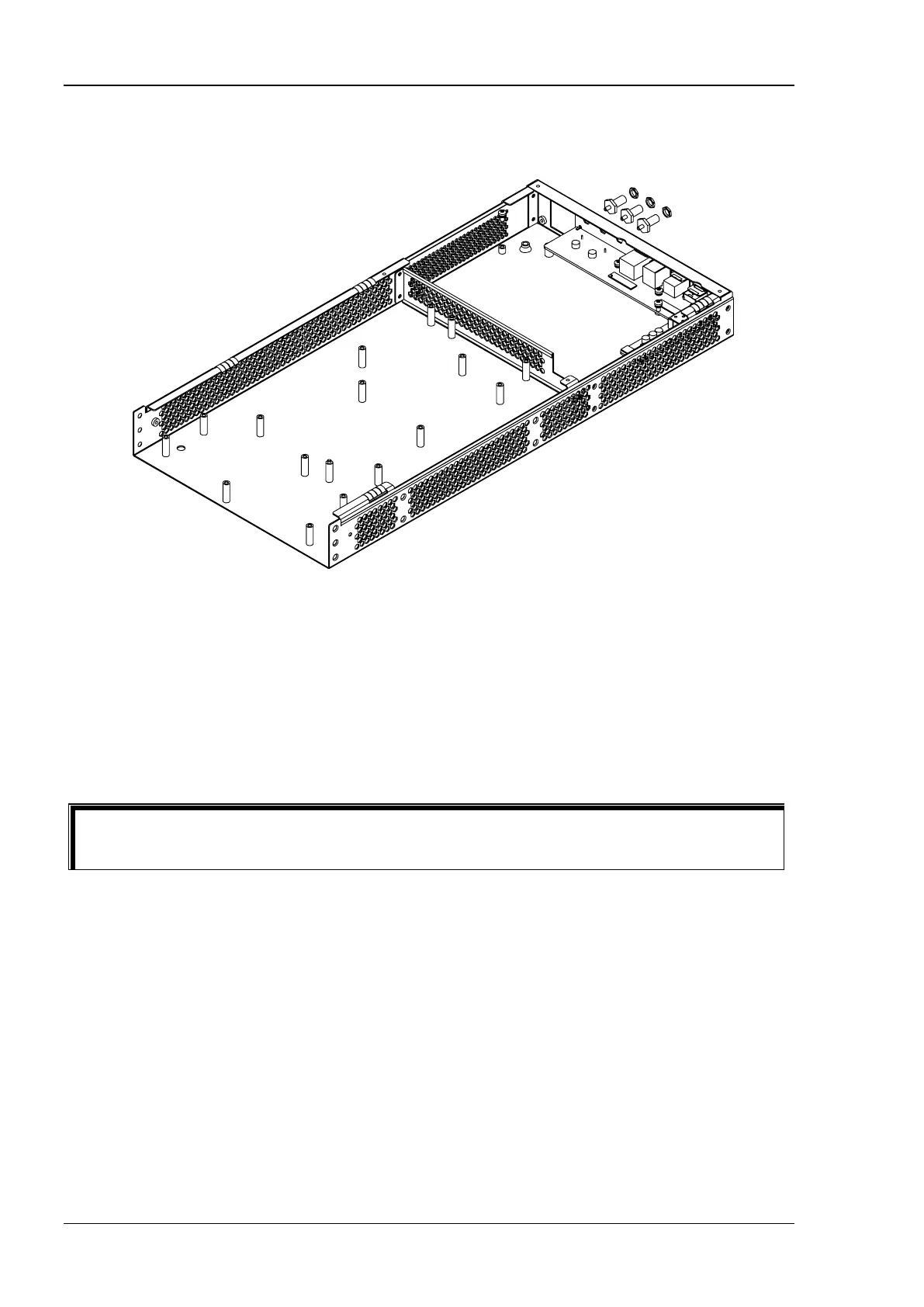

Figure 1-10 Disassemble the SMA Cable
Part Description:
① 3 screws (used for fastening the SMA cable)
Disassembly Steps:
1. Use the 8mm hexagon wrench socket to remove 3 screw (①) that secure the SMA cable.
2. Remove the SMA cable gently.
Tip
Before disconnecting the SMA cables, pay attention to the connecting positions of the cables to
avoid incorrect connection or incomplete connection when assembling the cables.
To Next Page
