RIGOL Chapter 1 Disassembly and Assembly
1-4 MSO8000 Service Guide
Disassemble the Rear Panel Components

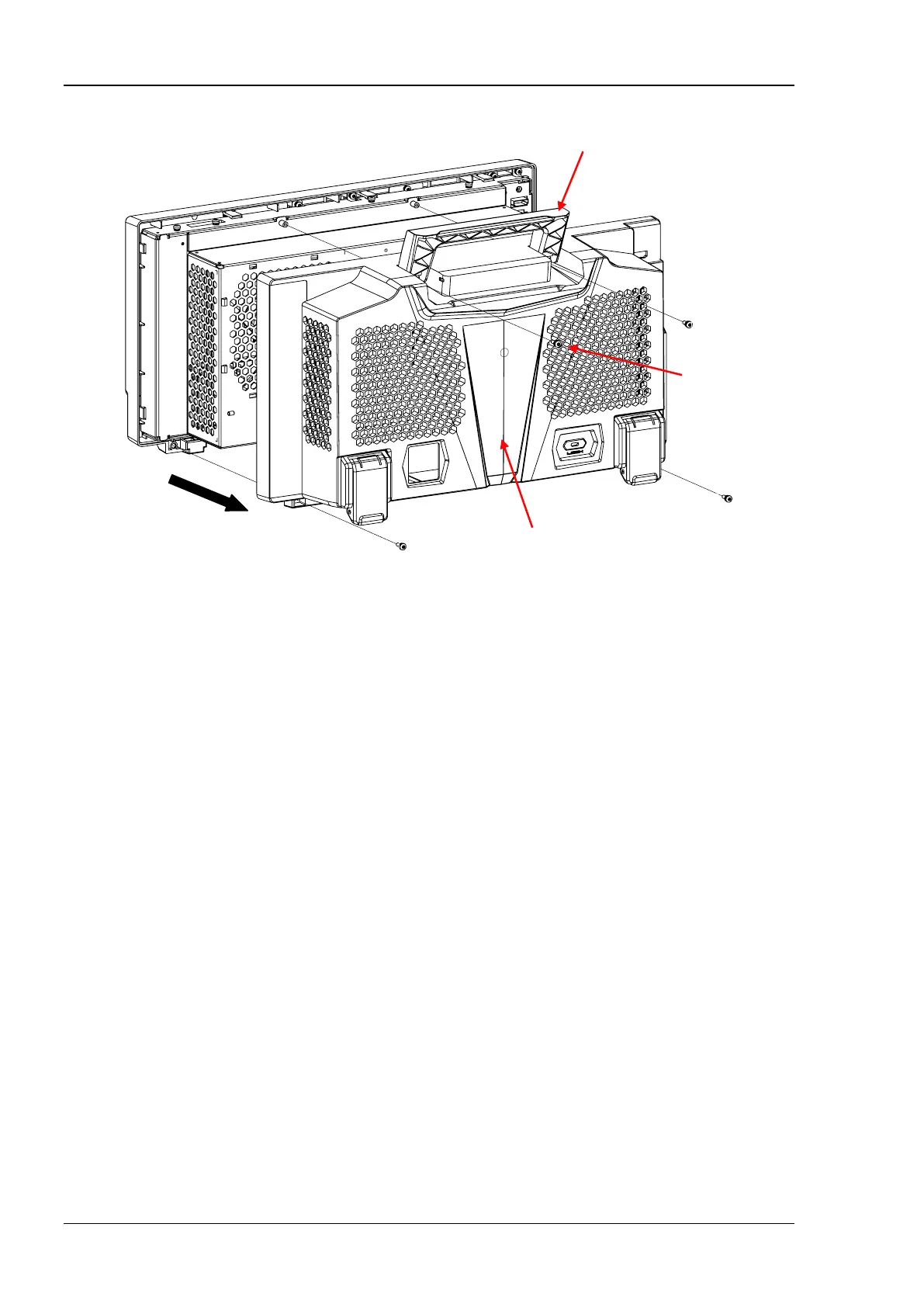

Figure 1-2 Disassemble the Rear Panel Components
Part Description:
① 2 screws (M3x8 torx pan head combination screw, used for fastening the handle)
② 2 screws (M3x8 torx pan head combination screw, used for fastening the rear panel at the
bottom)
Disassembly Steps:
1. Use the T10 screwdriver to remove 2 screws (①) that secure the handle.
2. Use the T10 screwdriver to remove 2 screws (②) at the bottom of the rear panel.
3. Remove the rear panel components in the arrow direction (as shown in the figure above).
①
①
②
②
