Rigol MSO8000 Series Service Guide

RIGOL Chapter 1 Disassembly and Assembly
1-14 MSO8000 Service Guide
Disassemble the Keypad Board

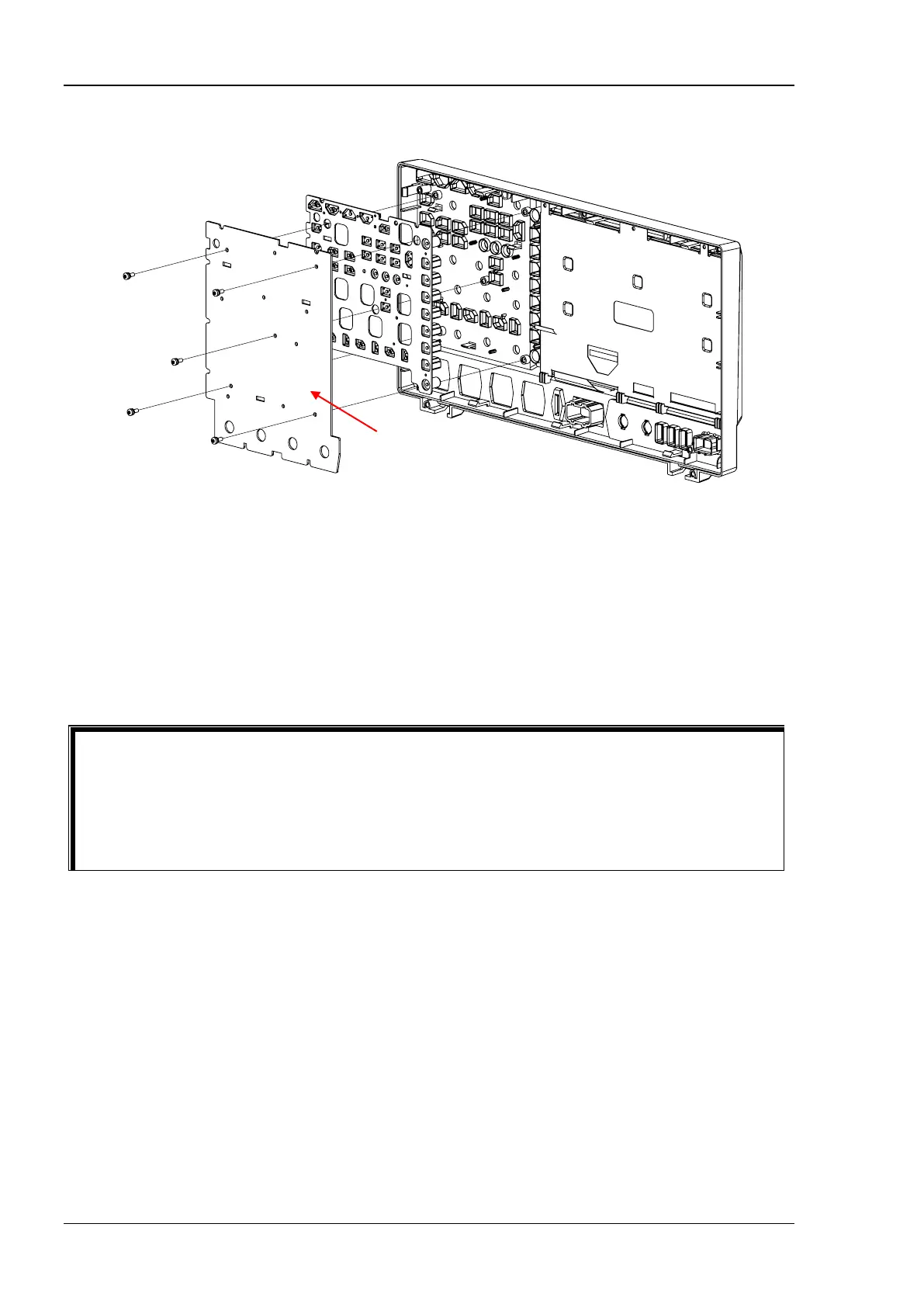

Figure 1-11 Disassemble the Keypad Board
Part Description:
① 5 screws (M3x6 torx pan head combination screw, used for fastening the keypad board)
Disassembly Steps:
1. Remove the active probe power cable and the touch screen cable from the keypad board.
2. Use the T10 screwdriver to remove 5 screws (①) that secure the keypad board.
3. Disengage the 3 tabs from the keypad board.
4. Take off the keypad board gently.
Tip
 Before disconnecting the cables from the keypad board, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when
assembling the cables.

When assembling the keyboard, align the keyboard with the slots on the front panel. After the
keyboard is properly installed, ensure that all the rubber keypads on the front panel work
normally.
Keypad Board
①
①
①
①
①
