RIGOL Chapter 1 Disassembly and Assembly
1-6 MSO8000 Service Guide
Disassemble the Metal Rear Panel Components

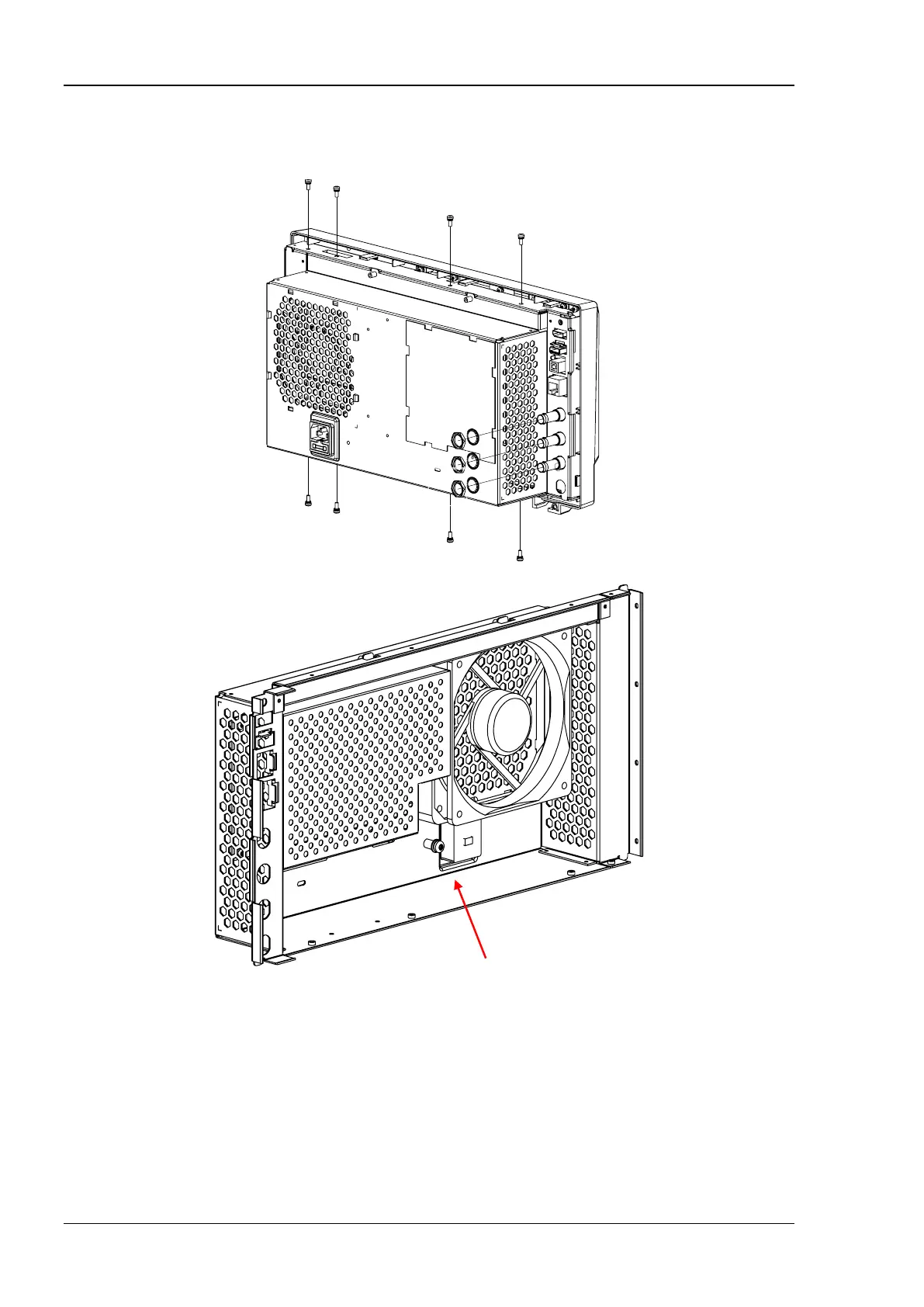

Figure 1-4 Disassemble the Metal Rear Panel Components
Part Description:
① 8 screws (M3x6 torx pan head combination screw, used for fastening the metal front panel and
the metal rear panel components)
② 3 BNC nuts
③ 3 lock washers
①
①
①
①
①
①
②
②
③
③
①
①
Metal Rear Panel Components
