Rigol MSO8000 Series Service Guide

RIGOL Chapter 1 Disassembly and Assembly
1-8 MSO8000 Service Guide
Disassemble the Fan Components

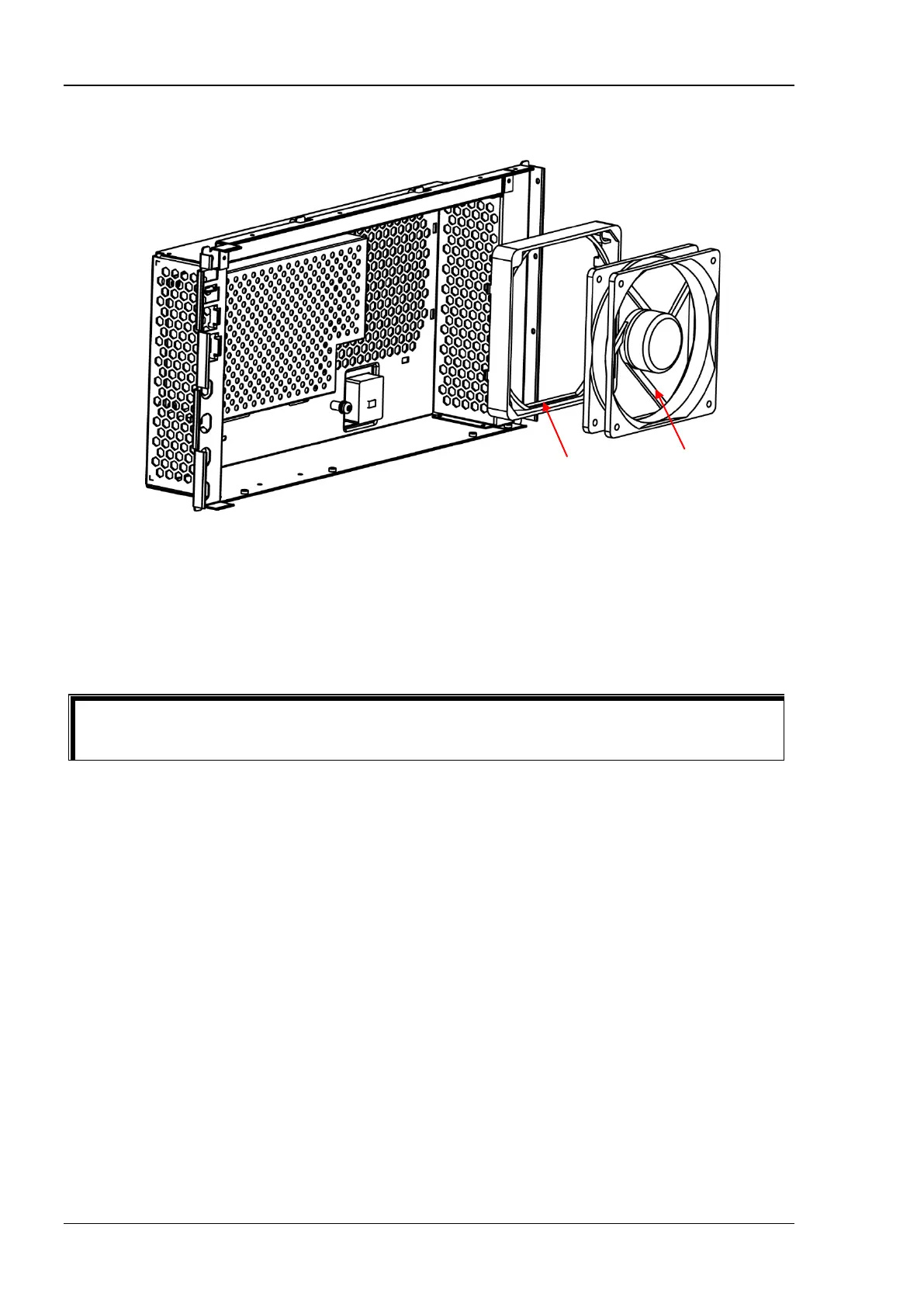

Figure 1-5 Disassemble the Fan Components
Disassembly Steps:
1. Remove the fan cable from the power supply shield.
2. Disengage the 4 tabs of the rubber fan sleeve from the metal rear panel components.
3. Remove the fan components (fan+rubber fan sleeve) from the metal rear panel components.
4. Take off the fan gently.
Tip
When disassembling the fan, pay attention to the installation position of the fan and the direction
of the fan cable outlet to avoid any improper assembly operation.
Fan
Rubber Fan Sleeve
