Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-15
Disassemble the LCD

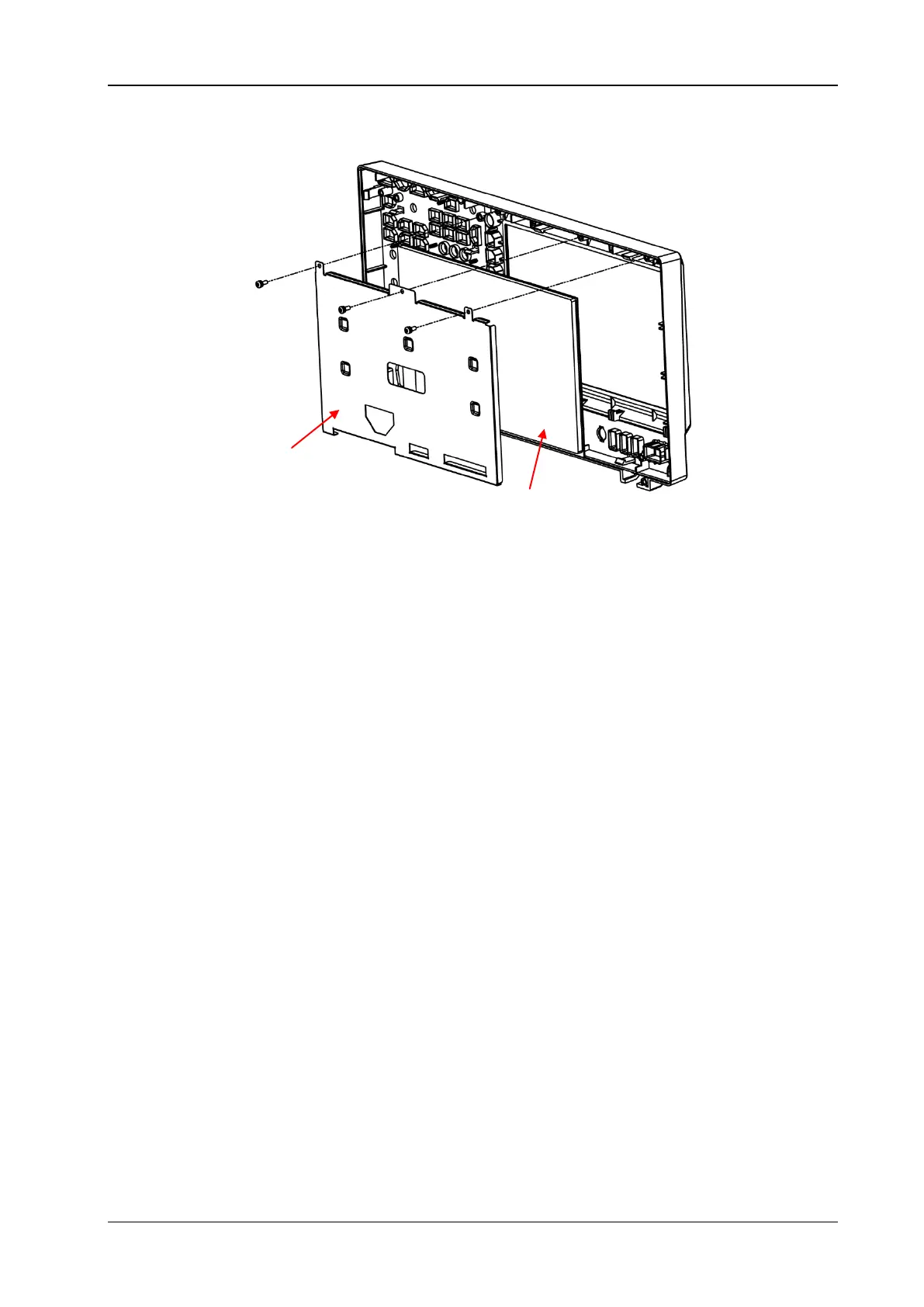

Figure 1-12 Disassemble the LCD
Part Description:
① 3 screws (M3x8 torx pan head combination screw, used for fastening the LCD assembly)
Disassembly Steps:
1. Use the T10 screwdriver to remove 3 screws (①) that secure the LCD assembly (LCD+LCD
shield).
2. Move left and push outward the LCD assembly to take it off from the panel.
LCD Shield
LCD (Touch Screen Included)
①
①
①
