RIGOL Chapter 1 Quick Start
1-18 RSA3000 User Guide
13. IF OUT
Indicates the intermediate frequency signal in the output RF component. Its
center frequency is 430 MHz.
User Interface

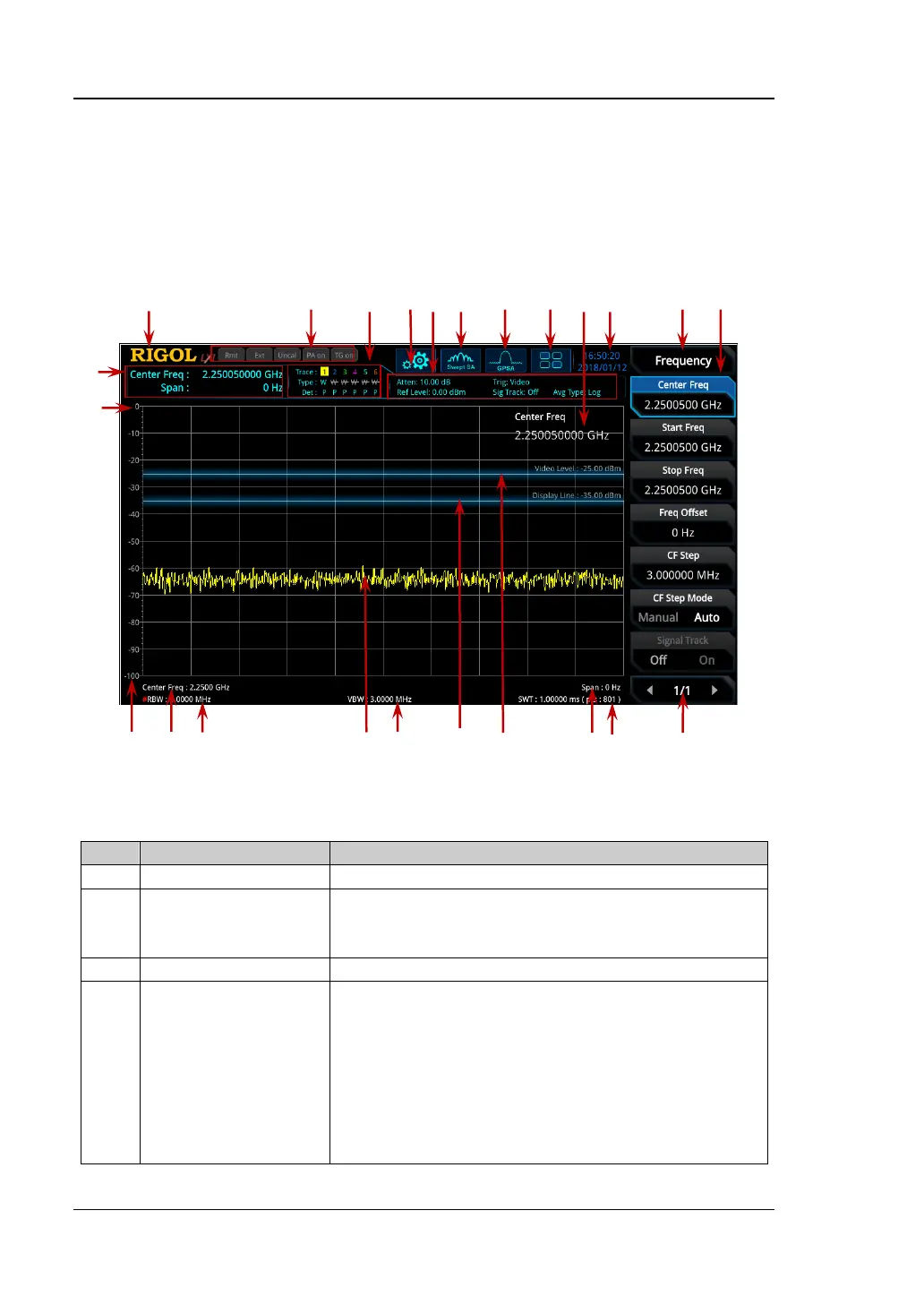

Figure 1-9 User Interface
Table 1-4 User Interface Icons
No.
Name
Description
1
Reference level
Displays the reference level value.
2
Measurement result
Displays the current measurement results for the
marker (when no marker exists, the measurement
results display frequency/span value).
3
RIGOL
Indicates the company logo.
4
System status
Rmt: indicates remote operation.
Ext: indicates the external reference.
Uncal: indicates that the measurement has not be
calibrated.
PA on: indicates that the preamp has been
enabled.
TG on: indicates that the tracking generator has
been enabled.
3 4 5 6 7 8 9 10 11 12
13 14
2
1
24 23 22 21 20 19 18 17 16 15
