Rittal CMC III User Manual

Rittal CMC III online comfort handle VX 13
6 Operation
EN
6 Operation
6.1 Activating the comfort handle
After connecting the comfort handle to the Access
Control or external controller with the connection cable,
the comfort handle is automatically active (see sec-
tion5.5 "Connecting the comfort handle"). Separate
activation is not required.
6.2 Operating and display elements
4
2
1
3

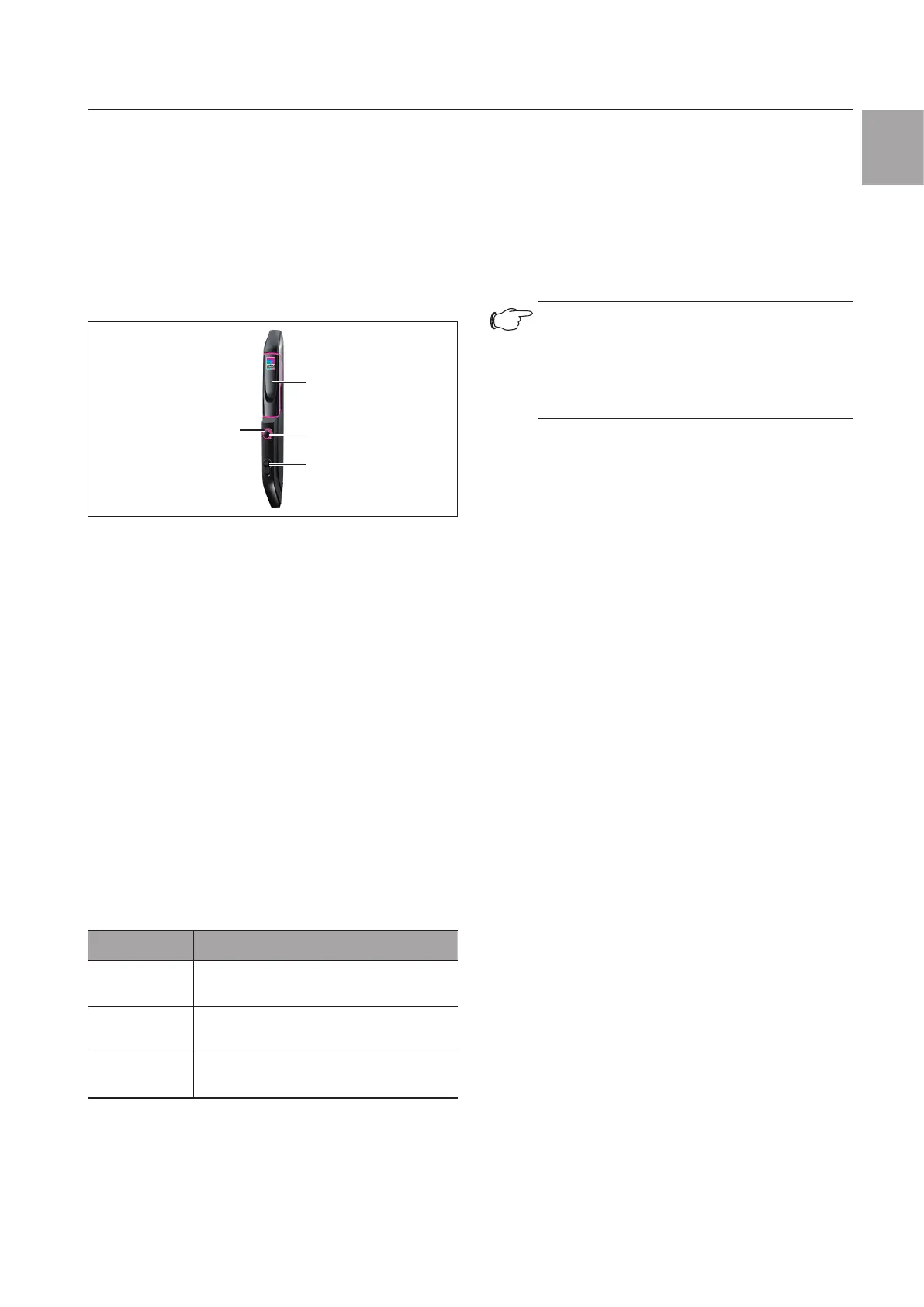

Fig.25: Front of the comfort handle
Legend
1 Handle lever
2 Switch
3 Master key (profile half-cylinder)
4 Multi-LED (ring)
6.3 Opening and closing the door
Opening the door and comfort handle
◾ Once enabled: Press the switch on the front of the
handle to open the handle lever.
The door can then be swung open.
Closing the door and comfort handle
◾ Close the door completely.
◾ Press the handle lever fully downwards until it latches
home.
6.4 LED displays
A multi-LED for the status display is integrated at the
front of the comfort handle (fig.25, item4). "Access"
mode is activated as standard for the multi-LED.
Colour Status
Blue (continu-
ous light)
Handle lever and door closed.
Green (contin-
uous light)
Handle lever enabled.
Yellow (contin-
uous light)
Handle lever and/or door open.
Tab. 1: Multi-LED displays
6.5 Operating the CMC III Processing Unit
from the website
After logging on to the CMC III Processing Unit, the
web interface for operating the device is displayed.
6.5.1 Monitoring tab
The description of the comfort handle is added and the
current status of the comfort handle can be viewed in
the Monitoring tab.
Note:
As the comfort handle does not have a
separate entry in the left tree structure, all
information on this point can be found in the
CMC III Access Control operating instruc-
tions (DK7030.202).
