6 Rittal CMC III online comfort handle VX
3 Product description
EN
3 Product description
3.1 Functional description and components
3.1.1 Function
The comfort handle functions as a door latch, handle
lever monitor and visual LED status display. A 40mm
semi-cylinder to DIN 18 252 serves as the master key.
This can be used to open the handle in an emergency.
If the lever handle is closed, the latch mechanism inte-
grated into the comfort handle locks automatically.
The handle can be incorporated into the CMCIII
system. This requires a CMCIII Access Control
(DK7030.202) which is attached near the door in
conjunction with a base system. An example of a
base system might be a CMCIII Processing Unit
(DK7030.000), a CMCIII Processing Unit Compact
(DK7030.010), a Rittal IoT Interface (SK3124.300)
and a Rittal PDU (DK7979.xxx, except PDU basic). In
such cases, the handle can be released via the base
system or using additional optional systems such as a
coded lock (DK7030.222/.223) or transponder reader
(DK7030.232/.233). The comfort handle has an identi-
fier enabling it to be detected automatically by the base
system.
Alternatively, the opening of the comfort handle can
also be controlled via an external controller. In such
cases, the external controller provides both the supply
voltage and the signal for opening the lever handle via
the PLC interface.
Note:
In the following text, the designation
"CMCIII Processing Unit" refers to the
"CMC III Processing Unit" variants and also
to the base systems. All text passages that
apply only to a specific variant are identified
accordingly.
3.1.2 Components
The CMC III online comfort handle VX consists of a
compact plastic housing in RAL 9005 or RAL 7035.
The handle lever, a switch, the master key (profile
half-cylinder) where applicable, and the multi-LED (ring)
are located on the front.
3.2 Proper use, foreseeable misuse
The CMC III online comfort handle VX is only used
for locking the door and monitoring the lever han-
dle. It may only be used in conjunction with a base
system and, where applicable, the Access Control
(DK7030.2020) or alternatively with activation via the
PLC interface. Any other use is not permitted.
The unit is state of the art and built according to rec-
ognised safety regulations. Nevertheless, incorrect use
may result in damage to or faults with the system and
other material assets.
Consequently, the unit must only be used properly
and in a technically sound condition! Any malfunctions
which impair safety should be rectified immediately!
Follow the operating instructions!
The intended use also includes the observance of the
documentation provided and fulfilling the inspection
and maintenance conditions.
Rittal GmbH & Co. KG is not liable for any damage
which may result from failure to comply with the docu-
mentation provided. The same applies to the non-ob-
servance of the valid documentation for any deployed
accessories and the base systems.
Inappropriate use may result in danger. Inappropriate
use includes:
– Use of impermissible tools.
– Improper operation.
– Improper rectification of malfunctions.
– Use of accessories not approved by Rittal GmbH &
Co. KG.
3.3 Scope of supply
– CMC III online comfort handle VX
– Accessories provided (fig.1)
– Installation Guide and Short User Guide
1x
1x M4x12 1x
1x
1x M5x8
1x
1x
M4x16
1x
4x16M4x25
1x

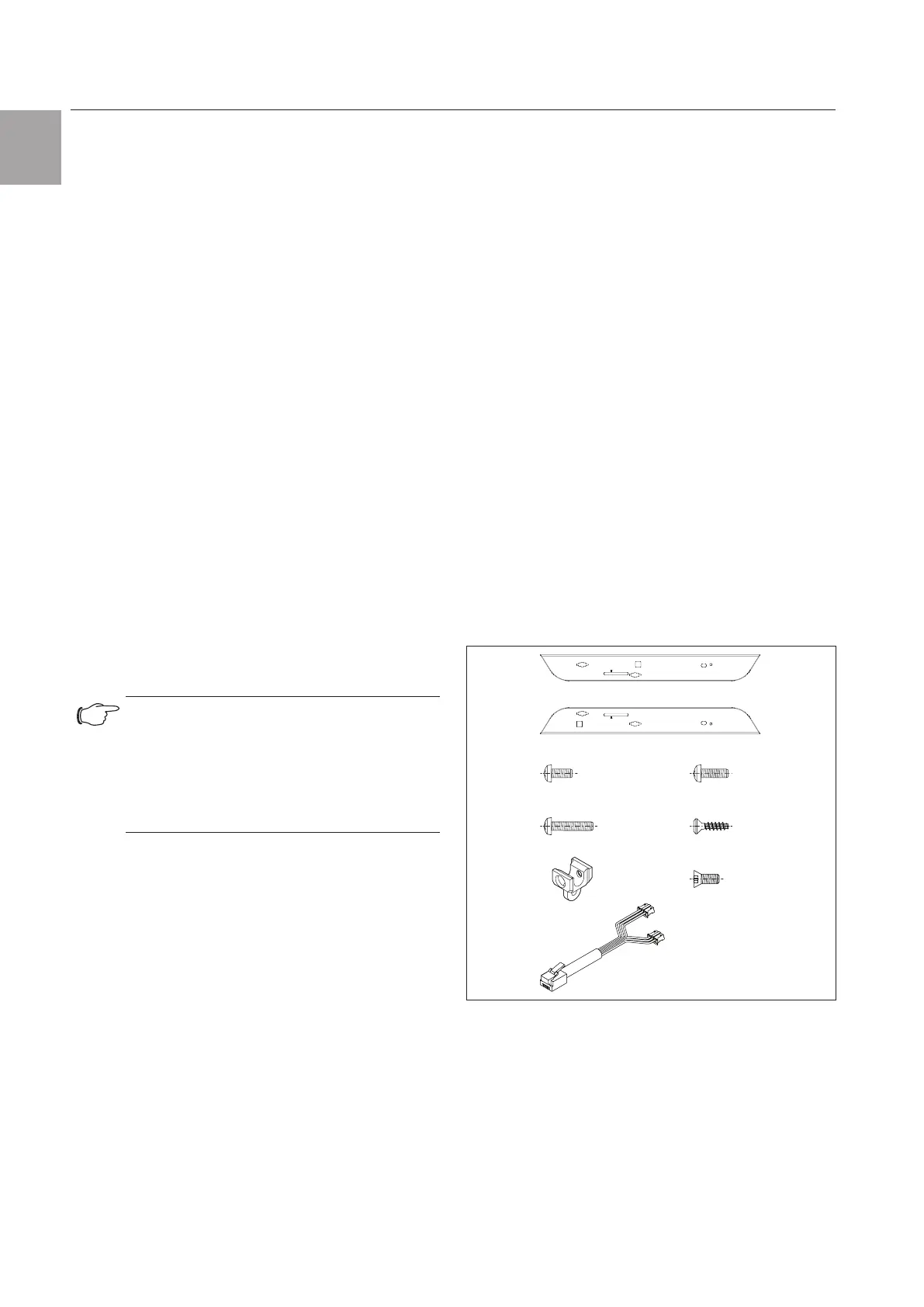

Fig.1: Accessories provided
