Rockwell Automation Publication 440R-UM010C-EN-P - September 2016 15
Power, Ground, and Wire Chapter 3
Connecting a Power Supply
Power for the GLT safety relay is provided by an external 24V DC power
supply source.
To comply with the CE Low Voltage Directive (LVD), power for the GLT
safety relay must come from a DC source compliant with safety extra low
voltage (SELV) or protected extra low voltage (PELV).
The following Rockwell Automation Bulletin 1606 power supply catalog
numbers are SELV- and PELV-compliant.
• 1606-XLP30E
• 1606-XLP50E
• 1606-XLP50EZ
• 1606-XLP72E
• 1606-XLP95E
• 1606-XLDNET4
• 1606-XLSDNET4

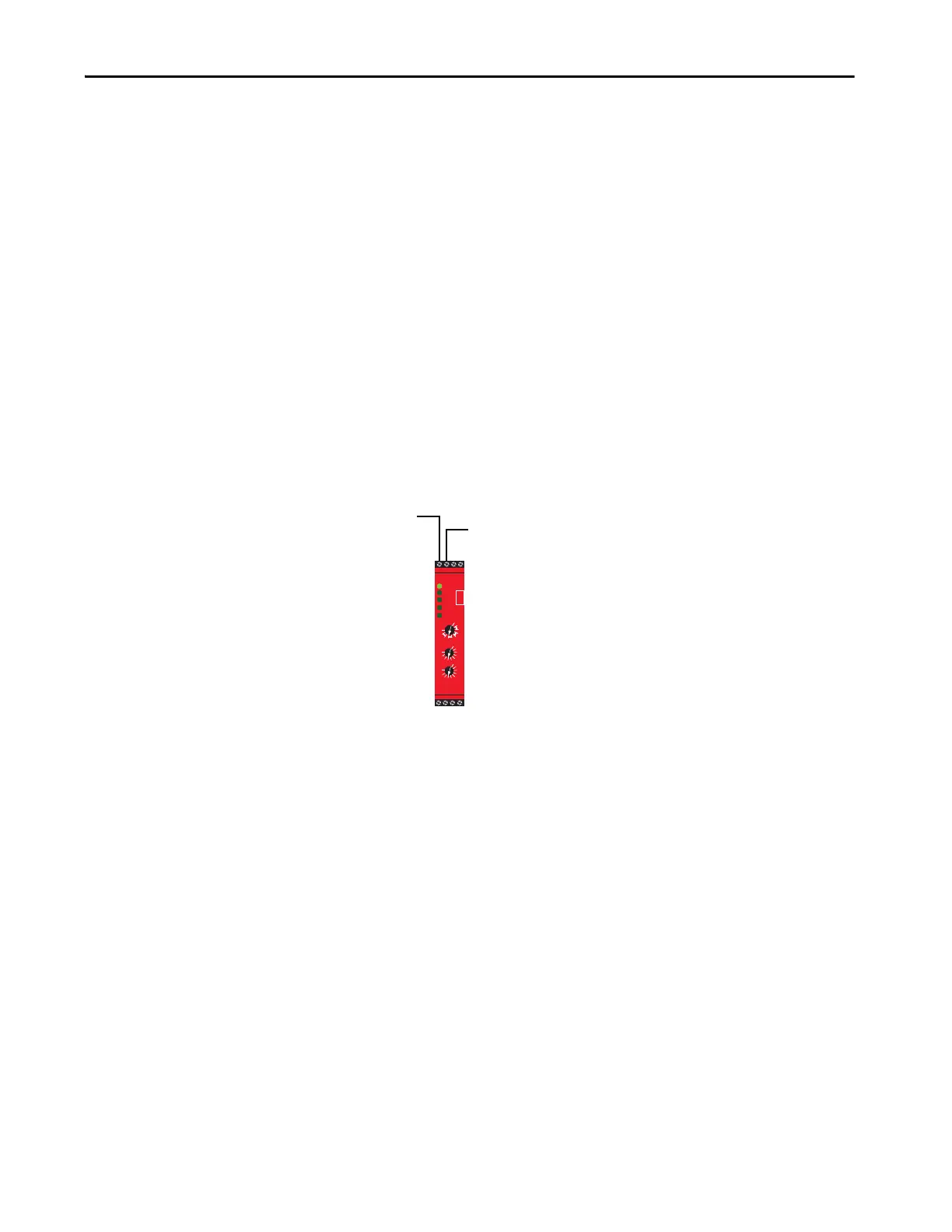

Figure 7 - Power Supply Connections
Connect +24V DC
to Terminal A1
Connect 24V Common
to Terminal A2
14
OUT
S11 S21
S22 S54S12
A1
PWR/Fault
IN 1
51/L61
Logic IN
RANGE
TIME
51
A2
L61
L12 L11 Y32 S44
B2
24
GLT
LOGIC
1
2
4
3
5
6
7
8
9
0
1
2
4
3
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
9
