Start Up 2-3

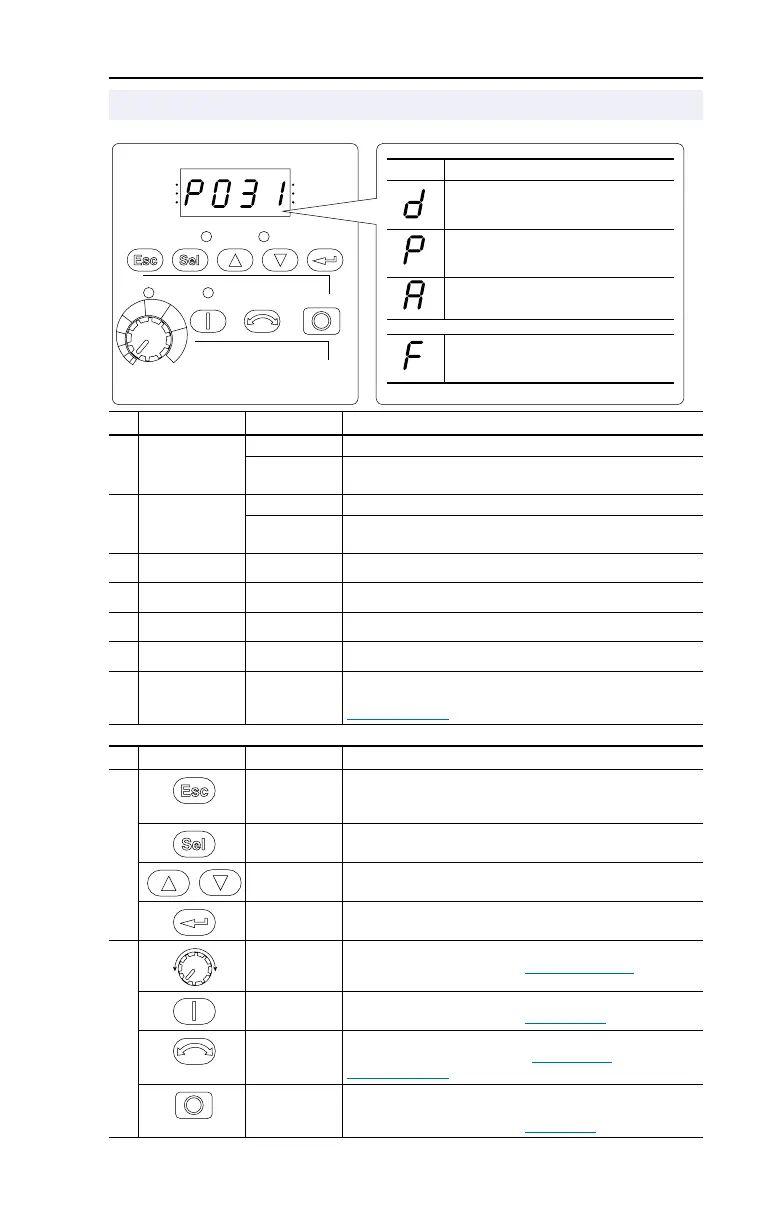

Integral Keypad
No. LED LED State Description
➊
Run/Direction
Status
Steady Red Indicates drive is running and commanded motor direction.
Flashing Red Drive has been commanded to change direction. Indicates
actual motor direction while decelerating to zero.
➋
Alphanumeric
Display
Steady Red Indicates parameter number, parameter value, or fault code.
Flashing Red Single digit flashing indicates that digit can be edited.
All digits flashing indicates a fault condition.
➌
Displayed Units Steady Red Indicates the units of the parameter value being displayed.
➍
Program Status Steady Red Indicates parameter value can be changed.
➎
Fault Status Flashing Red Indicates drive is faulted.
➏
Pot Status Steady Green Indicates potentiometer on Integral Keypad is active.
➐
Start Key Status Steady Green Indicates Start key on Integral Keypad is active.
The Reverse key is also active unless disabled by A095
[Reverse Disable]
No. Key Name Description
➑
Escape Back one step in programming menu.
Cancel a change to a parameter value and exit Program
Mode.
Select Advance one step in programming menu.
Select a digit when viewing parameter value.
Up Arrow
Down Arrow
Scroll through groups and parameters.
Increase/decrease the value of a flashing digit.
Enter Advance one step in programming menu.
Save a change to a parameter value.
➒
Potentiometer Used to control speed of drive. Default is active.
Controlled by parameter P038 [Speed Reference].
Start Used to start the drive. Default is active.
Controlled by parameter P036 [Star
t Source].
Reverse Used to reverse direction of the drive. Default is active.
Controlled by parameters P036 [Star
t Source] and A095
[Reverse Disable].
Stop Used to stop the drive or clear a fault.
This key is always active.
Controlled by parameter P037 [Stop Mode]
.
FAULT
VOLTS
AMPS
HERTZ
RUN
FWD
REV
PROGRAM
➊
➋
➍
➏
➒
➎
Menu Description
Display Group (View Only)
Consists of commonly viewed drive operating
conditions.
Basic Program Group
Consists of most commonly used
programmable functions.
Advanced Program Group
Consists of remaining programmable functions.
Fault Designator
Consists of list of codes for specific fault
conditions. Displayed only when fault is present.
➌
➑
➐
