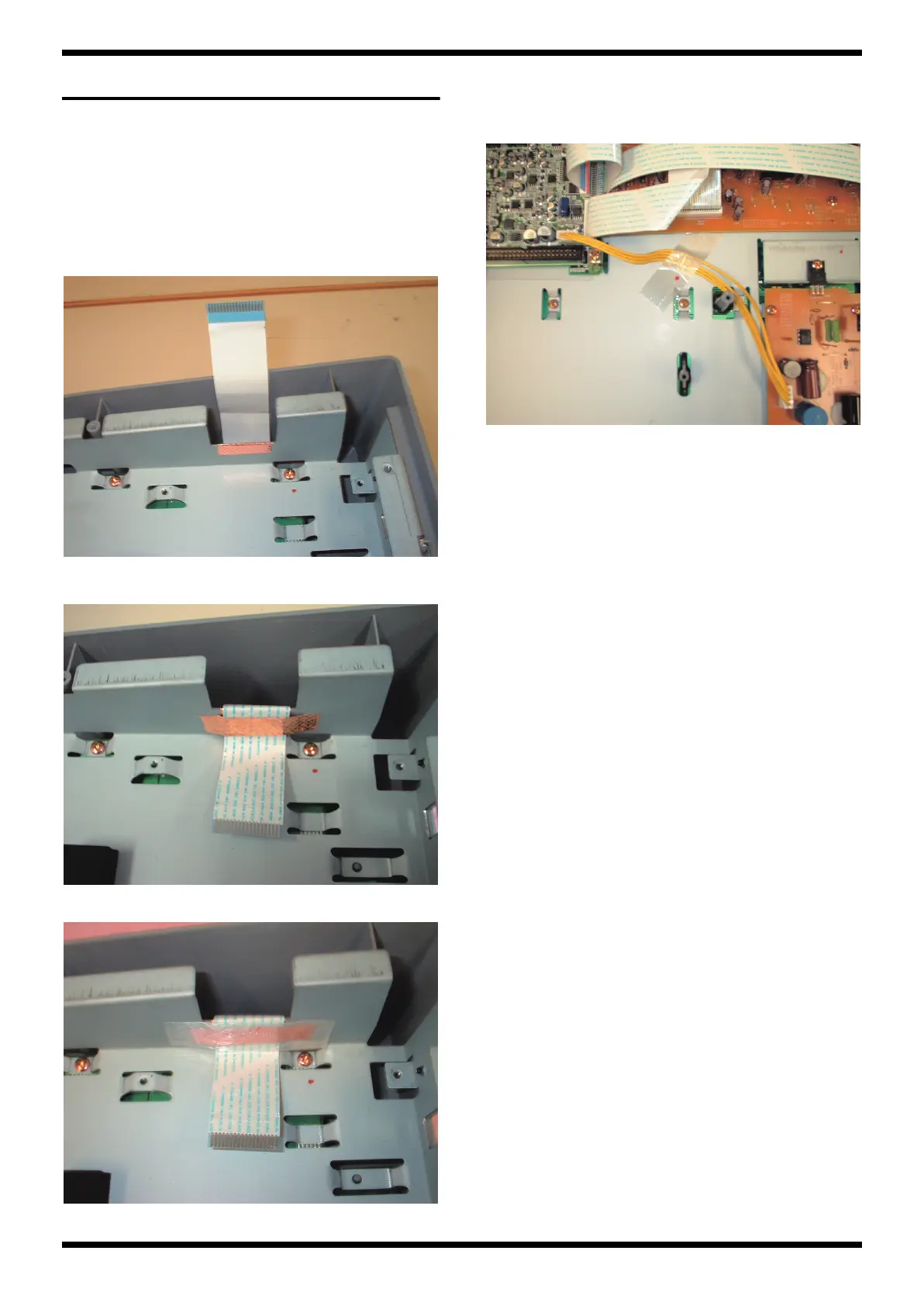

The wiring exchange method
BAN CARD BNCD-P=1.25-K-18-
150(#02124845)
When BNCD-P=1.25-K-18-150 (#02124845) is exchanged, please fix BAN
CARD to a chassis in the following procedure.
1. 1. You sticks 3M copper tape #2245 (#40346367) on the portion with which
BAN CARD and chassis are in contact
2. BAN CARD and a chassis are fixed by 3M copper tape #2245 (#40346367).
3. In addition, filament tape #3883 (#40122645) is stuck on a copper tape.
WIRING 5V POWER(#02896956)
When WIRING 5V POWER (#02896956) is exchanged, please fix to a chassis by
filament tape #3883 (#40122645) at the following figure.
