Roland EP-70 User Manual

ep-70/90 Feb. 2000
2
DemoReverb Chorus
Power
ChoirStringsOrgan
E.PianoPiano 2Piano 1
Rec
On/OffSound
Play
Vibra-
phone
Harpsi-
chord
MaxMin
Volume
4
2
3
0
6
Beat
Metronome
12 0
14 4
60
80
96
10 8
40
Tempo
16 8
19 2
208
F C-KEYTOP SX1H CLR
(01670490)
F C-KEYTOP SX2H CLR
(01670489)
M R-KNOB MF-A BLK/LCG
(01896823)
14M/M ROTARY POT. RK14K1230 10KB
(00459901)
M R-KNOB MF-A BLK/LCG
(01896823)
11M/M ROTARY POT. RK11K1140 10KB
(01897245)
F C-KEYTOP SX4H BLK
(01670501)
F C-KEYTOP SX2H CLR
(01670489)
MR-KNOB MF-A BLK/LCG
(01896823)
ROTARY SWITCH
SRBV15-F0820-11
(01897234)
LED (RED) LNJ282RKRXE
(00899023)
ALL SWITCHS
TACT SWITCH EVQ11A H=5.0
(01340290)
TOP VIEW
F C-KEYTOP SX1H BLK
(01670512)
Power
DC In 9V
1200 mA
Power
On
Off
6.5MM JACK
HLJ7101-01-3010
(13449283)
DC JACK
HEC2305-01-250
(13449720)
CORD HOOK
(22365714)
MIDI CONNECTOR
YKF51-5054
(13429825)
A
B B
A A A
A
C
MIDI
Out In
Output
InputPedal
Damper R
R
Soft L
(
Mono
)
L
(
Mono
)
G S-BUTTON S1H BLK
(12499175)
POWER SWITCH SDKLA1-B
(01676512)
A 40011501 3x8 Pan Sems BZC
B 40011312 3x8 Binding P-tite BZC
C 40011101 3x8 Binding B-tite BZC
REAR VIEW

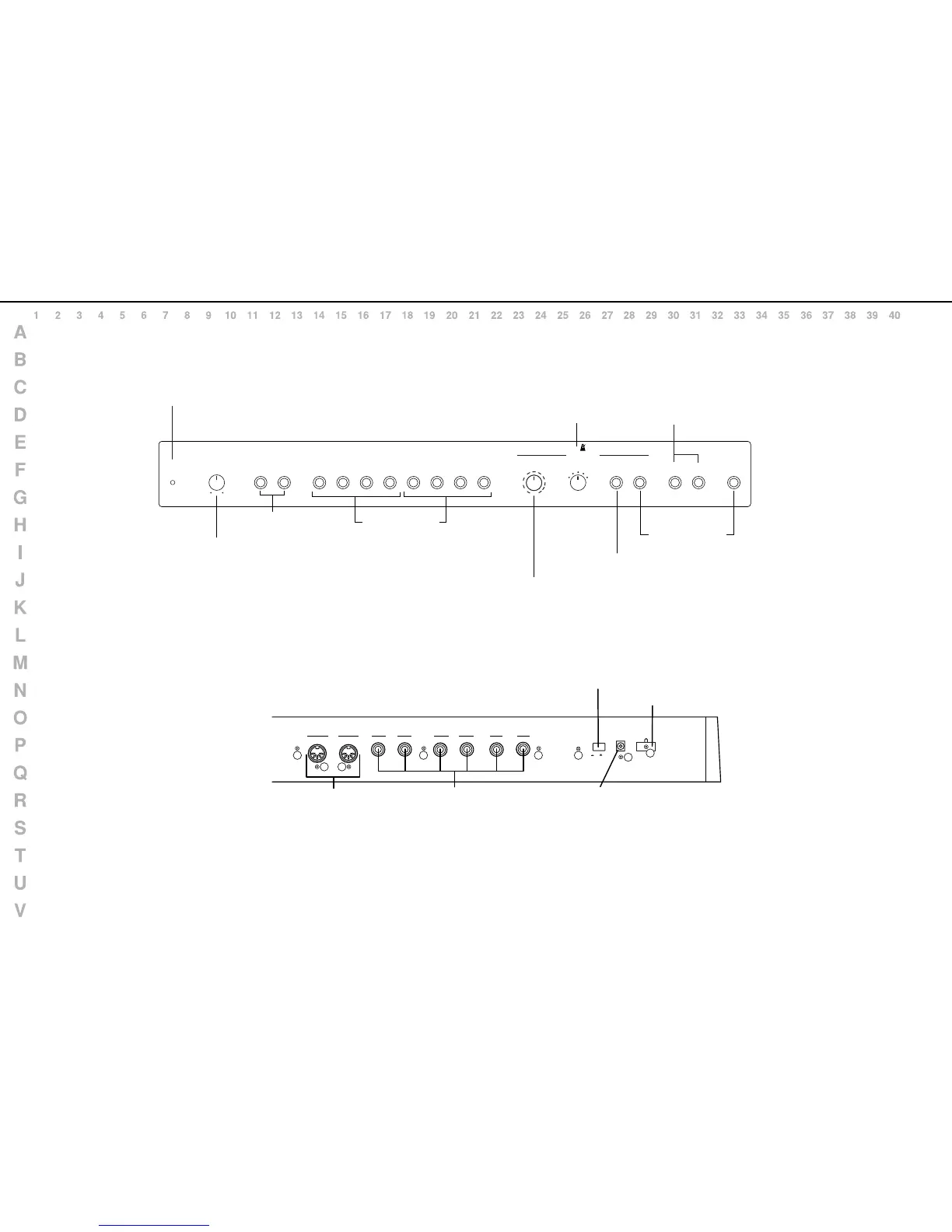

LOCATION OF CONTROLS
／パネル配置図
