ep-70/90 Feb. 2000
3
Å
Ï
Ç
Î
‰
ı
Ì
¬
ı
‰
‰
ı
Å
Ç
Ç
Ç
q
w
e
t
y
!5
!6
!0
o
!5
r
!8
!2
!4
i
!1
!3
!9
u
Ó
ı
q
!7
@0
Ç
ı for ep-70
Ò for ep-90
‰
Ò
ep-90 only
Ô
Å
Å

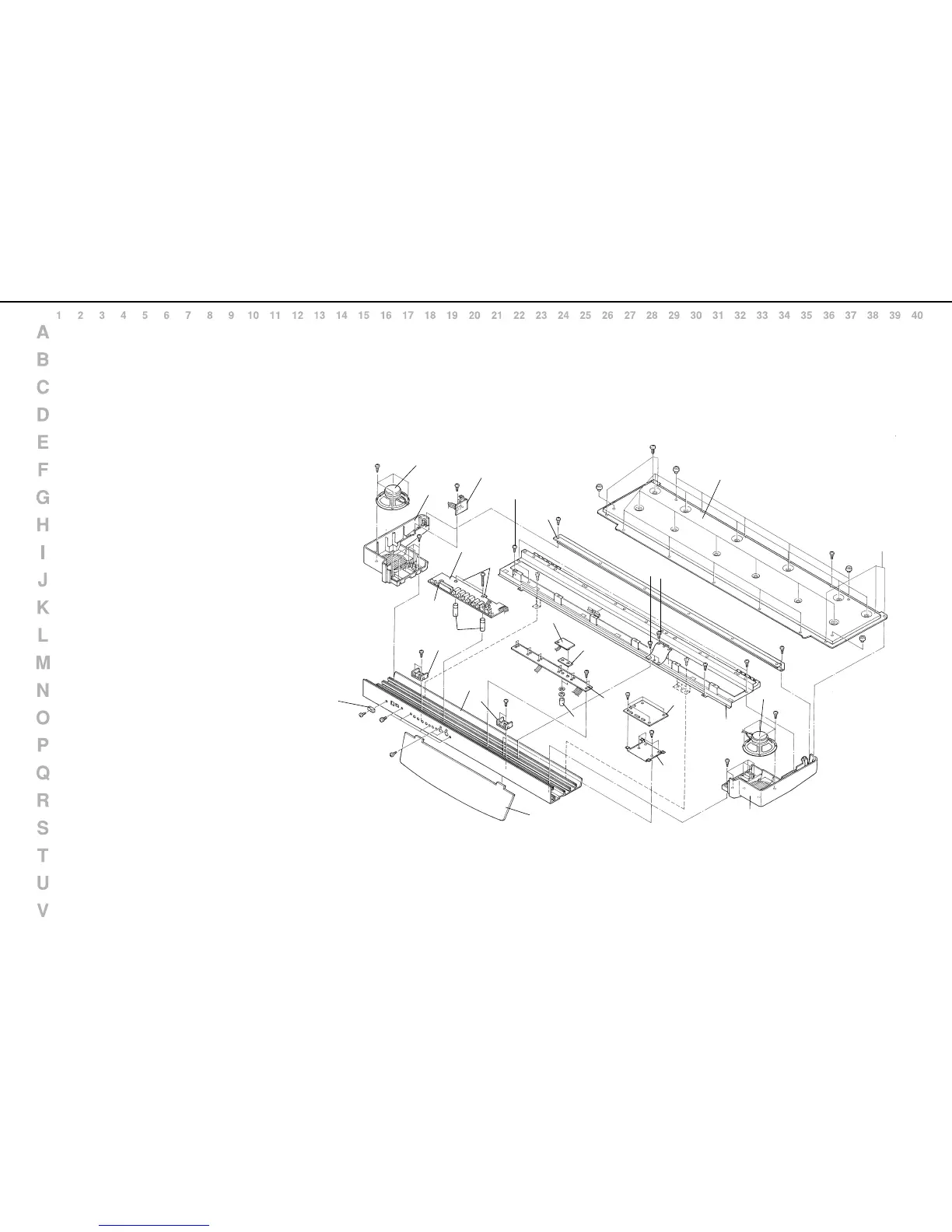

EXPLODED VIEW (MAIN UNIT)
[PARTS]
No. PART CODE PART NAME
q
12419112 SPEAKER PD-12270C
w
01896867 SIDE PANEL L
e
K
71349067 PHONES BOARD ASSY
●
71349890 PHONES BOARD ASSY
r
K
22235333 BLIND 222-333
● 22235346 BLIND 222-346
t
K
71349089 BOTTOM ASSY
● 71349201 BOTTOM ASSY
y 71349090 JACK BOARD ASSY
u 01903434 COLLAR BUSHING SB-320 H=20 FAI=6.6 for ep-70 up tp S/No.ZM94400
for ep-90 up to S/No.ZM93500
i 12499175 G S-BUTTON S1H BLK
o
71349078 B&T BOARD ASSY
!0
01898645 PWB SPACER
!1
71349056 SWITCH BOARD ASSY
!2
K
71349101 MAIN BOARD ASSY
●
71349190 MAIN BOARD ASSY
!3 01566134 MAIN HOLDER
!4
01896823 M R-KNOB MF-A BLK/LCG
!5 22205831 MR HOLDER
!6
K
01896889 TOP PANEL
●
01896967 TOP PANEL
!7
01896901 MUSIC REST
!8
22365714 CORD HOOK
!9
01896878 SIDE PANEL R
@0
K
7629320000 KEYBOARD ASSY SK-8P76-B
●
7628520000 KEYBOARD ASSY SK-8P88-A
[SCREWS]
No. PART CODE PART NAME
Å
40238501 SCREW 4x8 BINDING TAPTITE P BZC
ı
40013690 SCREW 3x8 VWH TAPTITE B ZC
Ç
40011312 SCREW 3x8 BINDING TAPTITE P FE BZC
Î 40344123 SCREW 3x27 PAN TAPTITE B ZC for ep-70 up tp S/No.ZM94400
for ep-90 up to S/No.ZM93500
‰
40011056 SCREW 3x6 BINDING TAPTITE B ZC
Ï
40011267 SCREW 3x6 BINDING TAPTITE P FE ZC
Ì
40011501 SCREW 3x8 PAN MACHINE W/SW FE BZC
Ó 40011312 SCREW 3x8 BINDING TAPTITE P FE BZC
È
40011101 SCREW 3x8 BINDING TAPTITE B FE BZC
Ô
40011123 SCREW 4x8 BINDING TAPTITE B BZC
40011056 SCREW 3x6 BINDING TAPTITE B ZC
Ò 40011390 SCREW 3x6 BINDING TAPTITE S
W/INTERNAL TOOTH WASHER BZC
Important: After replacing wirings or shifting then for repairnig purpose,
restore original clamping and dressing.
重 要： 修理等でワイヤリングを交換したり位置をズラした場合は、
必ず元の状態（位置）に戻してください。
／分解図（本体）
K
for ep-70
●
for ep-90
