5
Mar.2005 GW-7

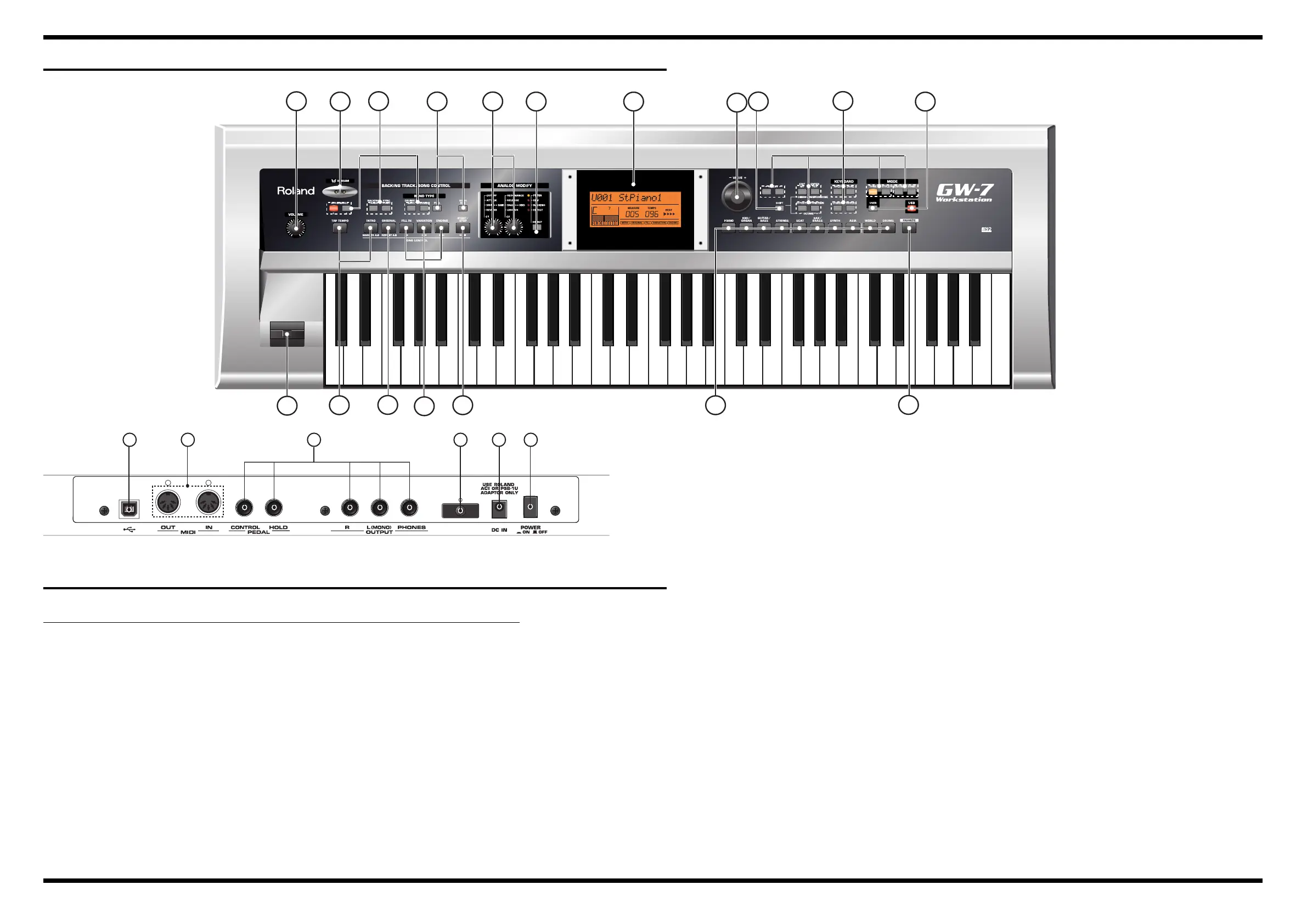

LOCATION OF CONTROLS
fig.panel.eps
fig.rear.eps
LOCATION OF CONTROLS PARTS LIST
NO
PART CODE CATEGORY PART NAME DESCRIPTION Q’TY
1 03787089 KNOB,BUTTON R-KNOB SF BY MOONPO 1
02455234 POTENTIOMETER 12M/M ROTARY POTENTIOMETER EVJY15F02B14 1
2 02230578 MISCELLANEOUS LED SPACER LDS-50R 1
12169368 MISCELLANEOUS LED SPACER LDS-40B 1
*3,4 03671756 KNOB,BUTTON D S-KEYTOP SX2H-B GRS BY MOONPO 13
5 03671767 KNOB,BUTTON NS-KEY TOP MX1H BY MOONPO 15
6 01783923 KNOB,BUTTON N S-KEYTOP MD1H 3
7 03787089 KNOB,BUTTON R-KNOB SF BY MOONPO 2
02455223 POTENTIOMETER 9M/M ROTARY POTENTIOMETER EVUF2KFK4B14 2
8 03897445 CASING DISPLAY COVER 1
03902867 DISPLAY UNIT LCD UNIT UCZ24080 1
40569678 SCREW HEXSOCKET 3X8 B TIGHT NI 4
9 03787090 KNOB,BUTTON R-KNOB LF BY MOONPO 1
03122134 ENCODER ROTARY ENCODER EC12E2420802 1
10 03234723 BENDER UNIT BENDER PB-H0204 1
11 02781189 JACK,EXT TERMINAL USB CONNECTOR YKF45-0021 1
12 02568867 JACK,EXT TERMINAL MIDI JACK DIN HDC-052A-12 1
13 00569278 JACK,EXT TERMINAL 6.5MM JACK LGR4609-7100 5
14 22365714 MISCELLANEOUS CORD HOOK 236-714 1
15 13449720 JACK,EXT TERMINAL DC JACK HEC2305-01-250 1
16 12499175 KNOB,BUTTON BUTTON JSPUE001A 1
01676512 SWITCH PUSH SWITCH SDKLA10200 1
3,4,5,6 02891789 SWITCH TACT SWITCH SKRGADD010 H=5.0 44
* 03671756 DS-KEYTOP SX2H-B GRS BY MOONPO is for double type.
When you change the keytop of No.4 for repair, please cut this keytop.
2
4
4
7
8
3
3
1
4
9
4
5
6
6
10
6
5
5
11 12 14 15 16 13
