9
GW-7
fig.bunkai-3.eps

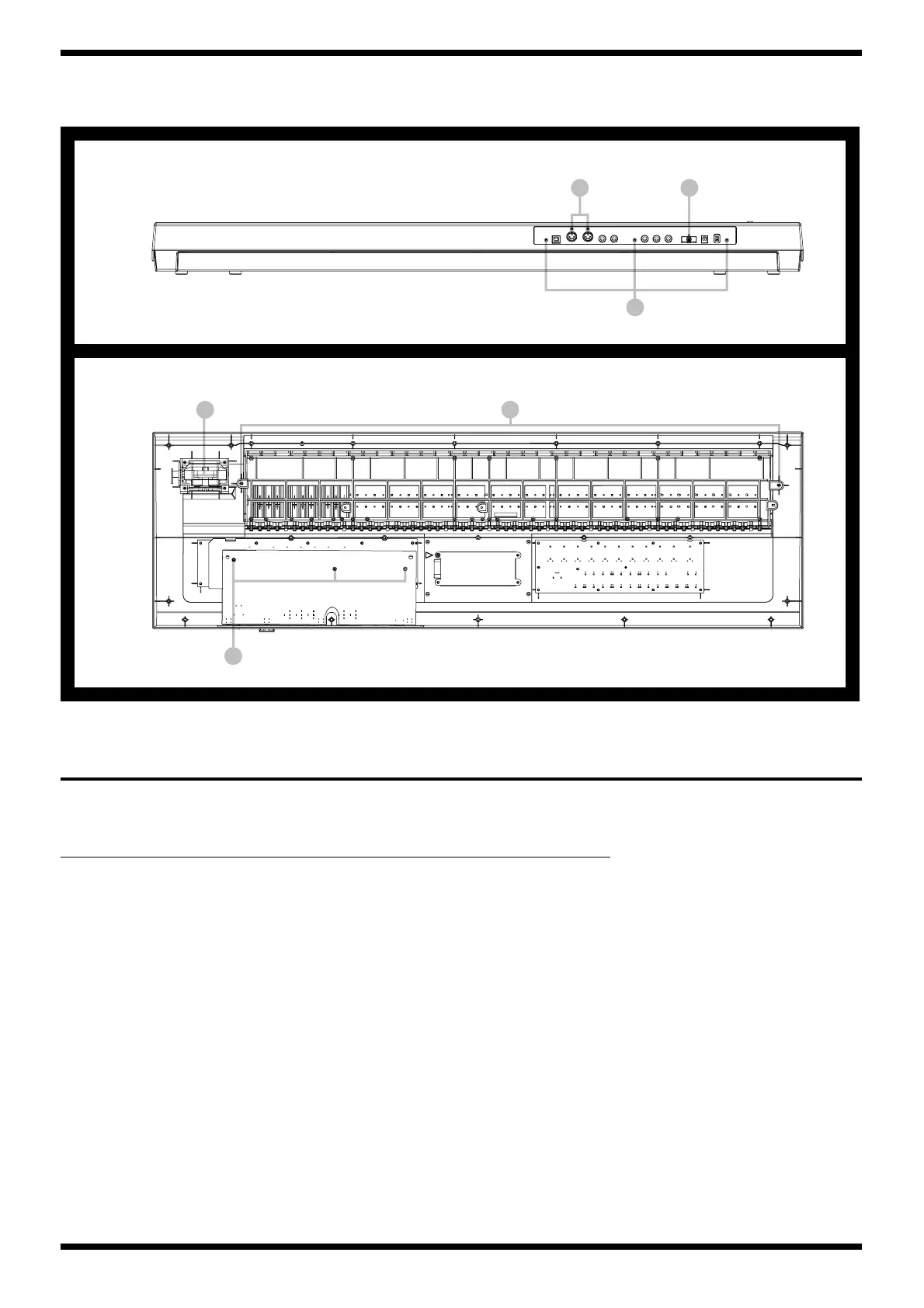

EXPLODED VIEW PARTS LIST 2
[Screw]
NO PART CODE PART NAME DESCRIPTION Q’TY
A 40569678 HEXSOCKET 3X8 B TIGHT NI 4
B ******** “NUT + WASHER” “Attached to the ROTARY ENCODER ” 1
C 40011301 SCREW 3X6 BINDING TAPTITE P BZC 4
D 40011312 SCREW 3X8 BINDING TAPTITE P BZC 30
E 40011334 SCREW 3X12 BINDING TAPTITE-P FE BZC 14
F 40012490 SCREW 4X10 BINDING TAPTITE P BZC 21
G 40012956 SCREW M3X8 PAN MACHINE W/SW+PW FE BZC 3
H 40011512 SCREW M3X12 PAN MACHINE W/SW BZC 1
Rear
View 3
D
G
D
D
E H
To Next Page
