HP-1
StringsOrgan1
Harpsi-
chord
Light Medium Heavy Fixed
Piano1
Demo
Reverb
Key Touch
Piano2 E.Piano Organ 2 ChoirFunction
Min Max
Volume
ATTENTION:RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIRRISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELETRICTO REDUCE THE RISK OF FIRE OR ELETRIC
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION
.
N225
"THIS CLASS (B) DIGITAL APPARATUS COMPLIES WITH
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS"
"THIS CLASS (B) DIGITAL APPARATUS COMPLIES WITH
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS"
"CET APPAREIL NUMERIQUE DE LA CLASSE (B) RESPECTE LE
REGLEMENT SUR LE MATERIEL BROUILLEUR DU C ANADA"
"CET APPAREIL NUMERIQUE DE LA CLASSE (B) RESPECTE LE
REGLEMENT SUR LE MATERIEL BROUILLEUR DU C ANADA"
AC
MIDI
O
ut
In
Pdle a
Output Input
RR
L (Mono) L (Mono)
S
tereo Stereo
AC 100
-
240V~50/60Hz
MODEL
SERIAL NO.
MADE IN ITALYROL AND EUROPE spa
W
E
R
q

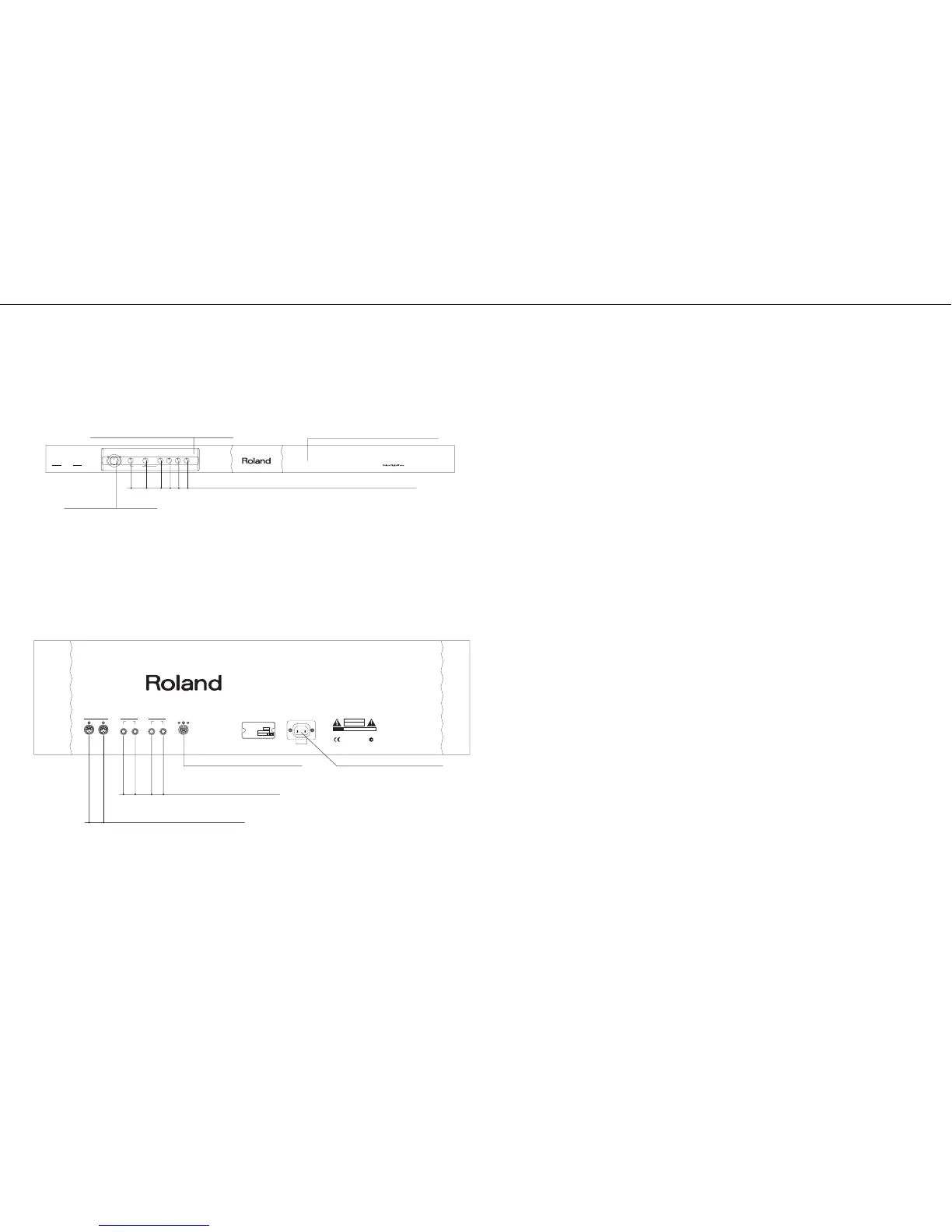

BLACK KNOB HP-730/530E
Cod. 22485316
ROT. POT. 10KB 14K12C
Cod. 13289251
5P DIN SOCKET YKF51-5048 (2PCS)
Cod. 13429676
JACK SOCKET HLJ7101-01-3010
Cod. 13449283
REAR VIEW
DIN SOCKET YKF51-5031
Cod. 00340223
UNIVERSAL AC INLET ON PCB
Cod. J3449103
VARN.+SILK. TEMPLATE F/CONTROL BLIND
Cod. 7772912000
VARN.+SILK. CONTROL BLIND HP-1-RW
Cod. 7772913000
2-BUTTON GROUP D. 9.5
Cod. K2478349
SWITCH TP-1101A / EVQ-PAE 05 R
Cod. J3169105
LED DIODE TLHR4401 - RED
Cod. 15029284RI
No. Part No. Description
1 7772916000 MDF MUSIC REST (ROSEWOOD) HP-1-RW
7774404000 MDF MUSIC REST (SATIN MAHOGANY) HP-1-MH
2 J2329105 HINGE F/MUSIC REST
3 K2238113 MUSIC SCORE HOLDER
4 7772915000 MDF BORED TOP CBNT (ROSEWOOD) HP-1-RW
7774405000 MDF TOP CABINET (SATIN MAHOGANY) HP-1-MH
5 K2128134 COUPLING PIN F/TOP CBNT-REAR PANEL
6 K2128135 COUPLING PIN FOR TOP CBNT
7 7772902000 CONTROL PCB ASSY HP-1
8 7772913000 VARN.+SILK. CONTROL BLIND HP-1-RW
9 22485316 BLACK KNOB HP-730/530E
10 K2268121 RED FELT MM 1250X12X1.5
11 K1188132 KEYBOARD SUPPORT R178
12 J2589109 88-KEY KEYBOARD ASSY TP/30 HP-2E RW
13 3249559701 SWITCH CAP
14 K116810602 END-BLOCK POWER ON + LED
15 K116810501 RIGHT END-BLOCK HP-136
16 01453245 AC PUSH SWITCH SDDLB1B2D TV5
17 7699410000 LED ASSY
18 7772903000 PHONES PCB ASSY HP-1/2e/3e
19 7772401000 PRIMARY PCB ASSY KR-777
20 K2458148 TRANSFORMER 100-240 HP-2E-RW
21 02896112 LOUDSPEAKER PD-12355AON
22 7772914000 VARN.+SILK. REAR PANEL HP-1-RW
23 7772911000 CABINET ASSY (ROSEWOOD) HP-1-RW
7774406000 CABINET ASSY (MAHOGANY) HP-1-MH
24 7772912000 VARN.+SILK. TEMPLATE F/CONTROL BLIND
25 7772904000 POWER & AMP. PCB ASSY HP-1
26 7772901000 MAIN PCB ASSY HP-1
27 J2159103 DOUBLE ELASTIC PLATE
28 40016756 NUT M12 HLJ0999-01-360 M12
29 K2248168 LOUDSPEAKER GRILL HP-1-RW
(SCREW)
A J2289212 SCREW 3.5X10 TC TC PR BRUN
B J2289116 SELF TAP.SCREW 3.5X13 TC TC
C J2289227 SCREW 3.9X20 TC PR TFR T.8 BLACK PLATED
D J2289150 SCREW 2.9X16 TC PR TFR H.7
E J2289130 SCREW 2.9X13 TC TC PR TROP
F J2289101 SELF TAP. SCREW 2.9X 6 TC TC
G J2289118 SCREW 2.9X16 TC TC PR BRUN
H J2283213 SCREW 3.9X16 TC TC
I J2289110 SELF LOCK.SCREW M4X20 TCTC H. 9.5
L K2288107 SCREW 3.9X13.5 TC PR TFR H.8
M J2289125 SCREW 2.9X10 TC TC PR TROP
N J2139114 FLAT WASHER I/D 5X14 TH. 1
O K2288110 SCREW M5X20 TC TC TFR H9.5 BRUN
P J2289110 SELF LOCK.SCREW M4X20 TCTC H. 9.5
Q J2289147 SELF LOCK.SCREW M3X12 TCTC H.6
R J2289135 SELF LOCK.SCREW M4X 7 TCTC T.8
