Roland HP-1 Service Notes

4
HP-1 MH/RW, HP-2e RW/LA
Mar, 2002
ATTENTION:RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIRRISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELETRICTO REDUCE THE RISK OF FIRE OR ELETRIC
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION
.
N225
N225
"THIS CLASS (B) DIGITAL APPARATUS COMPLIES WITH
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS"
"THIS CLASS (B) DIGITAL APPARATUS COMPLIES WITH
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS"
"CET APPAREIL NUMERIQUE DE LA CLASSE (B) RESPECTE LE
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA"
"CET APPAREIL NUMERIQUE DE LA CLASSE (B) RESPECTE LE
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA"
AC
MIDI
O
ut
In
Pdle a
Output Input
RR
L (Mono) L (Mono)
S
tereo Stereo
AC 100
-
240V~50/60Hz
MODEL
SERIAL NO.
MADE IN ITALYROLAND EUROPE spa
W
E
R
q
5P DIN SOCKET YKF51-5048 (2PCS)
Cod. 13429676
JACK SOCKET HLJ7101-01-3010
Cod. 13449283
LED DIODE TLHR4401 - RED
Cod. 15029284R1
2-BUTTON GROUP W/DIFF. D.9,5
Cod. K2478349
BLACK KNOB
Cod. 22485316
ROT.POT. 10KB14K12C
Cod. 13289251
LED SPR-325MVWT31
Cod. 01121689
2-BUTTON GROUP D.9,5
Cod. K2478350
SILKSCREENED PLEXIGLASS HP-2E-RW
Cod. 7773010000
DISPLAY TYPE LB-603VF - RED
Cod. 00239767
DIN SOCKET YKF51-5031
Cod. 00340223
UNIVERSAL AC INLET ON PCB
Cod. J3449103
2-BUTTON GROUP W/DIFF. D.9,5
Cod. K2478349

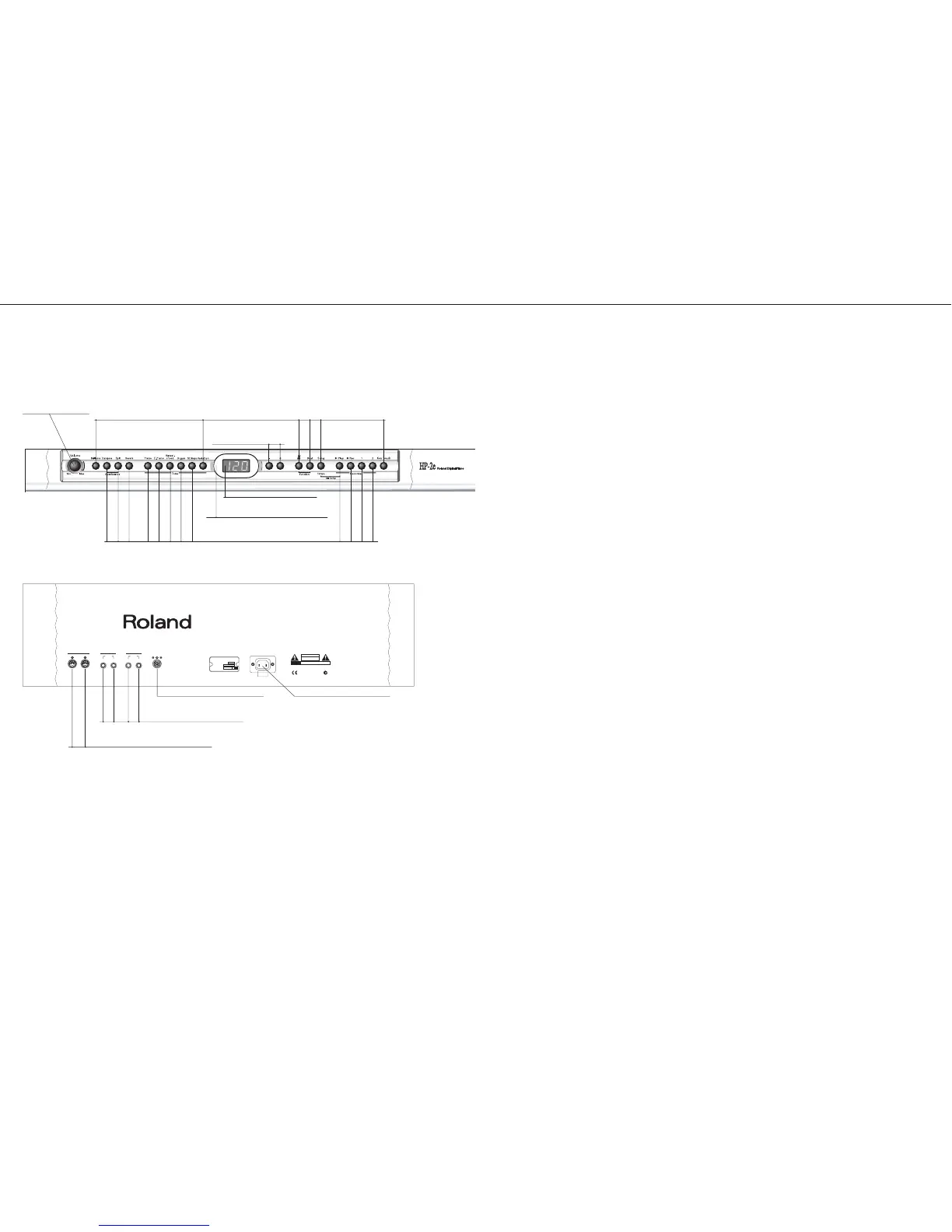

LOCATION OF CONTROLS HP-2e-RW/LA
REAR VIEW
PARTS LIST OF EXPLODED VIEW HP-2e-RW/LA
No. Part No. Description
1 7773012000 BORED MUSIC REST HP-2E/3E-RW
7774307000 VARN. MUSIC REST (OAK) HP-2E-LA
2 J2329105 HINGE F/MUSIC REST
3 K2198111 MUSIC SCORE HOLDER HP-2E-RW
7774311000 VARN. MUSIC SCORE HOLDER HP-2E-LA
4 7773011000 BORED MDF TOP CBNT HP-2E-RW
7774308000 MDF TOP CABINET (OAK) HP-2E-LA
5 J2589109 88 KEY KEYBOARD ASSY TP/30
6 K2268127 BLACK ADH. FELT 1320X9X2.5 MM.
7 K2148115 STOP PIN F/MUSIC SCORE HOLDER
K2148116 STOP PIN F/MUSIC SCORE HOLDER
8 00890990 LOGO BADGE ROLAND (GOLDEN)
9 K2128134 COUPLING PIN F/TOP CBNT-REAR PANEL
10 K2128135 COUPLING PIN FOR TOP CBNT
11 K2268149 ADHESIVE BLACK FELT MM540X15X1
12 7773008000 VARN.+SILK. REAR PNEL HP-2E-RW
7774305000 VARN.+ SILK. REAR PANEL HP-2E-LA
13 K2248160 AC SOCKET HOLDER
14 K2268159 CUSHION F/LID BLIND
15 K2128133 LID GEAR
16 7773013000 BORED SLIDE LID HP-2E-RW
7774309000 BORED MDF SLIDE LID (OAK) HP-2E-LA
17 K2128132 SUPPORT F/SHAFT STAY HP-2E-RW
18 K2268121 RED FELT MM 1250X12X1.5
19 22485316 BLACK KNOB HP-730/530E
20 K2478349 2-BUTTON GROUP D. 9.5 W/DIFFUSOR
21 K2478350 2-BUTTON GROUP D.9.5
22 7770025000 VARN. LID BLIND HP-337E
23 7773010000 SILKSCREENED PLEXIGLASS HP-2E-RW
24 7773014000 SHAFT STAY
25 7773015000 TOP CABINET BLIND HP-2E-RW
7774301000 TOP CABINET BLIND (OAK) HP-2E-LA
26 7773009000 VARN.+SILK. CONTROL BLIND HP-2E-RW
7774304000 VARN.+SILK. CONTROL BLIND HP-2E-LA
27 7773007000 VARN.+SILK.TEMPLATE F/TOP CABINET HP-2e
7774306000 VARN.+SILK. CONTROL PANEL BLIND HP-2E-L
A
28 7773006000 CABINET ASSY HP-2E
7774310000 CABINET ASSY (OAK) HP-2E-LA
29 7773002000 CONTROL PCB ASSY HP-2e
30 3249559701 SWITCH CAP
31 K1168114 RIGHT END BLOCK HP-2E RW
7774302000 RIGHT VARN. END-BLOCK HP-2E-LA
32 K1168115 LEFT END BLOCK HP-2E-RW
7774303000 LEFT VARN. END-BLOCK HP-2E-LA
33 K2128131 LEFT GUIDE FOR SLIDE LID
34 K2128130 RIGHT GUIDE FOR SLIDE LID HP-2e-RW
35 K1188132 KEYBOARD SUPPORT R178
36 7695813000 VARNISHED WOOFER NET
37 7773003000 POWER AMP. PCB ASSY HP-2E
38 7699410000 LED ASSY
39 7772401000 PRIMARY PCB ASSY KR-777
40 7772903000 PHONES PCB ASSY HP-1/2e/3e
41 7773001000 MAIN PCB ASSY HP-2e
42 K2268158 REST RUBBER NAIL F/LID
43 00239767 DISPLAY TYPE LB-603VF (RED)
44 13289251 ROT. POT. 10KB 14K12C
45 01453245 AC PUSH SWITCH SDDLB1B2D TV5
46 J2289113 NUT 3MA H.3
47 22415596 LOUDSPEAKER CF160138-01 6 OHM
48 K2458148 TRANSFORMER 100-240 HP-2E-RW
49 40016756 NUT M12 HLJ0999-01-360 M12
(SCREW)
A J2289212 SCREW 3.5X10 TC TC PR BRUN
B J2289116 SELF TAP.SCREW 3.5X13 TC TC
C J2289150 SCREW 2.9X16 TC PR TFR H.7
D J2289227 SCREW 3.9X20 TC PR TFR T.8 BLACK PLATED
E K2288107 SCREW 3.9X13.5 TC PR TFR H.8
F J2289193 SELF LOCK.SCREW M3X6 TC TC H.6
G J2289135 SELF LOCK.SCREW M4X 7 TCTC T.8
H J2289125 SCREW 2.9X10 TC TC PR TROP
I J2289102 SELF TAP.SCREW 2.9X10 TC TC
L J2289115 SCREW 3.5X9.5 TC PR TFR H.8
M J2289130 SCREW 2.9X13 TC TC PR TROP
N J2289213 SELF TAP.SCREW 3.9X16 TC TC
O J2289142 PITCH SCREW M5X25 TC TC
P K2288110 SCREW M5X20 TC TC TFR H9.5 BRUN
Q J2289110 SELF LOCK.SCREW M4X20 TCTC H. 9.5
R J2289221 SELFLOCK. SCREW M4X10 TC TC TFR 9.5
S J2289108 SELF LOCK.SCREW M3X10 TCTC H. 6
T J2289118 SCREW 2.9X16 TC TC PR BRUN
U J2289252 SELF TAP. SCREW 3,9X25 TC TC
V J2289147 SELF LOCK.SCREW M3X12 TCTC H.6
Z J2289101 SELF TAP.SCREW 2.9X 6 TC TC
