Roland HP-1 Service Notes

8
HP-1 MH/RW, HP-2e RW/LA
Mar, 2002

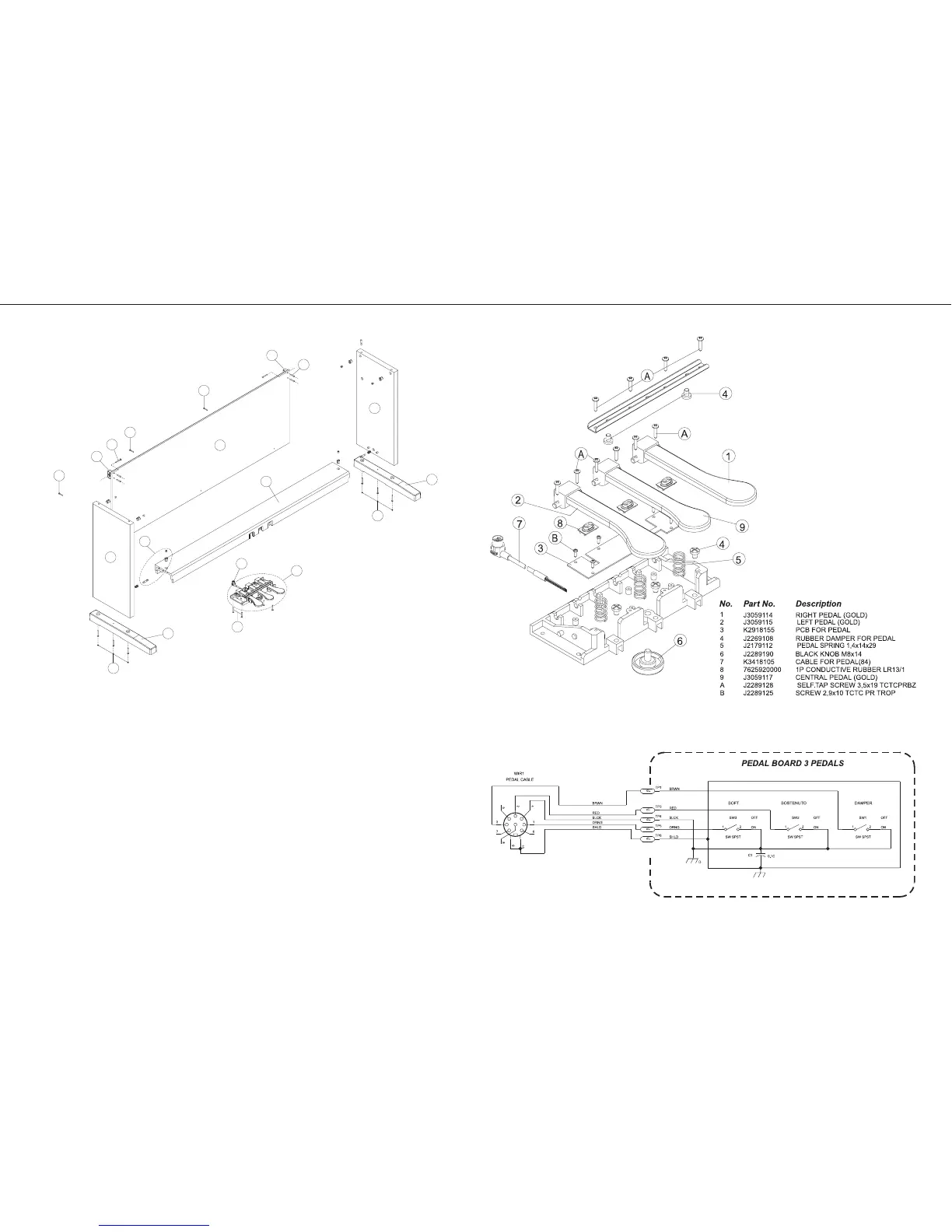

STAND EXPLODED VIEW KS-2e-RW/LA
A
A
C
8
8
A
A
1
3
2
No. Part No. Description
1 K1148151 REAR PANEL (OAK) KS-2E-LA
K1148148 REAR PANEL KS-2E/KS-3E/KS7E
2 7897001000 RIGHT SIDE PANEL ASSY (OAK) KS-2E-LA
7896601000 RIGHT SIDE PANEL ASSY KS-2E
3 7897002000 LEFT SIDE PANEL ASSY (OAK) KS-2E-LA
7896602000 LEFT SIDE PANEL ASSY KS-2E
4 7897004000 BASE F/PEDAL ASSY KE-2E-LA
K1138111 BASE FOR PEDAL (MDF) KS-147E
5 7897003000 FOOT F/SIDE PANEL (STAND) KS-2E-LA
K2358102 SIDE PANEL FOOT
6 J3059116 3-NOTE PEDAL KS-237E/147E
7 J2329107 JOINT BOLT ASSY
8 K2128129 COUPLING BASE KS-237LE
9 K3418105 CABLE F/PEDAL (84) KS137/237/147
A
J2289208 SCREW 3.5X25 TC PR TFR H.8 BRUN
B K2288109 SCREW 3.9X30 TC PR TFR T.8 BRUN
C J2289248 SCREW M6X30 TC PHILIPS TBL (for KS-2E-LA)
J2289247 SCREW M6X30 TC PHILIPS TBL (for KS-2E-RW)
D J2289248 SCREW 4.5X45 TC PR TFR T. 9.5
D
4
6
9
7
5
5
B
D
Circuit Diagram 3-Note Pedal
3-Note Pedal Exploded View & Parts List
ASSY J3059116
