View from components side.

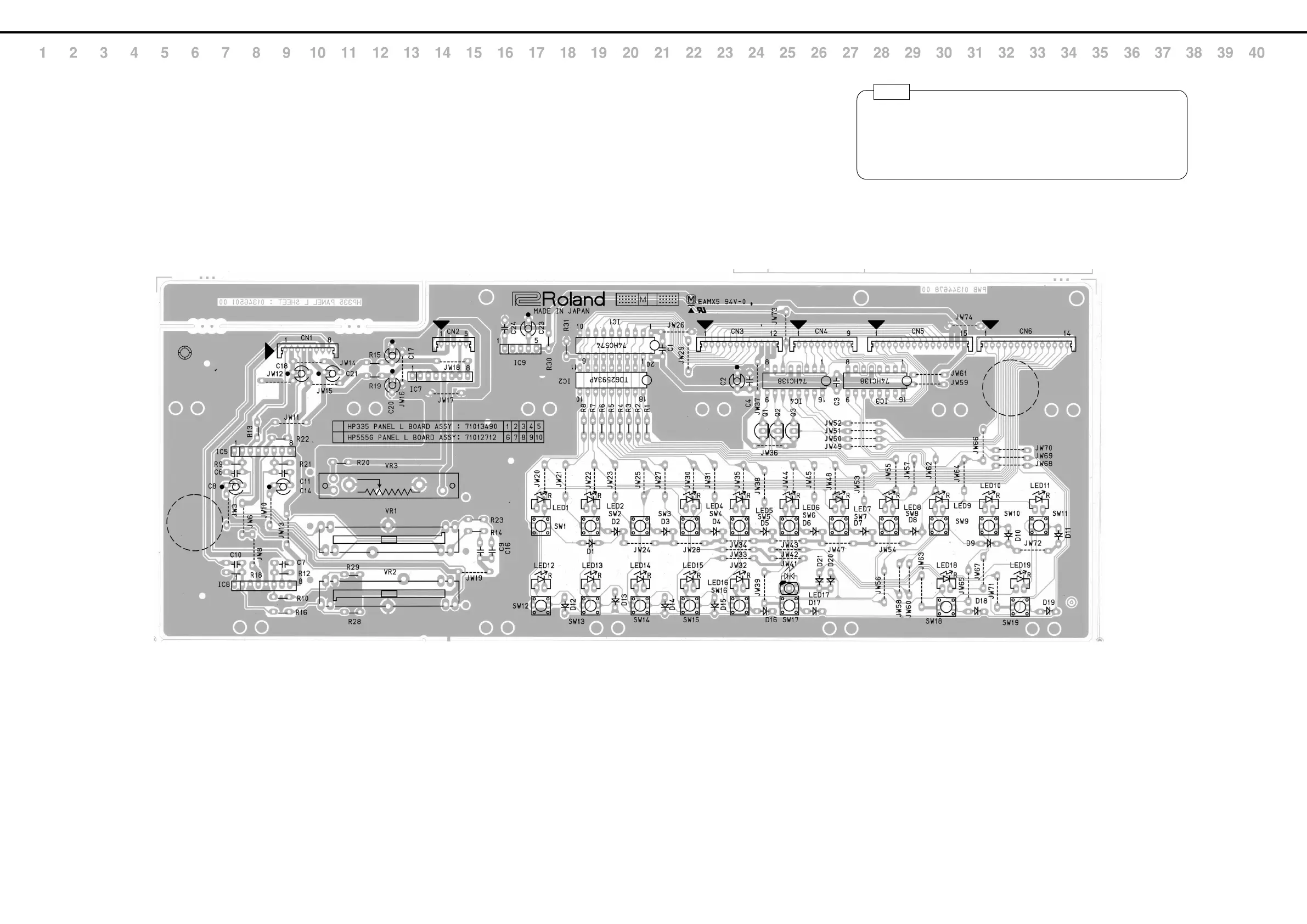

CIRCUIT BOARD (PANEL L)
71013490 PANEL L BOARD ASSY
NOTE
PANEL L BOARD ASSY includes the following parts.
01450023 WIRING 9X350-P2.0-51065-51015-F on PLB
01450034 WIRING 12X400-P2.0-51065-51015-F on PLB
01450045 WIRING 8X400-P2.0-51065-51015-F on PLB
