Nov. 1998
22
HP-335
NOTE
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V

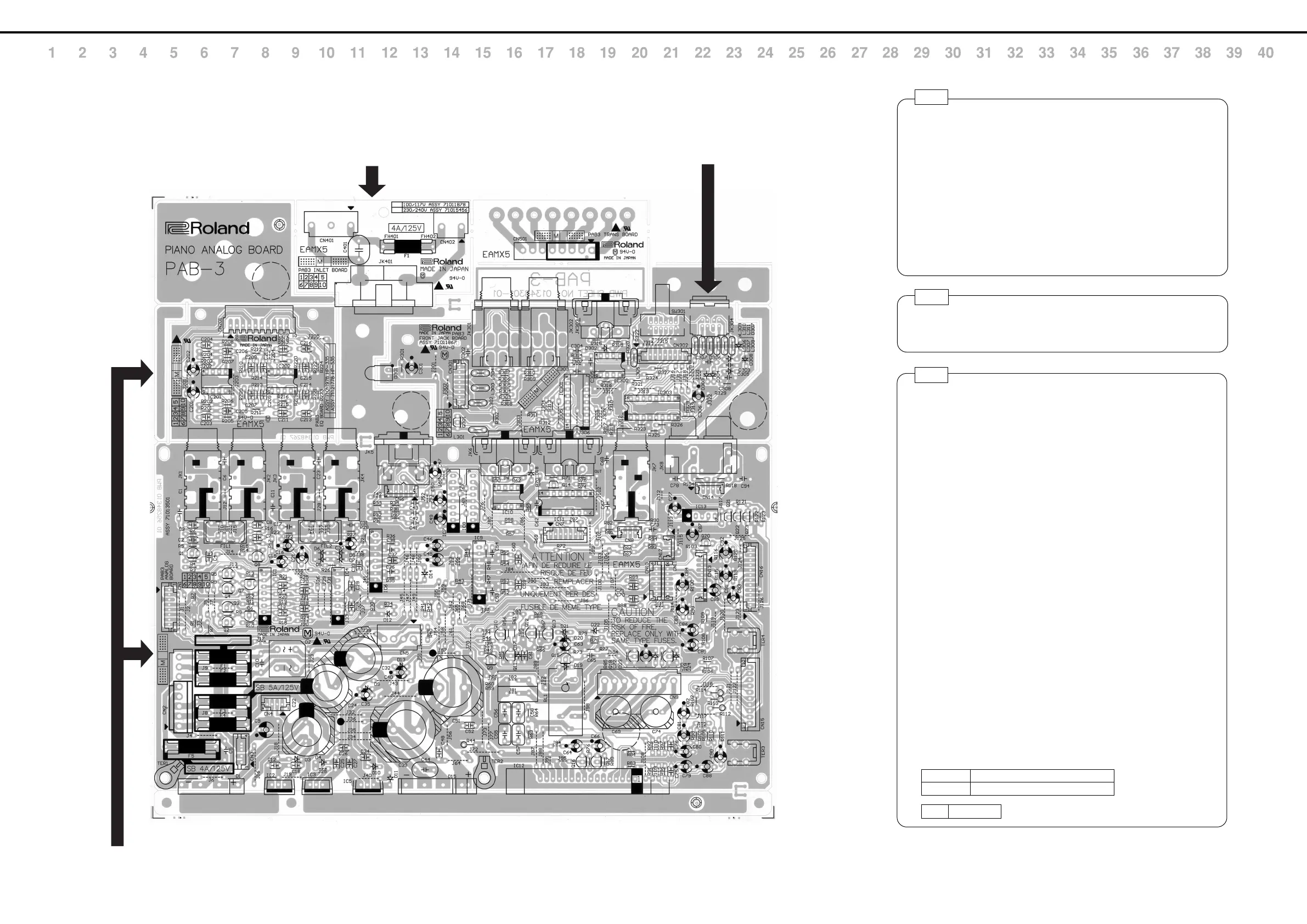

CIRCUIT BOARD (FRONT JACK, ANALOG ,INLET)
PAB3 ANALOG PHANTOM includes the following PWBs.
******** PAB3 EQ BOARD
******** PAB3 ANALOG BOARD
NOTE:PAB3 ANALOG BOARD includes the following partts.
22195975 TR HOLDER
22195973 POWER AMP HOLDER
01349990 WIRING W4
01349978 7x250-P2.0-PH-SAN-F
01349912 12x130-P2.0-PH-SAN-F
01346423 HEATSINK
01346412 PAB HOLDER
PAB3 FRONT JACK BOARD includes the following parts.
01344545 JACK HOLDER
PAB3 INLET 100/117V includes the following parts.
23425740 AC INLET INL-8 10A/125V 2P PO
12559444 FUSE 5x20 SB 4 4A/125V
00129367 INLET HOLDER
NOTE
NOTE
Replacemant INLET BOARD ""PAB3 INLET ASSY"" is for 100/117V version
exclusive use.
When using ""PAB3 INLET ASSY"" for 230/240V version, be sure to make the
following modifications.
1. INLET BOARD FOR 100/117V version differs from 230V version in FUSE system.
Replace fuse(F1 on INLET BOARD) to specific one.(#12559550 FUSE 5x20 S506
1.6A T1.6AL250V for 230V version)See TABLE A.
2. For safety standards, place fuse seal (#40013712 FUSE SEAL T1.6AL250V #407) at
the proper place of the INLET BOARD.
The location of fuse seal is over the following printing (see fig A) of the PWB.
When necessary, please order fuse seal separatery from INLET BOARD.
TABLE A
100V/117V FUSE 5x20 SB 4 4A/125V
230V/240V FUSE 5X20 S506 1.6A T1.6AL250V
Fig.A 3.15A/125V
71011878 PAB3 INLET 100/117V 71011867 FRONT JACK BOARD
71011856 PAB3 ANALOG PHANTOM
View from components side.
To Next Page
