Nov. 1998
8
HP-335
6
2
3
8
1
7
4
11
11
11
11
2
10
5
9
PARTS LIST
No. Parts No. Description
q 71018623 PEDAL CENTER ASSY
w 00904190 PEDAL CHASSIS
e 00908023 FELT L
r 00904223 COILED SPRING
t 40011334 3×12mm Binding Head P-TITE Fe BZC
y 00908034 6×35mm JOINT BOLT
u 00677978 6×12mm JOINT NUT
i 71018601 CONNECT CORD
o 00907045 PEDAL CABLE
!0 22285396 ADJUST BOLT
!1 40011278 3×8mm Binding Head P-TITE Fe ZC
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
CONNECT BOARD PARTS LIST
15229728 GP2S24B PHOTO INTERRUPTER
15119112 2SA1015Y TRANSISTOR
13299199 EVND8AA03B13 TRIMMER

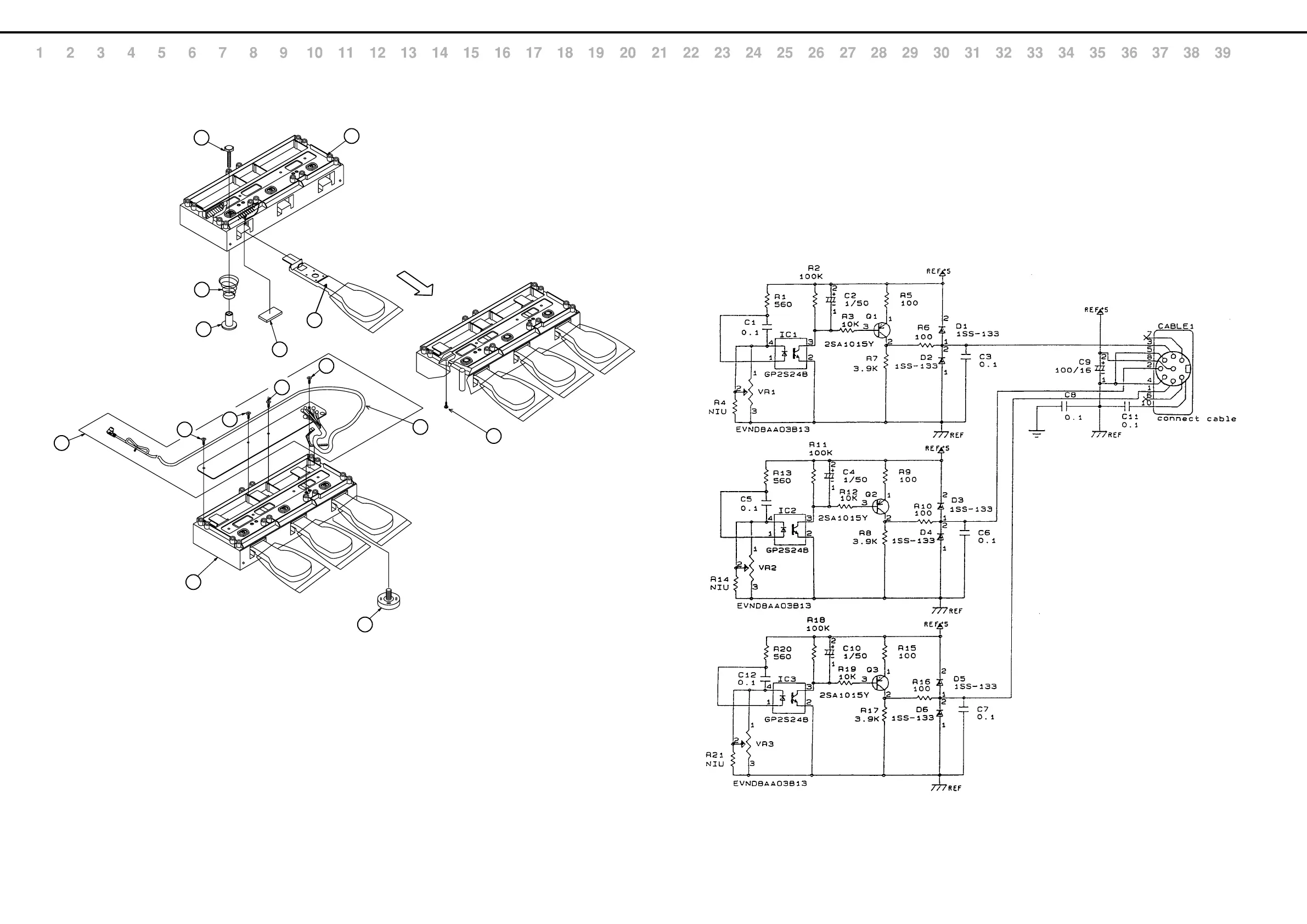

CONNECT BOARD CIRCUIT DIAGRAM
PEDAL UNIT EXPLODED VIEW
To Next Page
