Nov. 1998
24
HP-335

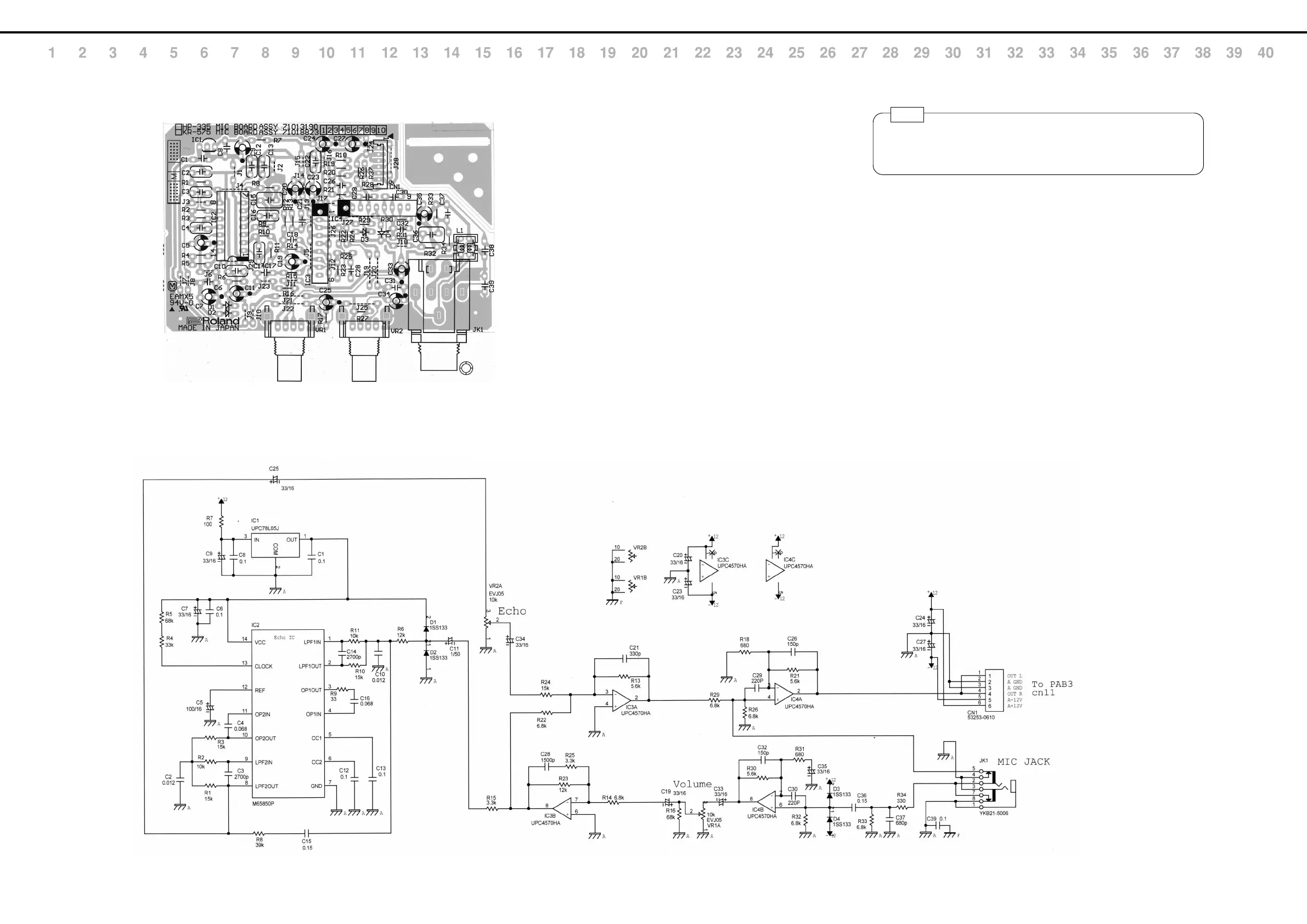

CIRCUIT DIAGRAM (MIC)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
CIRCUIT BOARD (MIC)
71011901 MIC BOARD ASSY
NOTE
MIC BOARD ASSY includes the following parts.
# 01344489 MIC HOLDER
View from components side.
