Roland JUNO-X User Manual

7

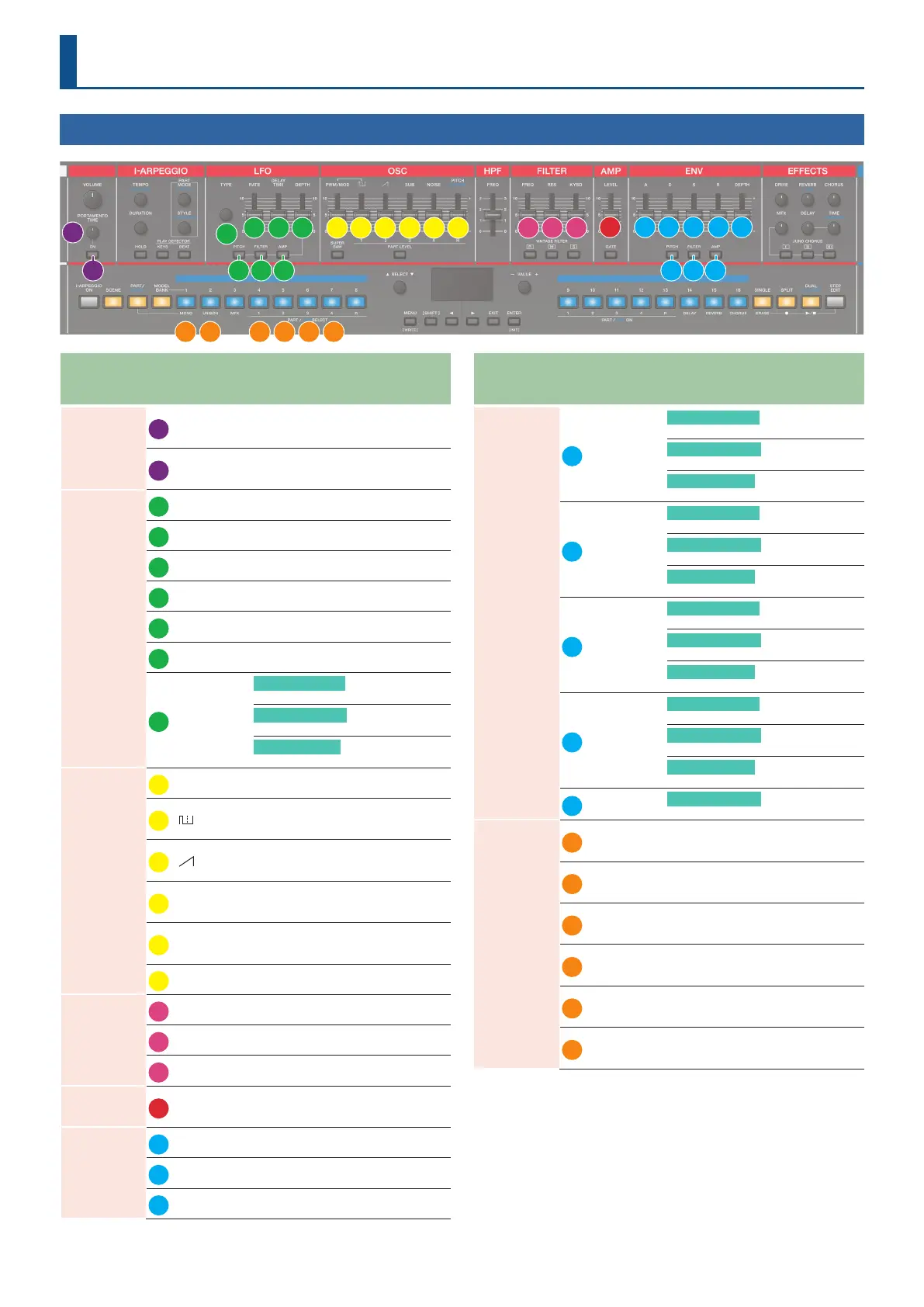

Controls on the JUNO-X and Their Associated Parameters
6
7
1
2
11 13 15 14 10 18
19
12 8 9 16 17
27
28 29
23 24 25 26
3 4 5 20 21 22
30 31 32 33
Parameter Guide
Section Controller Parameter
Destination or
operation when
used with the
[SHIFT] button
PORTAMENTO
1
ON Porta Switch
JD-800 TONE
COMMON EDIT:
Porta Switch
2
TIME Porta Time
JD-800 TONE
COMMON EDIT:
Porta Time
LFO
3
PITCH Select PITCH LFO (*1) -
4
FILTER Select FILTER LFO (*1) -
5
AMP Select AMP LFO (*1) -
6
TYPE LFO1: Waveform
JD-800 TONE EDIT:
LFO1: Waveform
7
RATE LFO1: Rate
JD-800 TONE EDIT:
LFO1: Rate
8
DELAY TIME LFO1: Fade time
JD-800 TONE EDIT:
LFO1: Fade time
9
DEPTH
If “PITCH LFO” is selectedIf “PITCH LFO” is selected
WG: LFO1 depth
JD-800 TONE EDIT:
WG: LFO1 depth
If “FILTER LFO” is selectedIf “FILTER LFO” is selected
TVF: LFO depth
JD-800 TONE EDIT:
TVF: LFO depth
If “AMP LFO” is selectedIf “AMP LFO” is selected
TVA: LFO depth
JD-800 TONE EDIT:
TVA: LFO depth
OSC
10
PWM/MOD WG: Pitch ne
JD-800 TONE EDIT:
WG: Pitch ne
11
PARTIAL1 TVA: Level
JD-800 TONE EDIT
PARTIAL1:
TVA: Level
12
PARTIAL2 TVA: Level
JD-800 TONE EDIT
PARTIAL2:
TVA: Level
13
SUB PARTIAL3 TVA: Level
JD-800 TONE EDIT
PARTIAL3:
TVA: Level
14
NOISE PARTIAL4 TVA: Level
JD-800 TONE EDIT
PARTIAL4:
TVA: Level
15
PITCH WG: Pitch coarse
JD-800 TONE EDIT:
WG: Pitch coarse
FILTER
16
FREQ TVF: Cuto freq
JD-800 TONE EDIT:
TVF: Cuto freq
17
RES TVF: Resonance
JD-800 TONE EDIT:
TVF: Resonance
18
KYBD TVF: Cuto KF
JD-800 TONE EDIT:
TVF: Cuto KF
AMP
19
LEVEL Level
JD-800 TONE
COMMON EDIT:
Level
ENV
20
PITCH Select PITCH ENV (*2) -
21
FILTER
Select FILTER ENV
(*2)
-
22
AMP Select AMP ENV (*2) -
Section Controller Parameter
Destination or
operation when
used with the
[SHIFT] button
ENV
23
A
If “PITCH ENV” is selectedIf “PITCH ENV” is selected
P-ENV: Time 1
JD-800 TONE EDIT:
P-ENV: Time 1
If “FILTER ENV” is selectedIf “FILTER ENV” is selected
F-ENV: Time 1
JD-800 TONE EDIT:
F-ENV: Time 1
If “AMP ENV” is selectedIf “AMP ENV” is selected
A-ENV: Time 1
JD-800 TONE EDIT:
A-ENV: Time 1
24
D
If “PITCH ENV” is selectedIf “PITCH ENV” is selected
P-ENV: Time 2
JD-800 TONE EDIT:
P-ENV: Time 2
If “FILTER ENV” is selectedIf “FILTER ENV” is selected
F-ENV: Time 3
JD-800 TONE EDIT:
F-ENV: Time 3
If “AMP ENV” is selectedIf “AMP ENV” is selected
A-ENV: Time 3
JD-800 TONE EDIT:
A-ENV: Time 3
25
S
If “PITCH ENV” is selectedIf “PITCH ENV” is selected
P-ENV: Level 1
JD-800 TONE EDIT:
P-ENV: Level 1
If “FILTER ENV” is selectedIf “FILTER ENV” is selected
F-ENV: Sus level
JD-800 TONE EDIT:
F-ENV: Sus level
If “AMP ENV” is selectedIf “AMP ENV” is selected
A-ENV: Sus level
JD-800 TONE EDIT:
A-ENV: Sus level
26
R
If “PITCH ENV” is selectedIf “PITCH ENV” is selected
P-ENV: Time 3
JD-800 TONE EDIT:
P-ENV: Time 3
If “FILTER ENV” is selectedIf “FILTER ENV” is selected
F-ENV: Time 4
JD-800 TONE EDIT:
F-ENV: Time 4
If “AMP ENV” is selectedIf “AMP ENV” is selected
A-ENV: Time 4
JD-800 TONE EDIT:
A-ENV: Time 4
27
DEPTH
If “FILTER ENV” is selectedIf “FILTER ENV” is selected
TVF: ENV depth
JD-800 TONE EDIT:
TVF: ENV depth
PART/FUNC
28
MONO Select SOLO
JD-800 TONE
COMMON EDIT:
Solo switch
29
UNISON Select UNISON
JD-800 TONE
COMMON EDIT:
Unison
30
OSC1 SELECT Select PARTIAL1 (*3)
TONE EDIT
PARTIAL1:
Active switch
31
OSC2 SELECT Select PARTIAL2 (*3)
TONE EDIT
PARTIAL2:
Active switch
32
OSC3 SELECT Select PARTIAL3 (*3)
TONE EDIT
PARTIAL3:
Active switch
33
OSC4 SELECT Select PARTIAL4 (*3)
TONE EDIT
PARTIAL4:
Active switch
(*1): The priority order for LFO type is PITCH > FILTER > AMP.
(*2): The priority order for ENV type is AMP > PITCH > FILTER.
(*3): Only enabled in “FUNC” mode.
* For other parameters, see the “JUNO-X Parameter Guide” (PDF).
* The JD-800 Model Expansion parameters are located in TONE EDIT.

Roland JUNO-X Specifications

Keyboard Specifications

keyboard keys	61 keys
preset tone	4000 or greater
user tone	256

Effects and Sound Generators

multi-effects systems	4 systems
multi-effects types	93 types
reverb types	8 types

Bluetooth and Display

bluetooth profile support	A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
codec	SBC (Support to the content protection of the SCMS-T method)
display resolution	128 x 64 dots

Speakers and Amplifiers

speaker amplifier power	4W x 2
full range speakers	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Connectors and Ports

headphones jack	Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
main out jacks	1/4-inch phone type, XLR type
mic input jack	1/4 inch phone type/XLR type

Weight and Dimensions

dimensions	1072 (W) x 333 (D) x 118 (H) mm
weight	11.6 kg
power consumption	20 W
